5 / HANDLING AND UNPACKING
This machine is packaged in a crate containing:
-1 Right extension arm with rebate measuring system
-1 Fixed stop
-1 Retractable stop
-1 Left extension arm
-1 Accessories box containing:
-1 S/A blades dismounting tool(Z18303)
-1 10-mm Allen key (to remove blades)
-1 6-mm Allen key (to assembly tables)
-1 5-mm Allen key
-1 4-mm Allen key
-1 2.5-mm Allen key
-1 Allen key for sensor
-1 Quick-fit coupling ¼ (fitted on the machine) / 1 quick-fit coupling
-1 Fuse: 1.25 Amp aM - (2 Amp aM ) glass fuse:1,25 A 5 x20.
-1 Male US connector M ¼ TEFLONE-Z701
-1 Groove connector M ¼ Cyl. -Z556

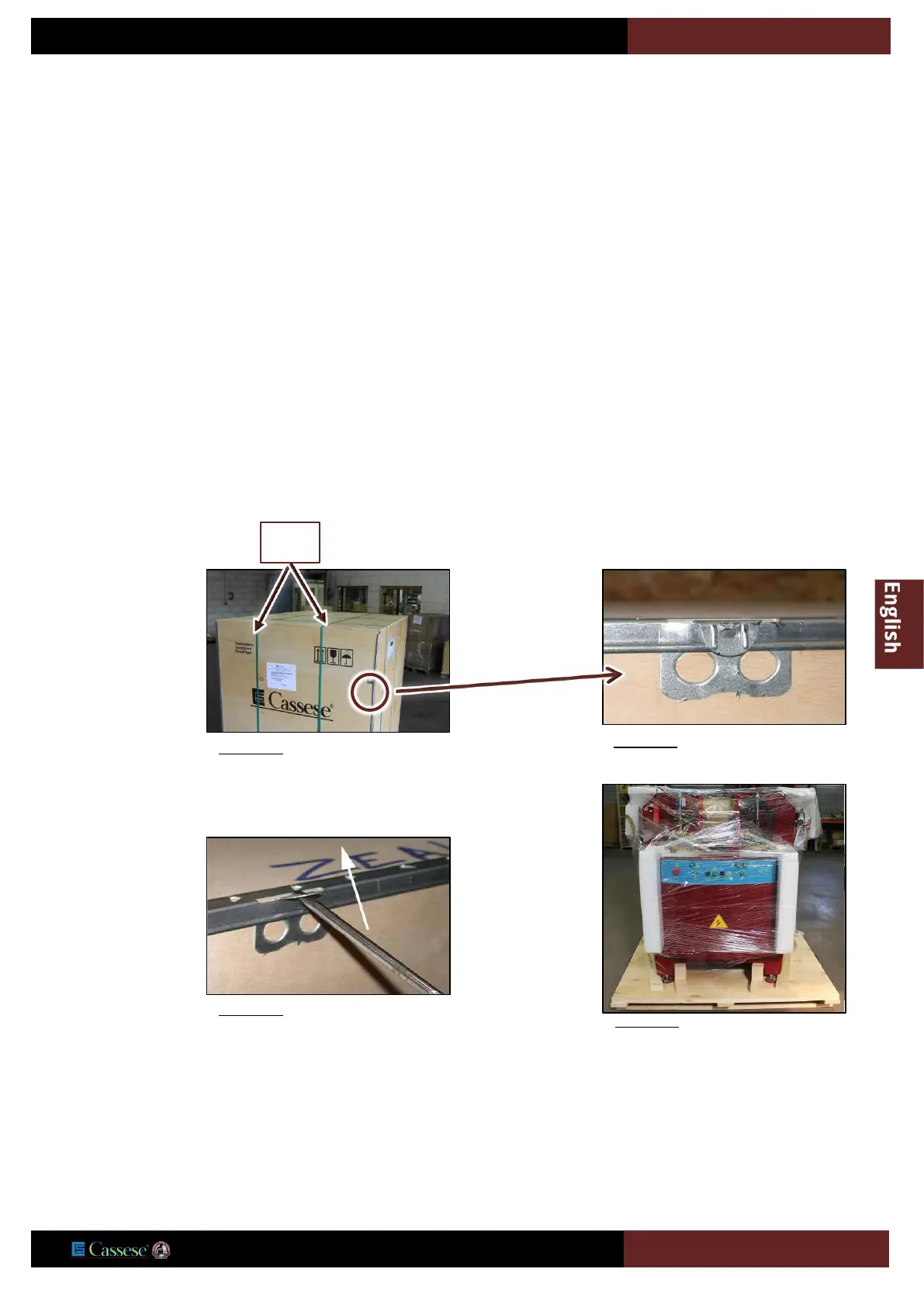

Using scissors, cut
the straps rep: C
which belt the crate
C
Figure 5-1
Figure 5-2
Using a screwdriver
open the fasteners
on the crate
Figure 5-3
then remove the
cover and its 4
sides.
Figure 5-4
