For handling, a lift truck with forks at least 115 cm long must be used.
The forks must be positioned correctly below the frame: see next figure.
Gross weight of the machine: 725 kg
Remove the table
extension arms
(behind the
machine)

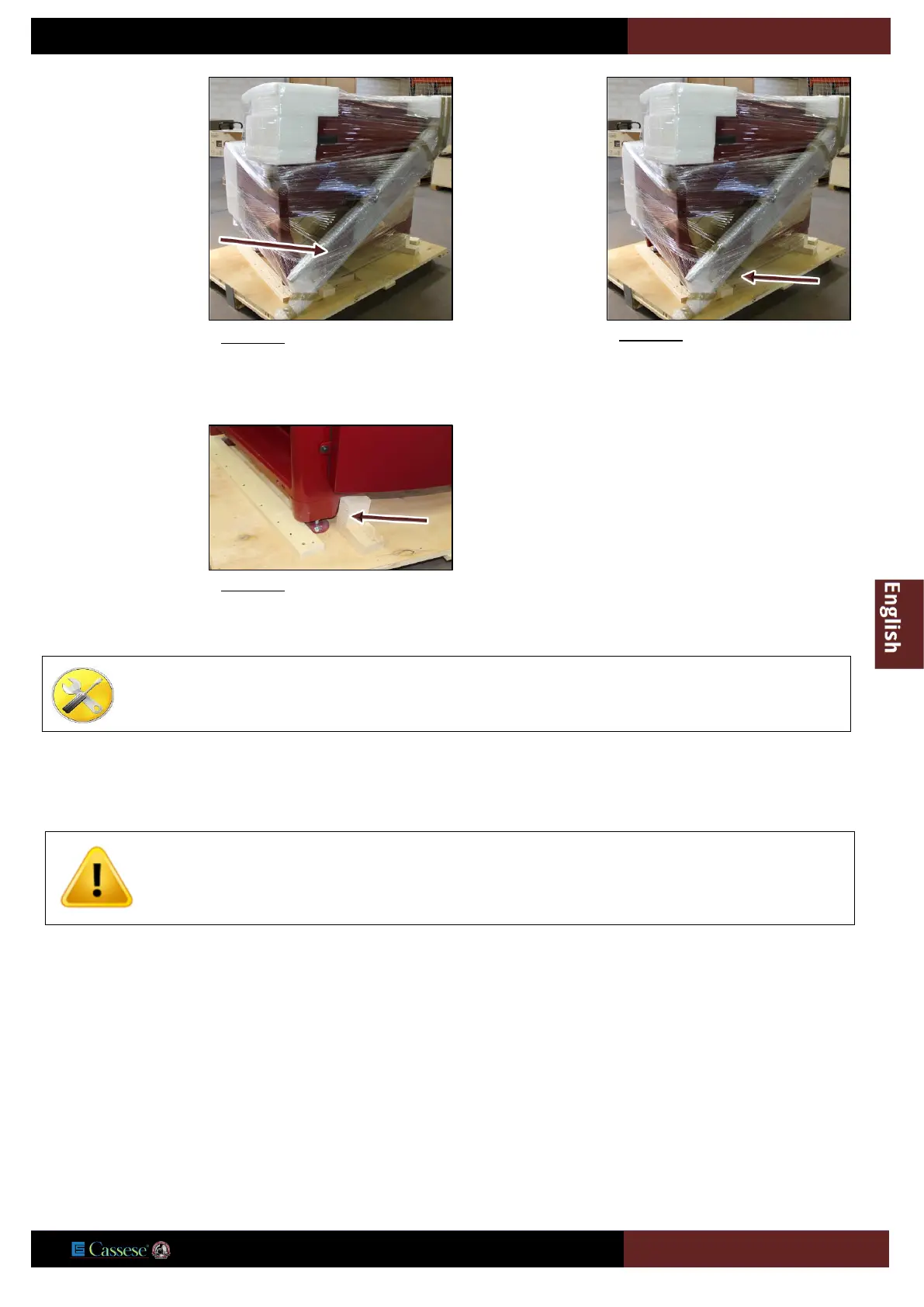

Figure 5-5
Remove the
accessories box
(below the
machine)
Figure 5-6
Remove the
wooden hold from
the feet of the
machine.
Figure 5-7
Screwdriver
Scissors
CAUTION: Setting the forks spacing for moving pallet to the floor:
Front panel = 675 mm - side: 530 mm.
Then set the forks spacing for the remaining movement (see drawing below).
Position of the forks: equidistant from the frame axis. (see drawing below)
