Cassese CS969 - Left and Right Arm Mounting

USER MANUAL
CS969
22

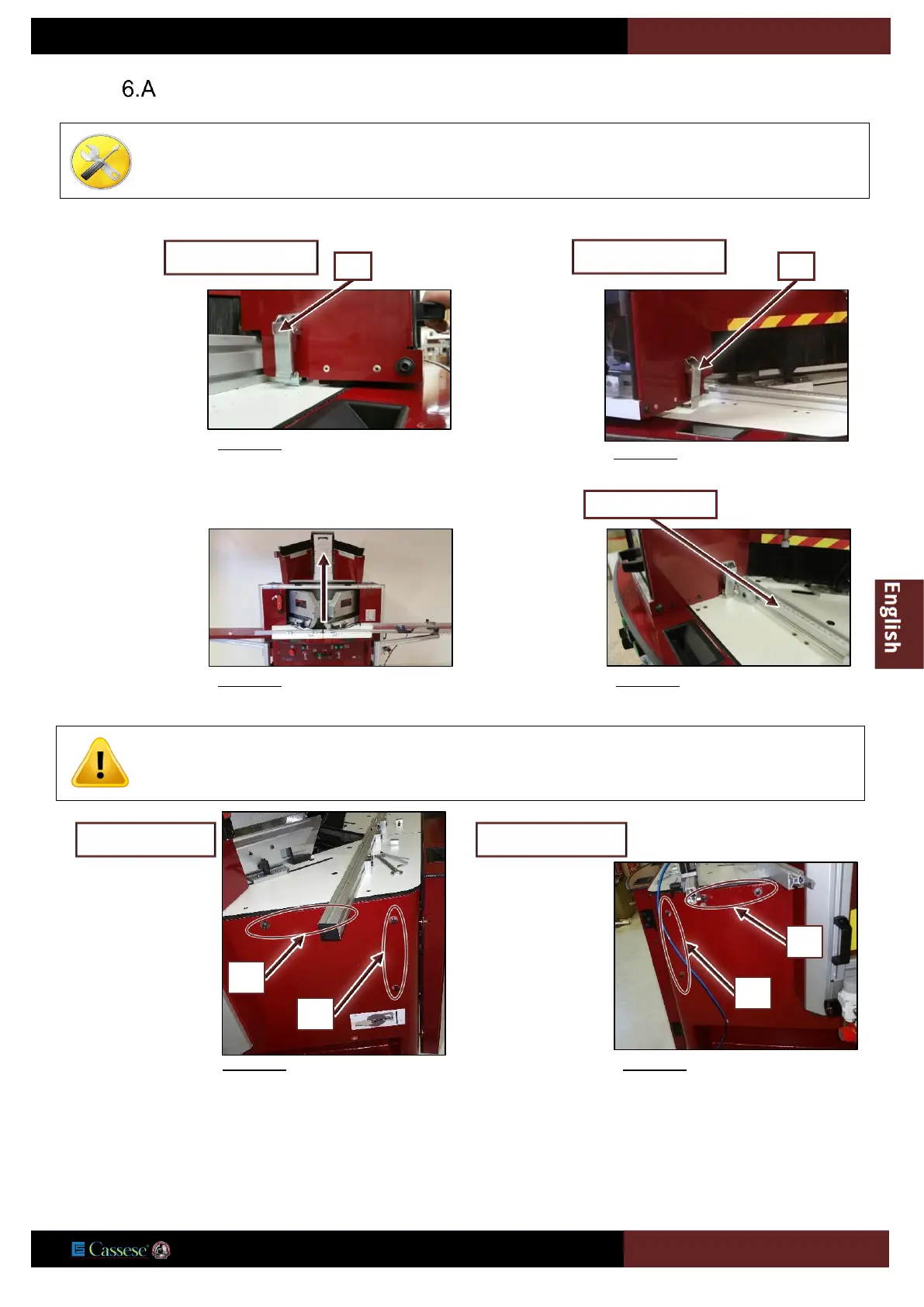

LEFT AND RIGHT ARM MOUNTING
5-mm Allen key
4-mm Allen key
Open-end spanner 10
Release the left
spring clips, SG.
Figure 6-2
SG
Left table side
Release the right
spring clips, SD
Figure 6-3
Right table side
SD
Open the main case
to its highest
position.
Figure 6-4
Figure 6-5
Moulding guide
Do not untighten screws of the moulding guide (factory setting)
Remove screws A
and B
on the left
side of the machine
frame with a 5-mm
Allen key.
Figure 6-6
Left table side
A
B
Remove screws C
and D
on the right
side of the machine
frame with a 5-mm
Allen key.
Figure 6-7
Right table side
C
D
