Cassese CS969 - A.D Closing the Main Case

USER MANUAL
CS969
37

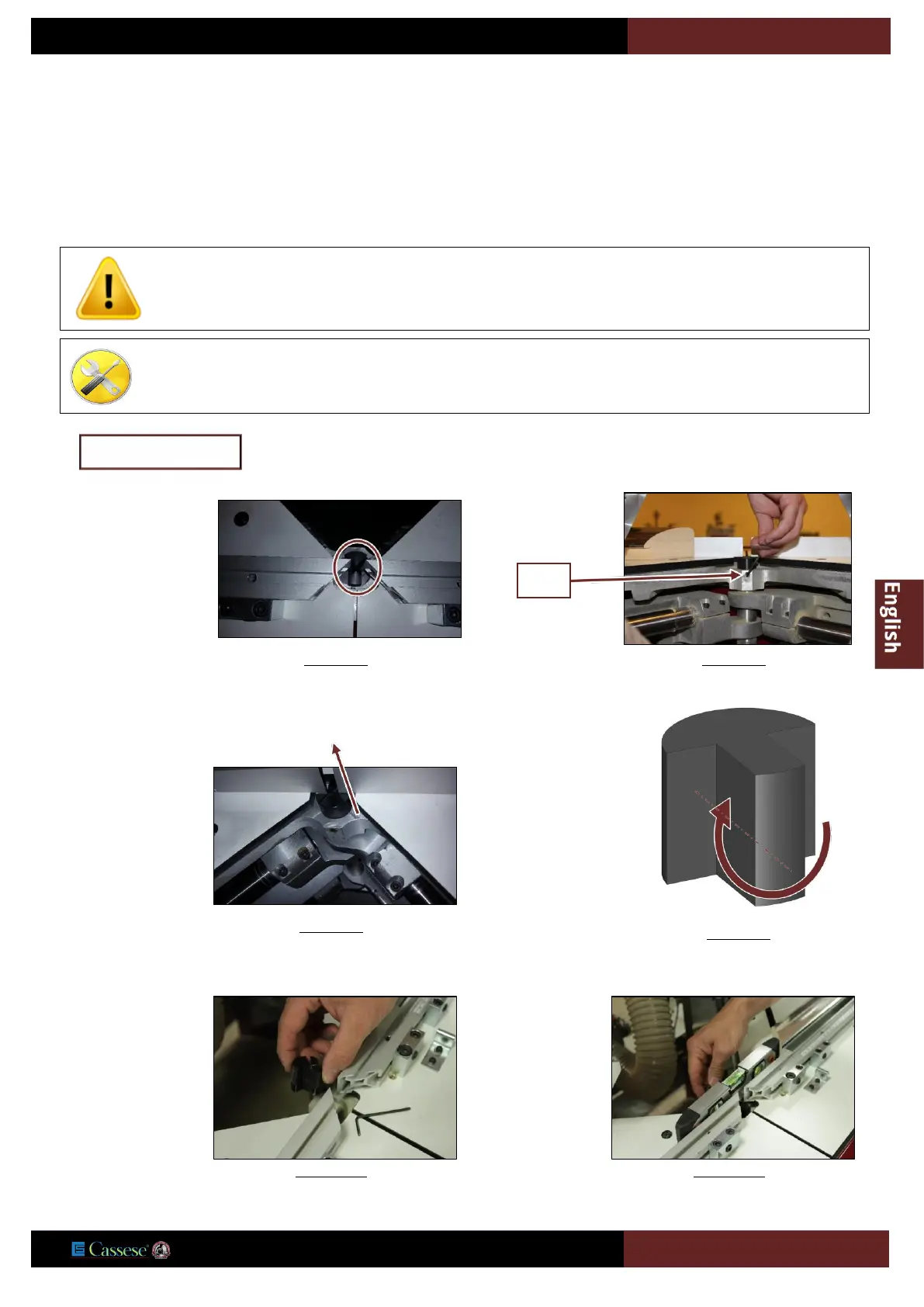

8.A.d Closing the main case
Close the main case to its lowest position.
Engage the snap and lower the locking levers of SD and SG.
Then, remove the padlocks from the main switch 16 and the valve 14 (page: 25), reset the main switch 16 and turn the red button
on the valve 14. Lock the cover by putting the key on machine ready
8.A.e Replacing the martyr cube
For all maintenance, adjustment or repair operations, prevent unintentional operation of electrical and
pneumatic circuits on the machine by padlocking the main isolating switch
16 and the valve 14 (page 11).
Allen key 2
Open the main case
(see page 35)
Figure 8-6
Inside the machine
Unscrew the screw
V1
with Allen key 2
Figure 8-7
Remove the used
martyr cube by
pulling it verticaly
Figure 8-8
Turn the martyr
cube of 180°
Figure 8-9
Put it back in its
housing and fix it
with the screw V1
Figure 8-10
Check the good
level with the table
Figure 8-11
V1
