Cassese CS969 - Accessing the Electrical Cabinet

USER MANUAL
CS969
38
Close the main case (see page 37 ).
The replacement operation is completed.

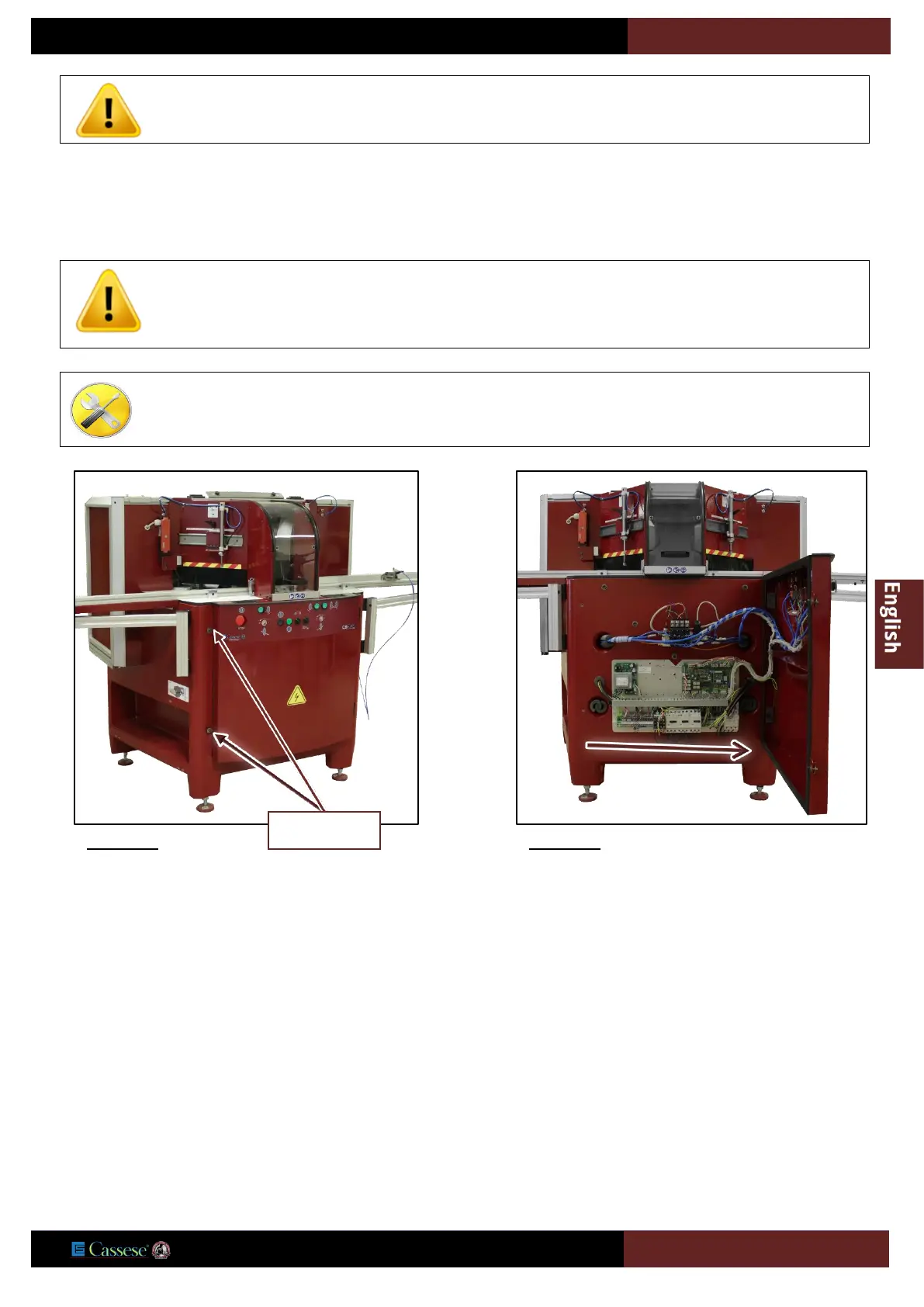

8.A.f Opening the electrical cabinet block
Unscrew the captive screws V1 and V2 with the Alen key 5, then rotate the cabinet door towards you.
When the main case is open, motor start-up and blade movement are disabled by the safety unit.
For all maintenance, adjustment or repair operations, prevent unintentional operation of electrical and pneumatic
circuits on the machine by padlocking the main isolating switch
16 and the valve 14 (page: 11).
Allen key 5
V1 & V2
Figure 8-12
Figure 8-13
