CAVRO XP 3000 - B MOVE VALVE TO BYPASS (THROUGHPUT POSITION); E MOVE VALVE TO EXTRA POSITION (3-PORT DISTRIBUTION VALVE ONLY)

Software Communication 3-32

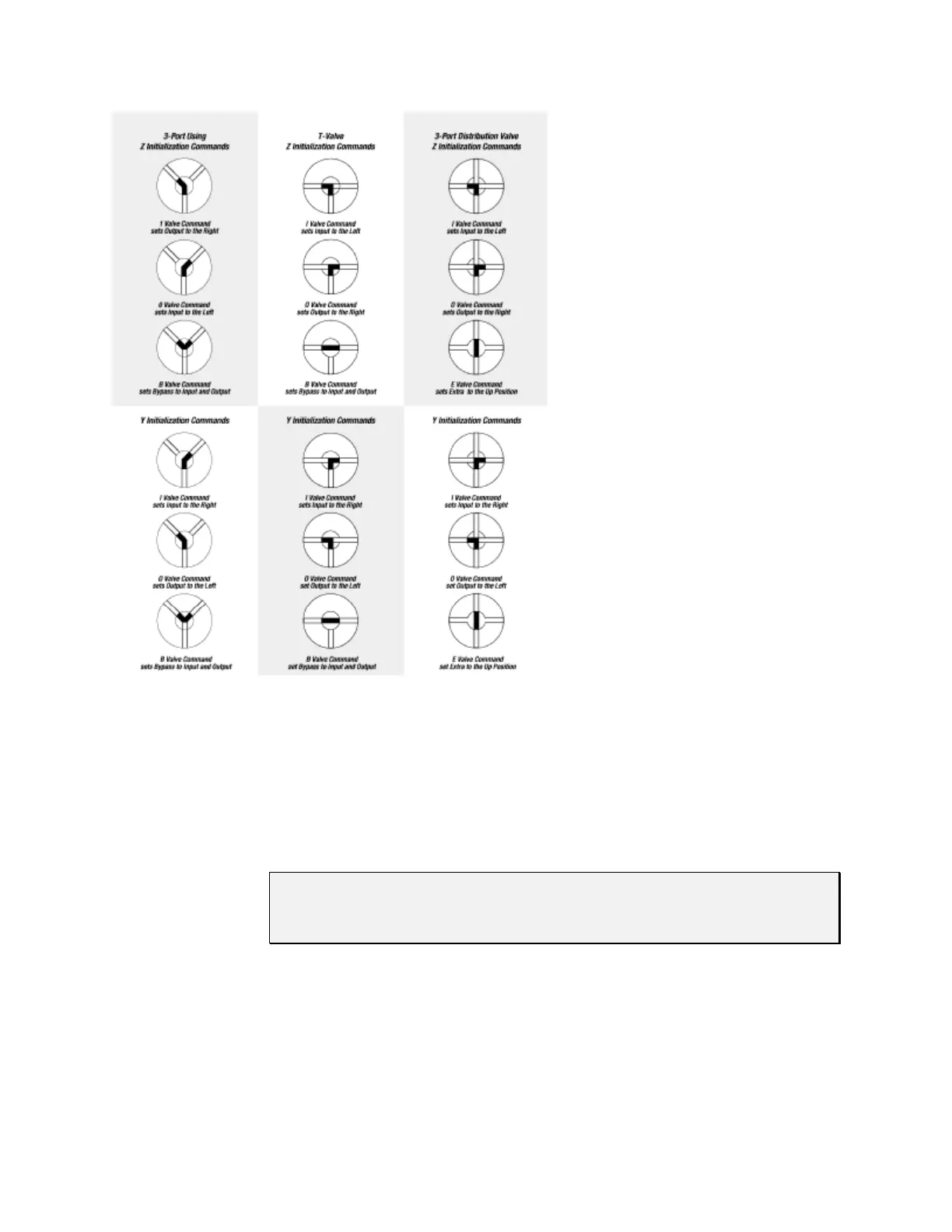

Figure 3-1. Valve Positions for all Valve Types
B MOVE VALVE TO BYPASS (THROUGHPUT POSITION)
The [B] command connects the input and output positions, bypassing the syringe.
CAUTION! When the valve is in this position, do not move the syringe plunger.
Sending a Plunger Movement command causes an error 11 (plunger
move not allowed).
E MOVE VALVE TO EXTRA POSITION (3-PORT DISTRIBUTION VALVE ONLY)
The [E] command moves the valve on the XP 3000 to the extra position (port) relative to
the [Y] and [Z] commands.
