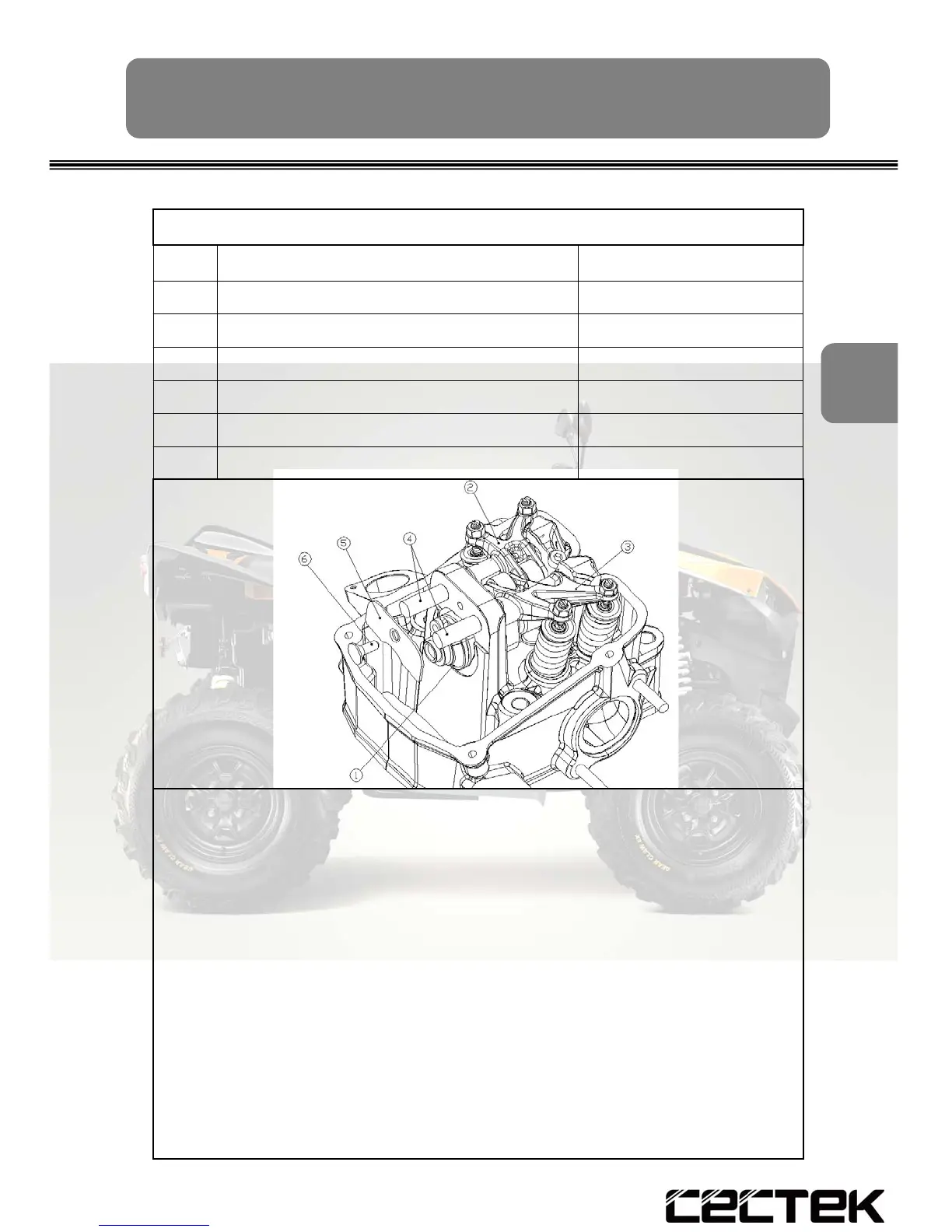

THE CYLINDER HEAD ASSEMBLY
N0. PART NAME PART NO.
1. CAM SHAFT 40070068
2. ROCKER ARM ASSY. (INTAKE) 40078016
3. ROCKER ARM ASSY. (EXHAUST) 40078017
4. SHAFT 40070063
5.
PLATE 40070065
6. FLAT HEAD SCREW SCF060160883
Please clean up correlative parts and lubricate with 10W/40 oil
1.Install cam (1) through cam bore
2.Install intake rocker (2) on the cam shaft , the rocker face
toward intake side.
3.Install exhaust rocker (3) on the cam shaft , the rocker face
toward exhaust side.
4.Install shaft rocker assy (4) x2 through intake rocker (2) and
exhaust rocker (3)
5.Install the screw (6) through plate (5) and tighten to 9Nm ,
attention for the bottom of plate shall be clipped onto the
groove of cam shaft.
6.Adjust the intake/exhaust valve gap to 0.3 mm.
