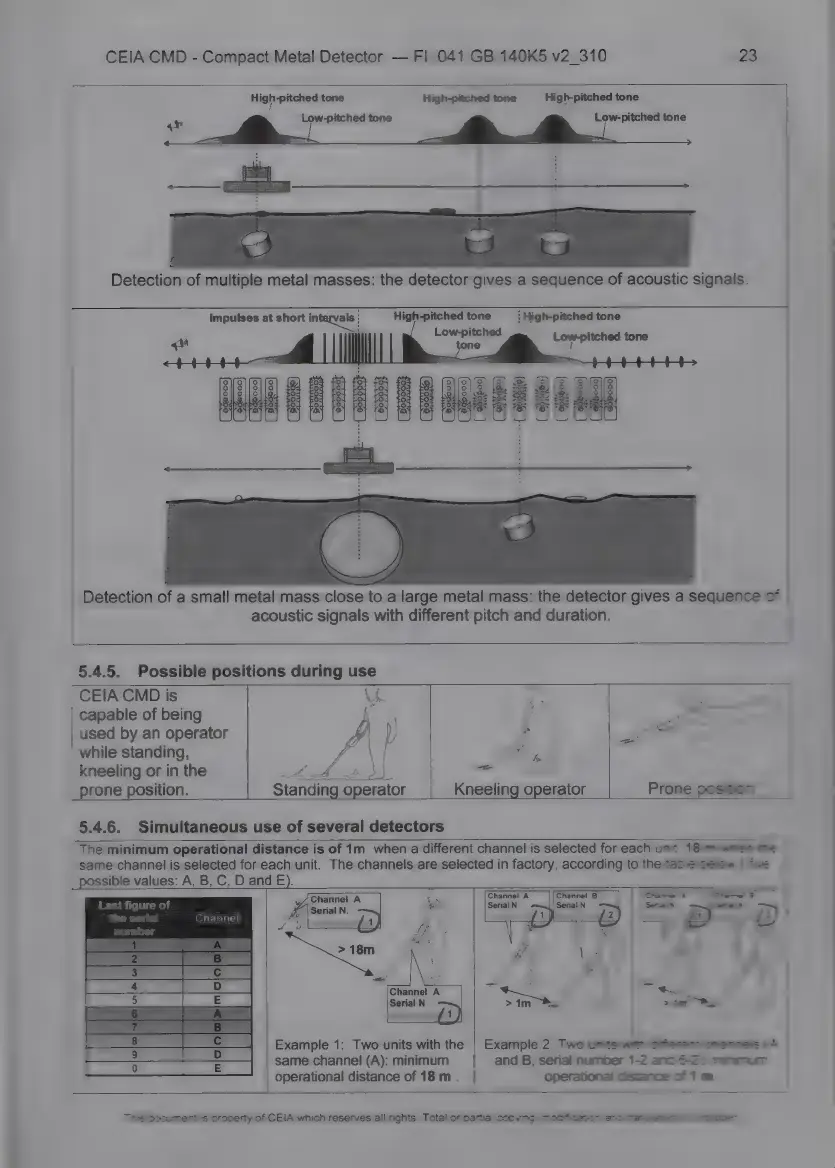

CEIA CMD - Compact Metal Detector -- Fl 041 GB 140K5 v2 310 23
High-pitched tone High-pitched tone High-pitched tone
Low-pitched tone Low-pitched tone
Detection of multiple metal masses: the detector gives a sequence of acoustic signals.
High-pitched tone i High-pitched tone
— i Low-pitched tone
Troe
impulses at short intervals
E
Detection of a small metal mass close to a large metal mass: the detector gives a sequence of
acoustic signals with different pitch and duration.
5.4.5. Possible positions during use
CEIA CMD is SN
| capable of being ЖА
| used by an operator 2 y
while standing, F т
kneeling or in the raw өттің
prone position. Standing operator
5.4.6. Simultaneous use of several detectors
The minimum operational distance is of 1m when a different channel is selected for each unit, 18 m when He
same channel is selected for each unit. The channels are selected in factory, according to the table бей { ve
possible values: A, B, C, D and E).
e of
Channel
Example 1: Two units with the | Example 2: Two units with ШТес-ет cannes (А
same channel (A): minimum and B, serial number 1-2 anc 62) minimum
operational distance of 18 m . operational diszance of 1 m.
