CEM MARS 6 User Manual

28

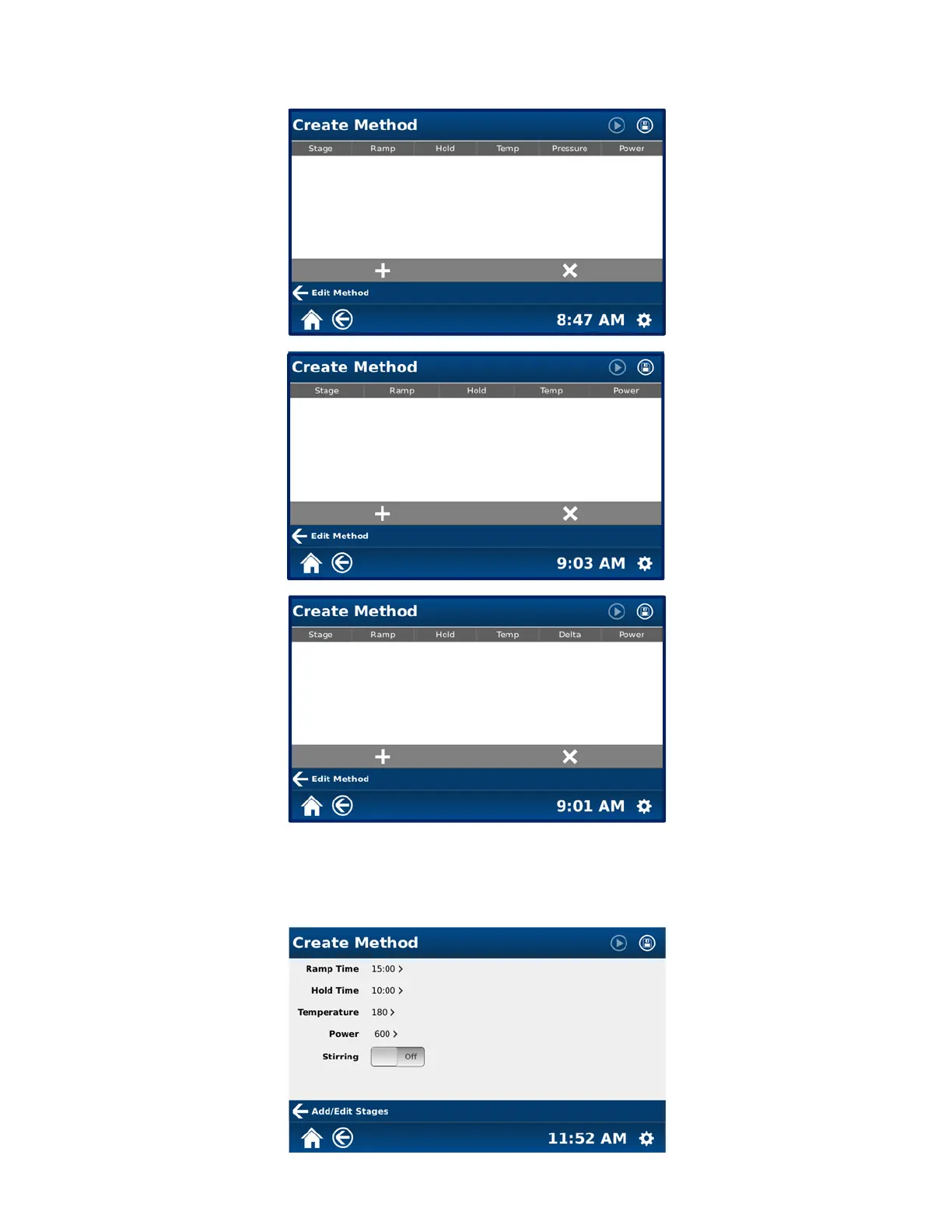

15. Select “Add/Edit Stages” to enter method parameters based on the control type selected for the method as
illustrated in the screens below.
Note: If Evaporation is selected as the control mechanism, the Pressure column will be replaced by a programmable
temperature delta as illustrated in the above screen. Refer to the MicroVap Instructions for additional information.
16. Select “+” to add a stage to the method.

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
