CENTURION SYSTEMS D5 SMART - Endstops; Guide-rollers and Anti-lift Brackets

page 14 www.centsys.com
5.2. Endstops
5.3. Guide-rollers and Anti-lift Brackets
Fit opening and closing endstops capable of stopping the gate at rated speed. Refer to
thespecicationsatthebeginningofthismanualfortheoperatingspeed.
Make H1>H2 to ensure gate will not jump over the endstop.
Guide-rollers must be installed to ensure that the gate is held vertical. For improved
safety,tadditionalsupportpoststopreventthegatefromfallingovershouldthe
guide-rollers fail.
Topreventunauthorisedaccess,tanti-liftbracketsasshown.
The gap between the anti-lift bracket and the gate must be less than 5mm.

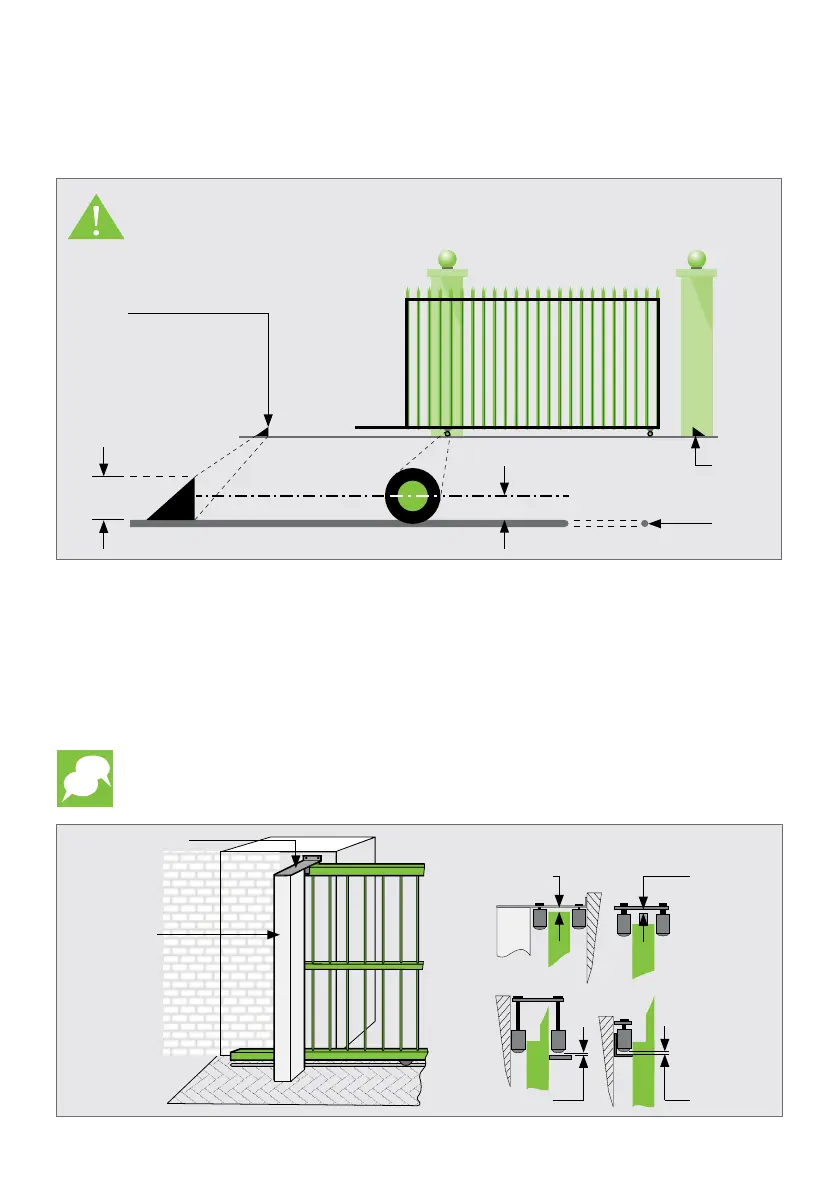

FIGURE 4. FITTING ENDSTOPS
FIGURE 5. FITTING GUIDE-ROLLERS
Opening and closing endstops are mandatory and must be tted to
prevent death or accidental injury as the operator uses and conrms
these limits during operation.
Endstop
Endstop
Ø16mm
H1
H2
Ensurethatthegatecannotbeliftedothemotorpinionwiththeanti-lift
brackettted.
GAP <5mm
GAP <5mmGAP <5mm
GAP <5mm
Additional
support post
Guide-rollers and
Anti-Lift Bracket
Side view of gate and dierent
Guide-roller options
NEW SITE INSTALLATION PREPARATIONSECTION 5
