CENTURION SYSTEMS D5 SMART - Closing Infrared Beam Wiring (Photon Infrared Beams)

page 49 www.centsys.com
COMPLETING THE INSTALLATIONSECTION 8

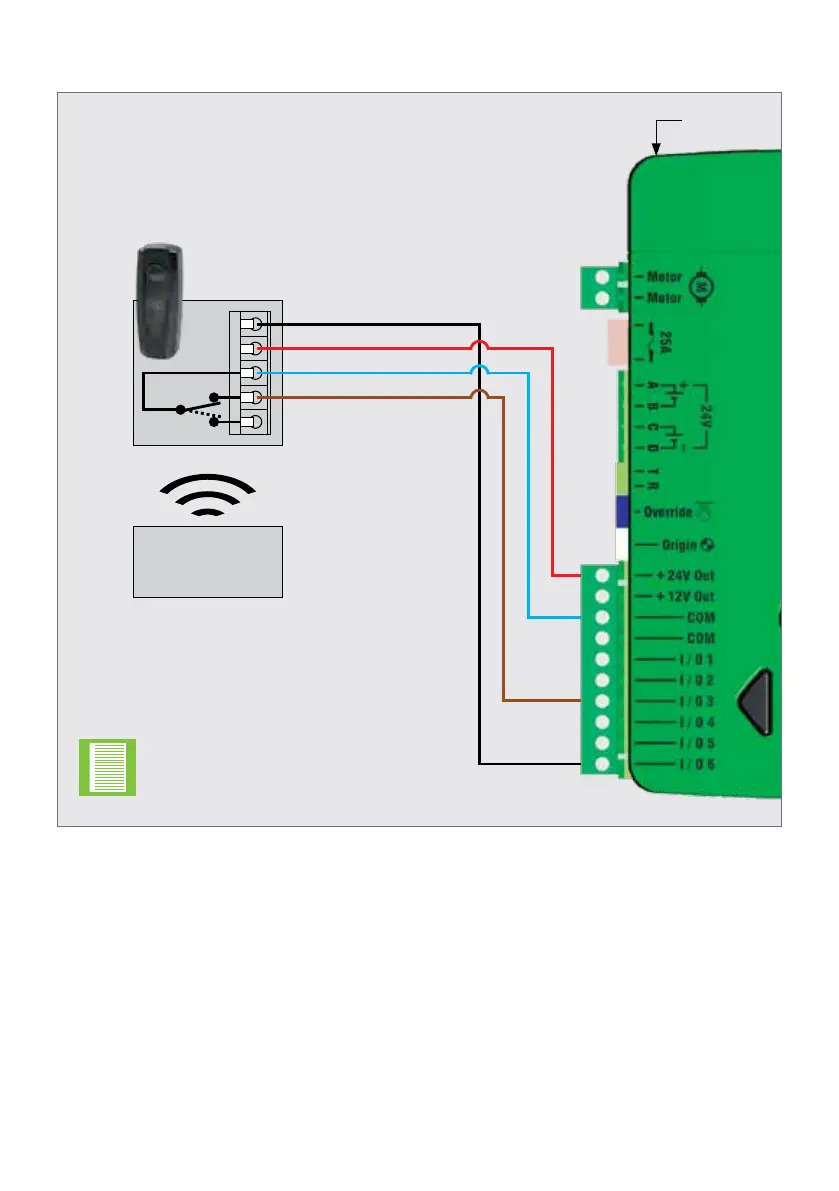

8.3.2. Closing Infrared Beam Wiring (Photon Infrared Beams)
FIGURE 85
D5 SMART
Control Card
12V/24V -
12V/24V +
COM
NC
IRB
Receiver
NO
NC
COM
Wireless IRB
Transmitter
Please contact Centurion
Systems (Pty) Ltd for directions
on wiring Infrared Beams in an
openingconguration.
