7.6. Routing the Cables
Route cables as determined in
Section 5.5 - "Cabling Requirements".
POINT A is the entry point for cables
with the conduit installed at the back
of the unit for new installations as
shown in Figure 42.
Although POINT B is the entry
point for cables with the conduit
from existing D3, D5 and D5-Evo
installations, it is recommended to
route the cable under the gearbox
and out the back through Point A
as shown in Figure 43.

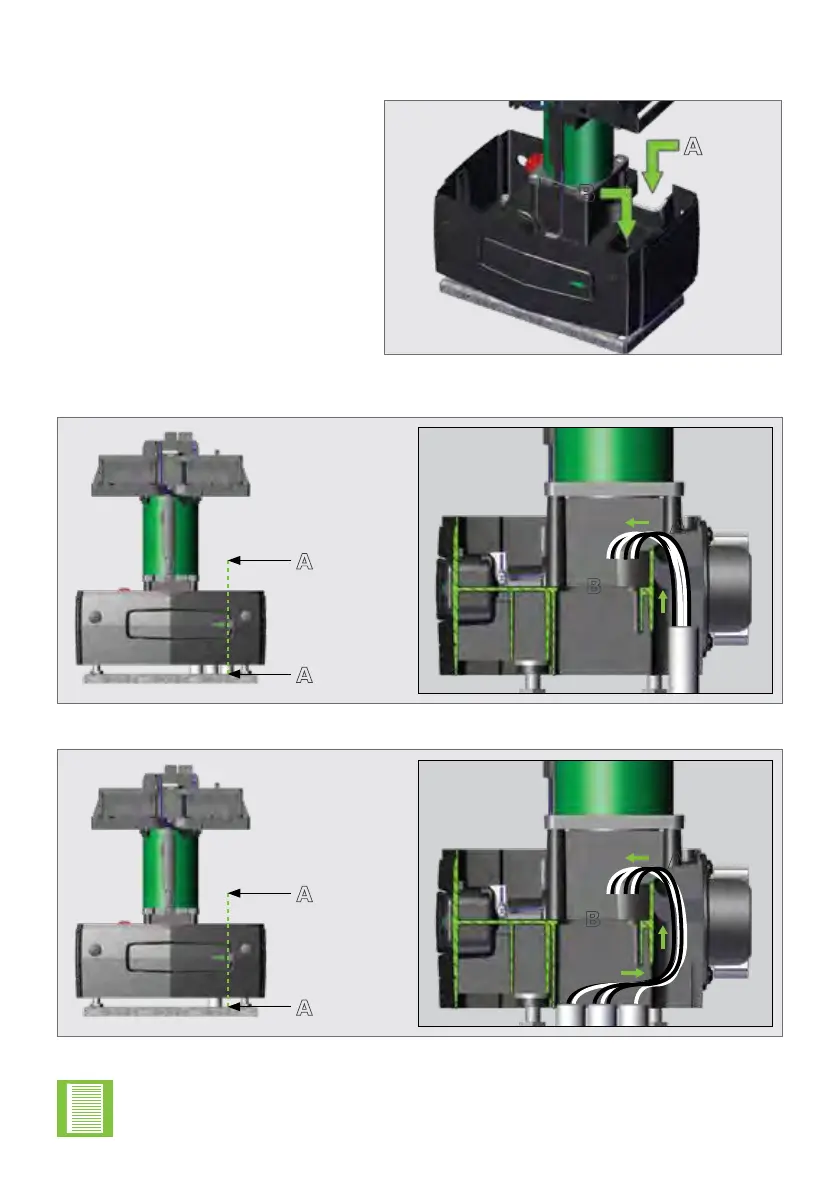

FIGURE 41
A
B
FIGURE 43. CABLE ROUTING FOR RETRO-FITS WITH LONGER CABLES
FIGURE 42. CABLE ROUTING FOR NEW INSTALLATIONS
A
A
A
A
Section View A-A
Section View A-A
A
A
B
B
ThemethodshowninFigure43above,isrecommendedforretro-t
installations, as it is easier to remove the motor should it be necessary to do so
at a later stage. However, cable lengthening may be required.
