CENTURION SYSTEMS D5 SMART - 3 Product Identification

page 11 www.centsys.com
PRODUCT IDENTIFICATIONSECTION 3
3. Product Identication

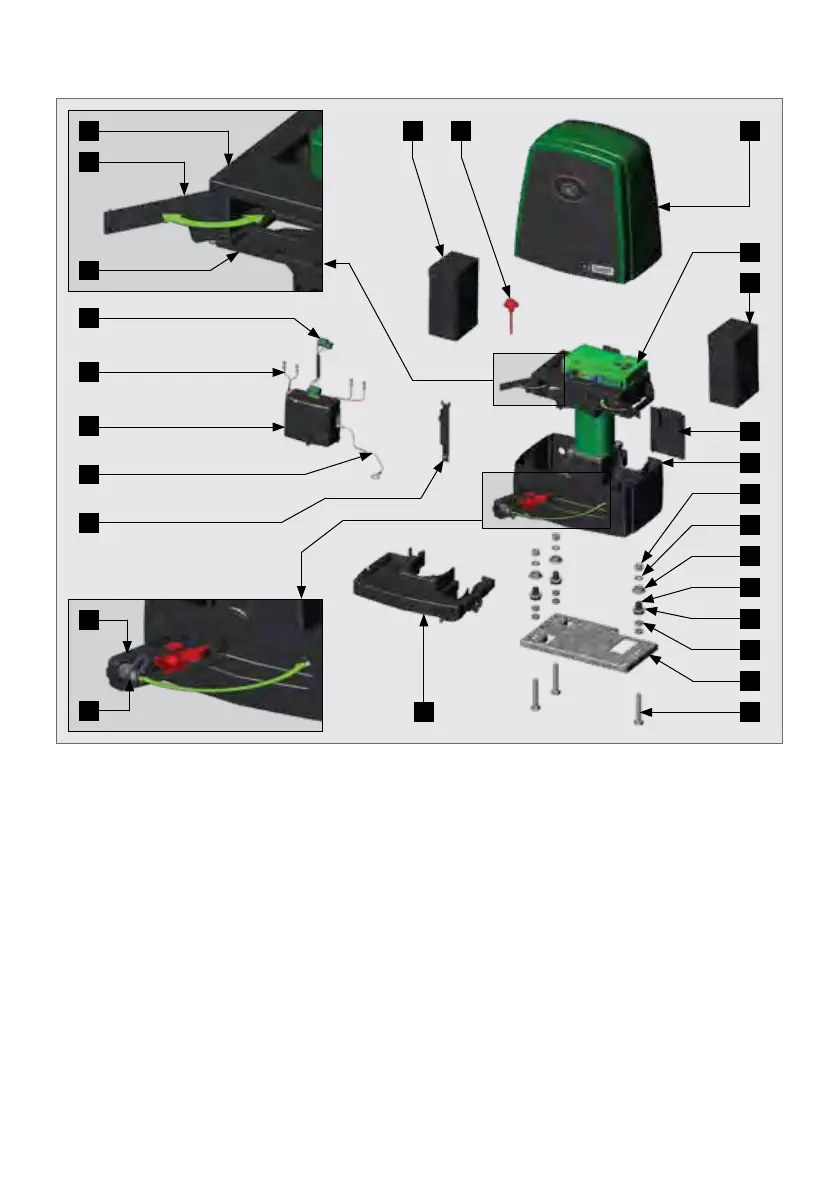

FIGURE 2. PRODUCT IDENTIFICATION
1 3
4
1
6
5
7
8
9
10
12
14
13
15
25
24
2
19
20
18
17
21
22
23
1. 12V Battery
1
2. Oil Dipstick
3. D5 SMART Cover
4. D5 SMART Control Card
5. Cable Shield
6. Gearbox
7. M10 Nut (17mm Socket)
8. Spring Washer
9. Top Height Adjuster (19mm Socket)
10. Bottom Height Adjuster
11. Heavy Duty M12 Washer
12. M10 Half-Nut
13. D5 SMART Foundation Plate
14. Mounting Bolt
15. Lower Battery Tray
16. Cable Trunking
17. Earth Harness
18. Switch Mode 1.3A charger
19. Battery Harness
20. Power Supply Harness
21. Control Card Platform
22. Accessory Retaining Door
23. Top Battery Stabiliser
24. Release Handle
25. Camlock
1. Batteries are not supplied with the D5 SMART. The D5 SMART supports both 6Ah and 7.2Ah variants.
11
12
16
