6. Lubrication
The internal gearset of the D5 SMART is lubricated by means of an oil bath.
The D5 SMART does not require routine oil changes. However, in the event
of the unit losing oil due to stripping down or mechanical damage, the correct
replacement oil is Castrol Syntrax Long Life 75W-90.
Ifthegearboxisbolteddowninthehorizontalpositionduringlling,
the correct level is reached when the oil level has reached the stepped section
of the dipstick.
40mlofoilissucientforlubricationpurposes.

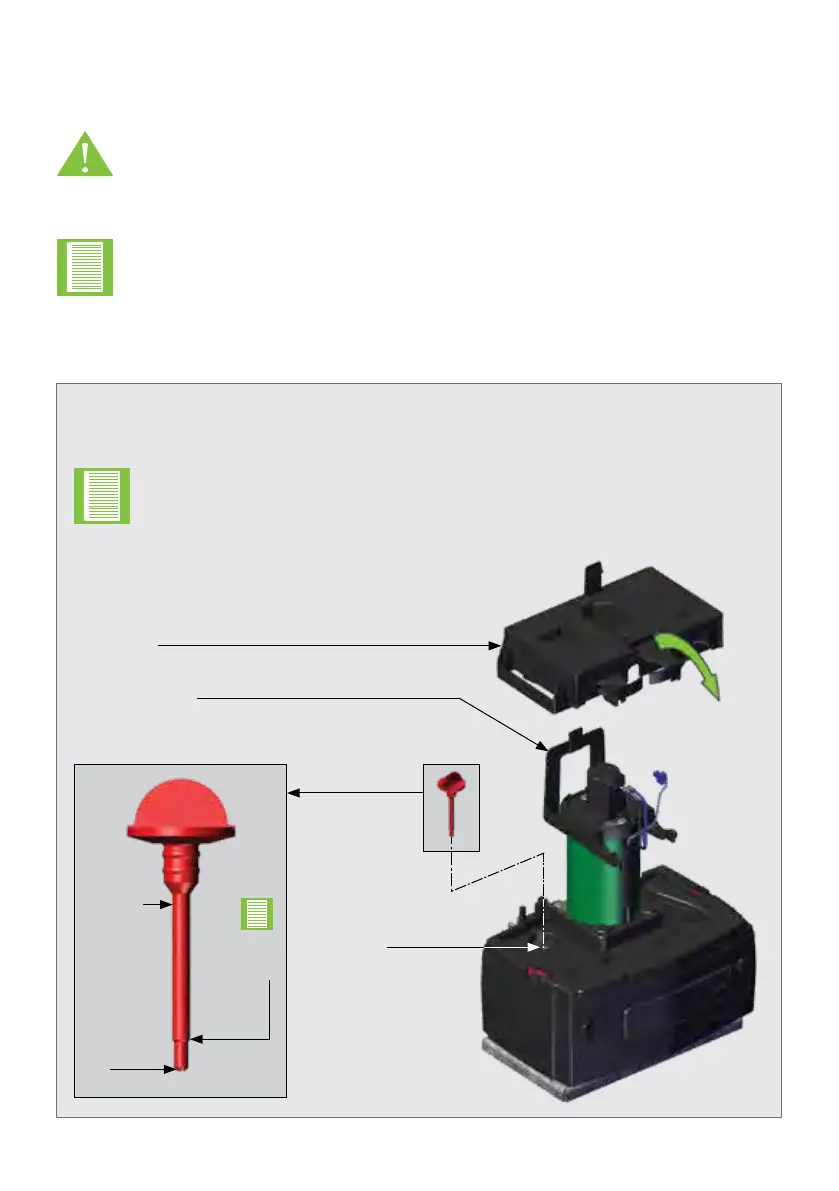

FIGURE 8. OPERATOR LUBRICATION
Oil lling procedure
• Lift the cover of the operator
• Release and tilt the Control Card Platform forward to gain access to the
batteries (See Section 8.1 - "Fitting the Batteries")
• Remove the left battery to gain access to the red dipstick
• Remove the dipstick by pulling it upwards
• Pour the required amount of oil into the gearbox
• Retthedipstick
Motor Bracket Clip
Control Card
Platform
Oil Reservoir
Opening
The D5 SMART is supplied with oil in its gearbox.
Dipstick
Step
(Optimum
Oil Level)
Tip
