Gate Rack
OPERATOR INSTALLATIONSECTION 7
7.1.2. Minimum Clearances
Below are site plan examples illustrating the minimum clearances required when
installing the D5 SMART.

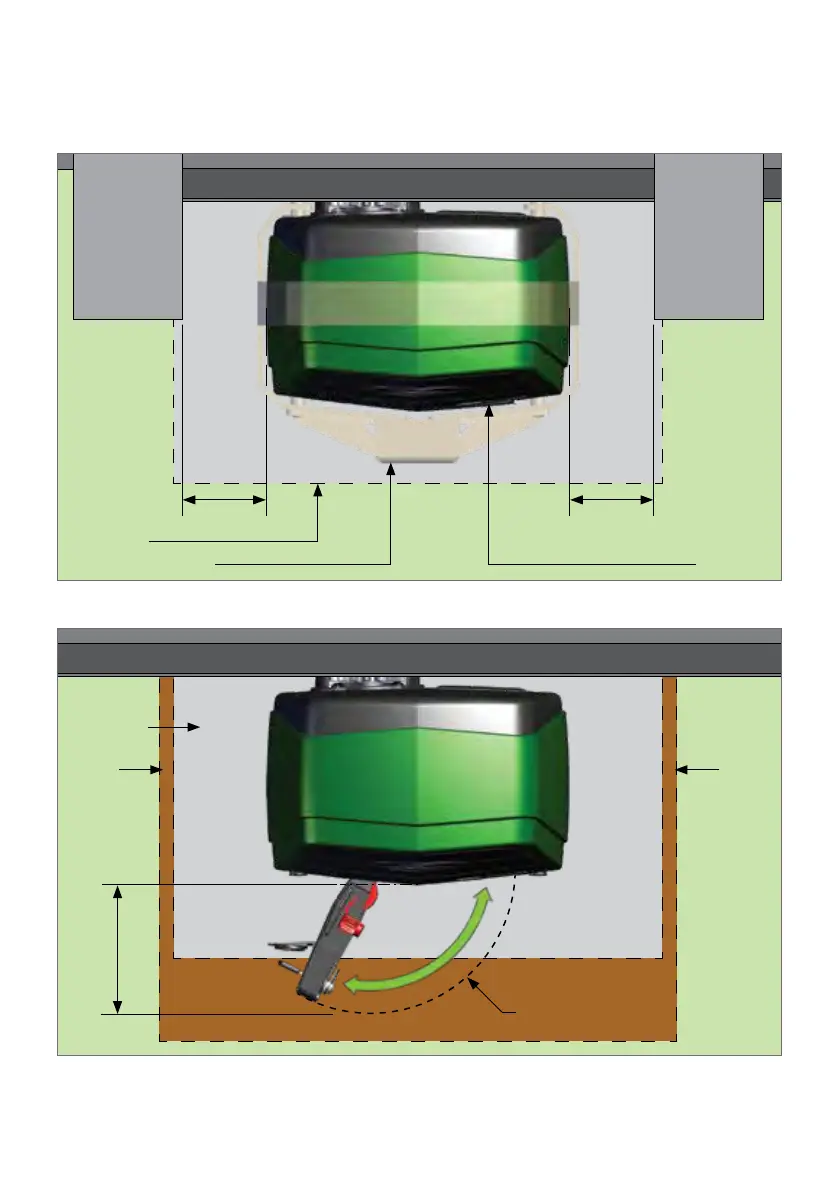

FIGURE 10. MINIMUM CLEARANCES - SIDES
FIGURE 11. MINIMUM CLEARANCES - FRONT
80mm
120mm
80mm
Pillar
Foundation
Foundation
Trench
Trench Trench
Theft-deterrent Cage D5 SMART
Most extreme path of
the Override Lever
Gate Rack
Pillar
