page 21 www.centsys.com
OPERATOR INSTALLATIONSECTION 7

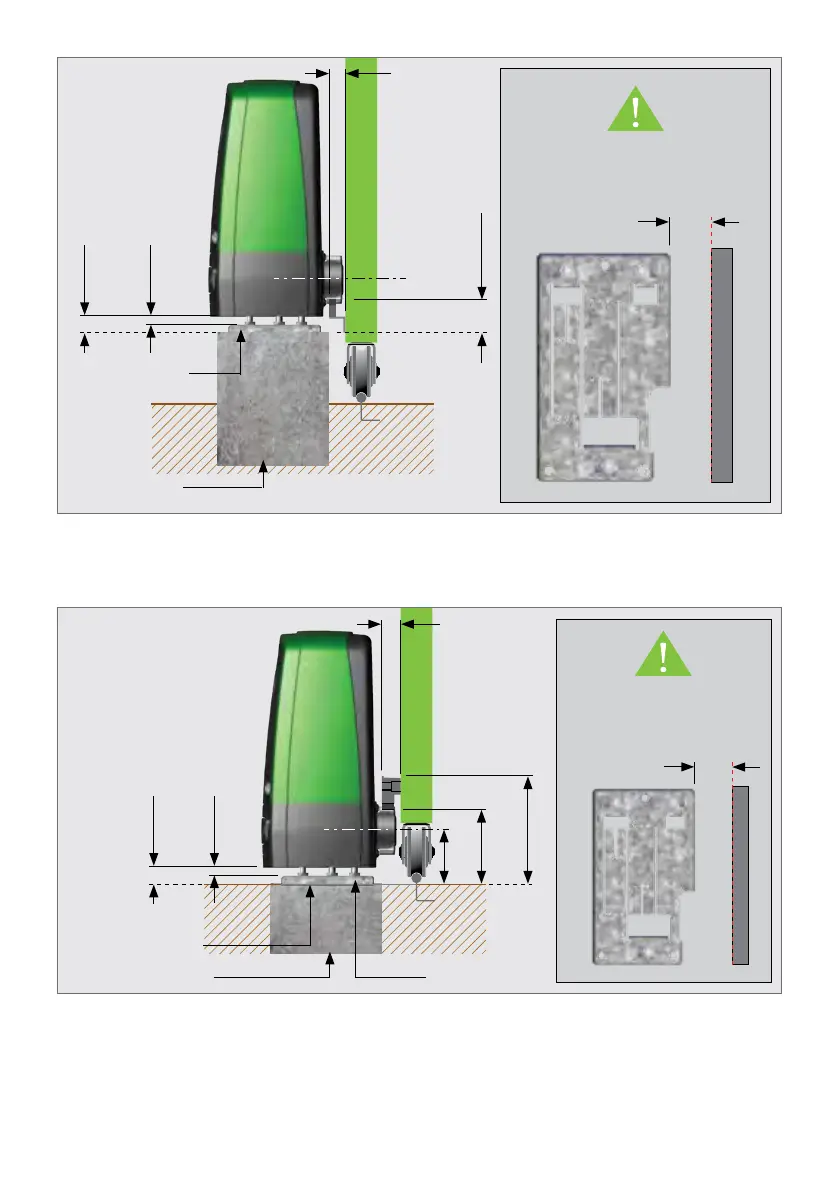

FIGURE 13. STEEL RACK BELOW PINION
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and top edge of the Rack Tooth
RAZ Rack
FIGURE 14. RAZ RACK ABOVE PINION
11mm
25mm
83mm
115.2mm
1,2
167.7mm
1
29.5mm
(Typical RAZ
Rack Width)
Foundation Plate
Flat bar welded
to foundation plate
and rail
Concrete Foundation
(Recommended to allow
for adjustment)
Minimum space from edge
of foundation plate to
reference point of edge that
protrudes the furthest.
(Section 7.1.1.)
53mm-55mm
11mm
25mm
25mm
(Typical Steel
Rack Width)
51.4mm
1,2
Foundation Plate
Raised Concrete
Foundation
(Recommended to allow
for adjustment)
Minimum space from edge
of foundation plate to reference
point of edge that protrudes
the furthest.
(Section 7.1.1.)
49mm-51mm
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and bottom edge of the Rack Tooth
