OPERATOR INSTALLATIONSECTION 7

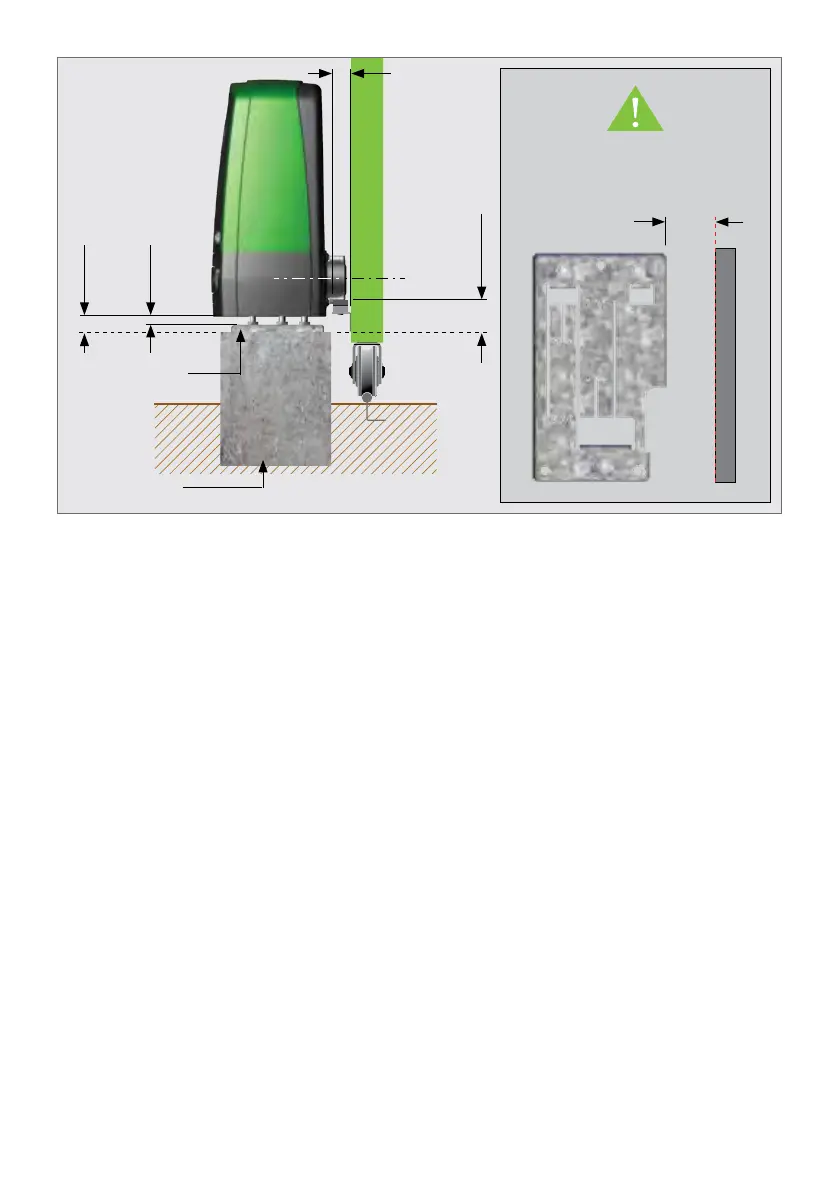

FIGURE 17. NYLON RACK BELOW PINION
11mm
25mm
29mm
(Typical Nylon
Rack Width)
51.4mm
1,2
Foundation Plate
Raised Concrete
Foundation
(Recommended to allow
for adjustment)
Minimum space from edge
of foundation plate to reference
point of edge that protrudes
the furthest.
(Section 7.1.1.)
53mm-55mm
1. Includes 3mm clearance required between rack and pinion
2. Distance between bottom of the Foundation Plate and top edge of the Rack Tooth
