page 39 www.centsys.com

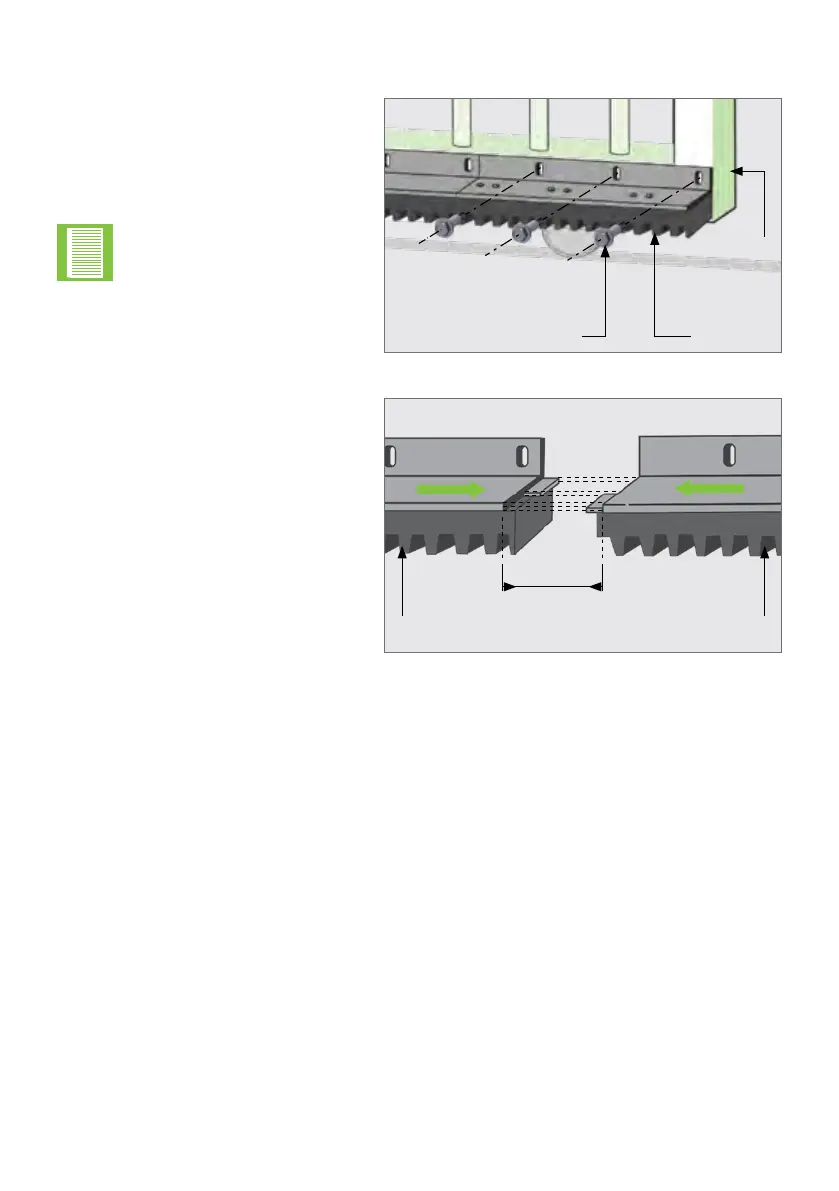

Nylon Angle Rack
FIGURE 62
FIGURE 63
TEK screw
(Self-drilling and -tapping)
Gate
Nylon
Angle Rack
Nylon
Angle Rack
Butt rmly
together
Nylon
Angle Rack
When joining two lengths together,
simplybutteachsectionrmly
together to ensure that the correct
pitch is achieved.
Fix the Rack to the side of the gate
using TEK screws.
Ensure that all the
mounting holes provided in
the angle section are used.
OPERATOR INSTALLATIONSECTION 7
