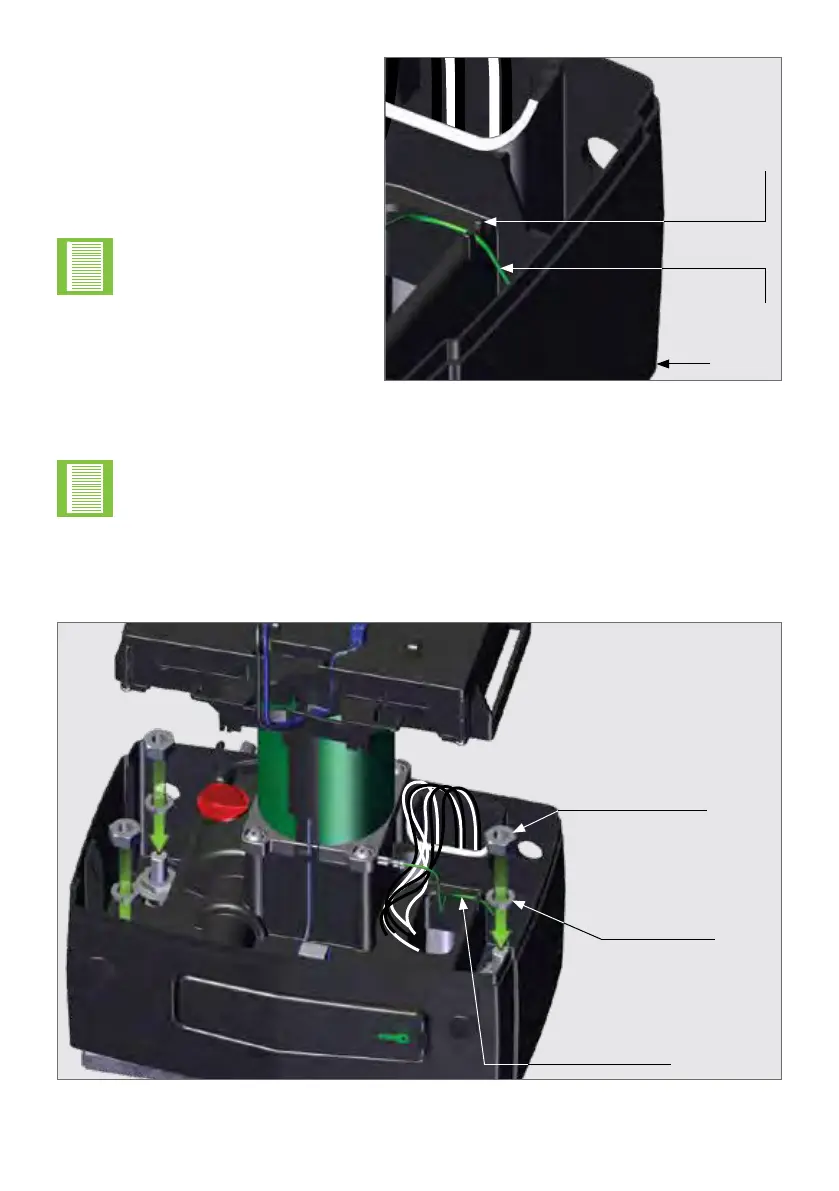

FIGURE 68
Place one Spring Washer and one Lock Nut onto each of the Mounting Bolts. Tighten all of
the Lock Nuts with a 17mm socket to secure the Earth Harness and the height of the D5
SMARTrmlyinposition.
Earth Harness
Lock Nut
Spring
Washer
Only add the Spring Washers and Lock Nuts once the Rack has been installed
and the operator height is correct.
The Earth Harness will
need to be routed under
the battery at a later
stage.
Route the Earth Harness up to
the left and place it into the Cable
Management Clip as shown in
Figure 67.
FIGURE 67
Cable
Management
Clip
Earth
Harness
Gearbox
7.9.2.2. Placing the Spring Washers and Lock Nuts
