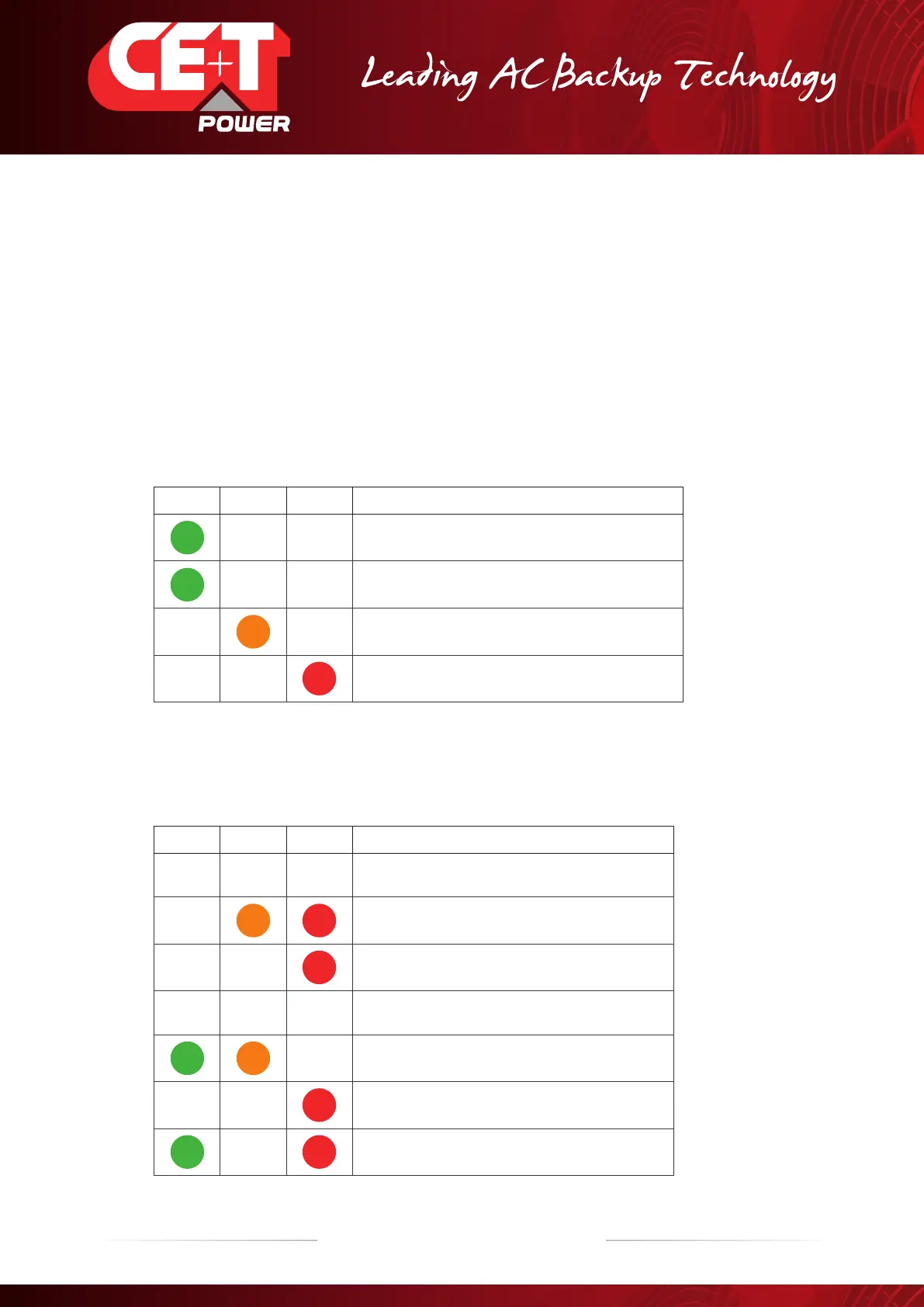

6.1 LEDs code during operations
S - Flash low
FS - Flash fast
SA - Sequence one after the other
X - Not used LED
6.1.1 LEDs code during normal operation
LEDs code below corresponds to system in operation and T2S ETH fully operational.
Green Orange Red Status
S
Slave mode (when several T2S ETH on the same bus)
Master Mode « master »
Minor alarm / Alarme Mineure
Major alarm / Alarme Majeure
6.1.2 LED Error Code - upgrade or system start up
This section explains the state of the boot loader in function of his LED state. During start up, soft upgrade,
configuration change or micro SD card changes.
Green Orange Red Status
Booting
Cannot copy to flash
FS
No micro SD card or file *.bcf not valid or not present
File *.acf found
SA SA
Installation *.saf please wait
FS
System error or no micro SD card
S FS
Configuration.ini found waiting network
