21 – Monitoring T2S - ETH User Manual – v1.4
Graphical User Interface
7. Graphical User Interface
The user interface is the same if accessed with a laptop connected on front ETH connection, remotely on network, or
through catena if one is present.
The interface has a “top-down” philosophy: first screen gives a general overview, then one can go deeper and get
more information on specific area by clicking the “magnifier icon”.

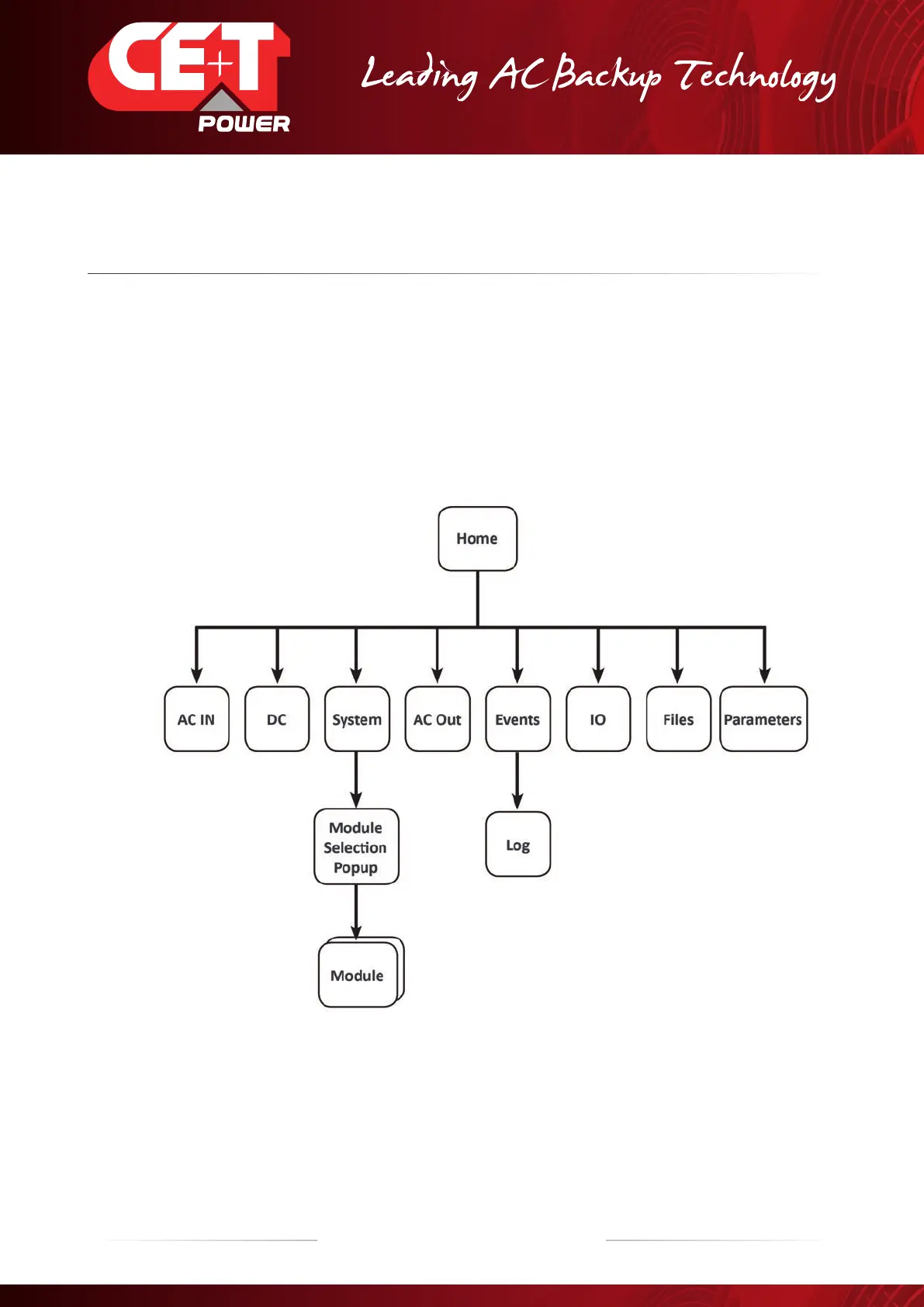

7.1 Hierarchy
