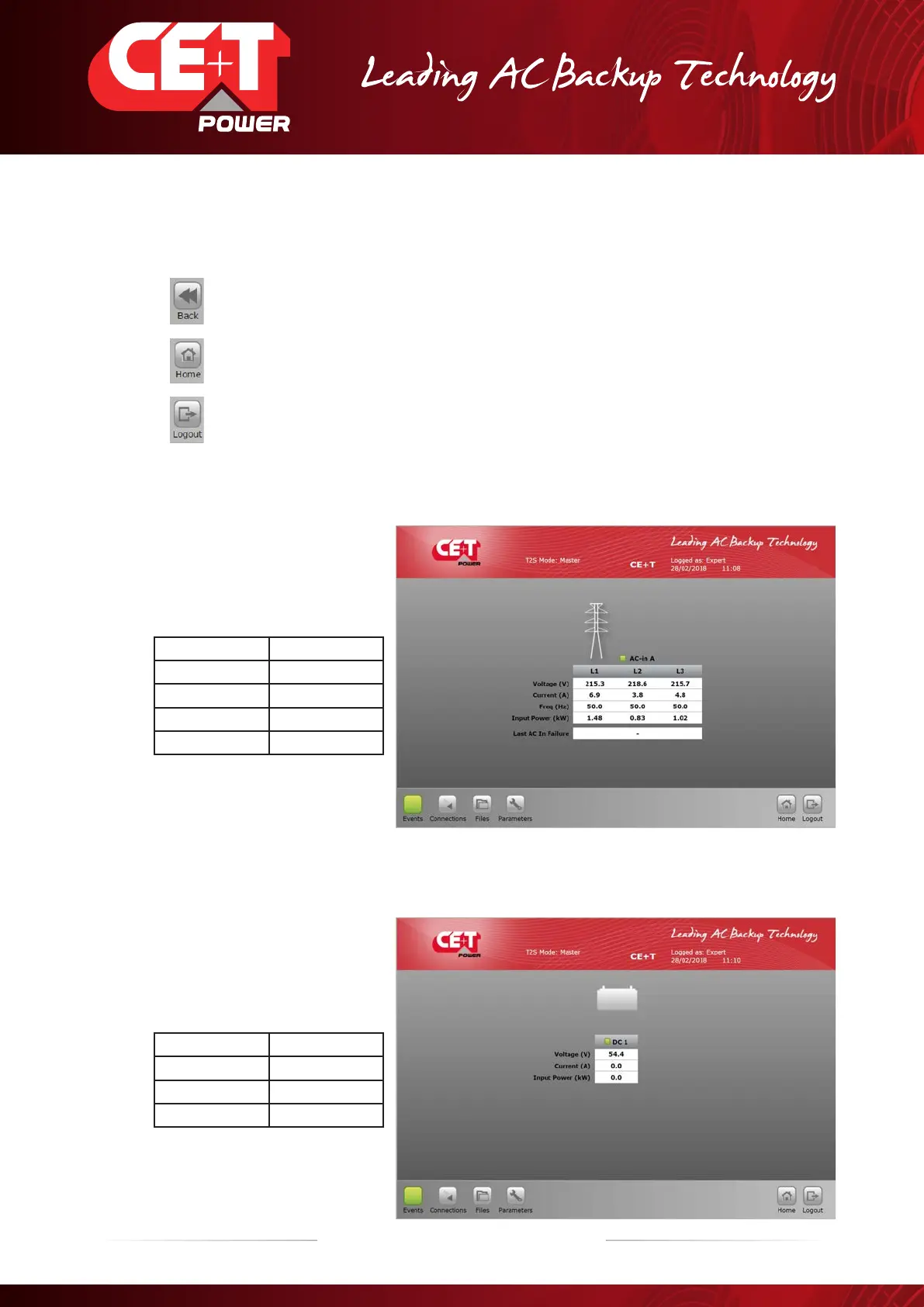

25 – Monitoring T2S - ETH User Manual – v1.4
Graphical User Interface
Throughout the browsing, user can see following icons appearing:
When accessing a page of depth two or more (such as module or log page), user can go back to
previous page by clicking “back”.
When browsing away from home page, user can go back straight to it by clicking the home page.
Whenever a logged user click this button, he will be redirected to login page.
7.4 Pages and Feature
7.4.1 AC IN
This page displays the measurement
made by the modules on the AC input.
Available values are:
Measure Unit
Voltage (V) Volts (V)
Current (I) Ampere (A)
Frequency(f) Hertz (Hz)
Input Power(P) Kilo Watts (kW)
System also keeps track of last AC In
failure timestamp.
Remark:
Modules have a Power Factor of 1, that’s why power is only displayed in KW. This would be the same value in KVA.
Last AC in failure is non-persistent information. It means that it will be lost if device is reset
7.4.2 DC IN
This page displays the measurement
made by the modules on the DC input.
Available values are:
Measure Unit
Voltage (V) Volts (V)
Current (I) Ampere (A)
Input Power(P) Kilo Watts (kW)
