23 – Monitoring T2S - ETH User Manual – v1.4
Graphical User Interface

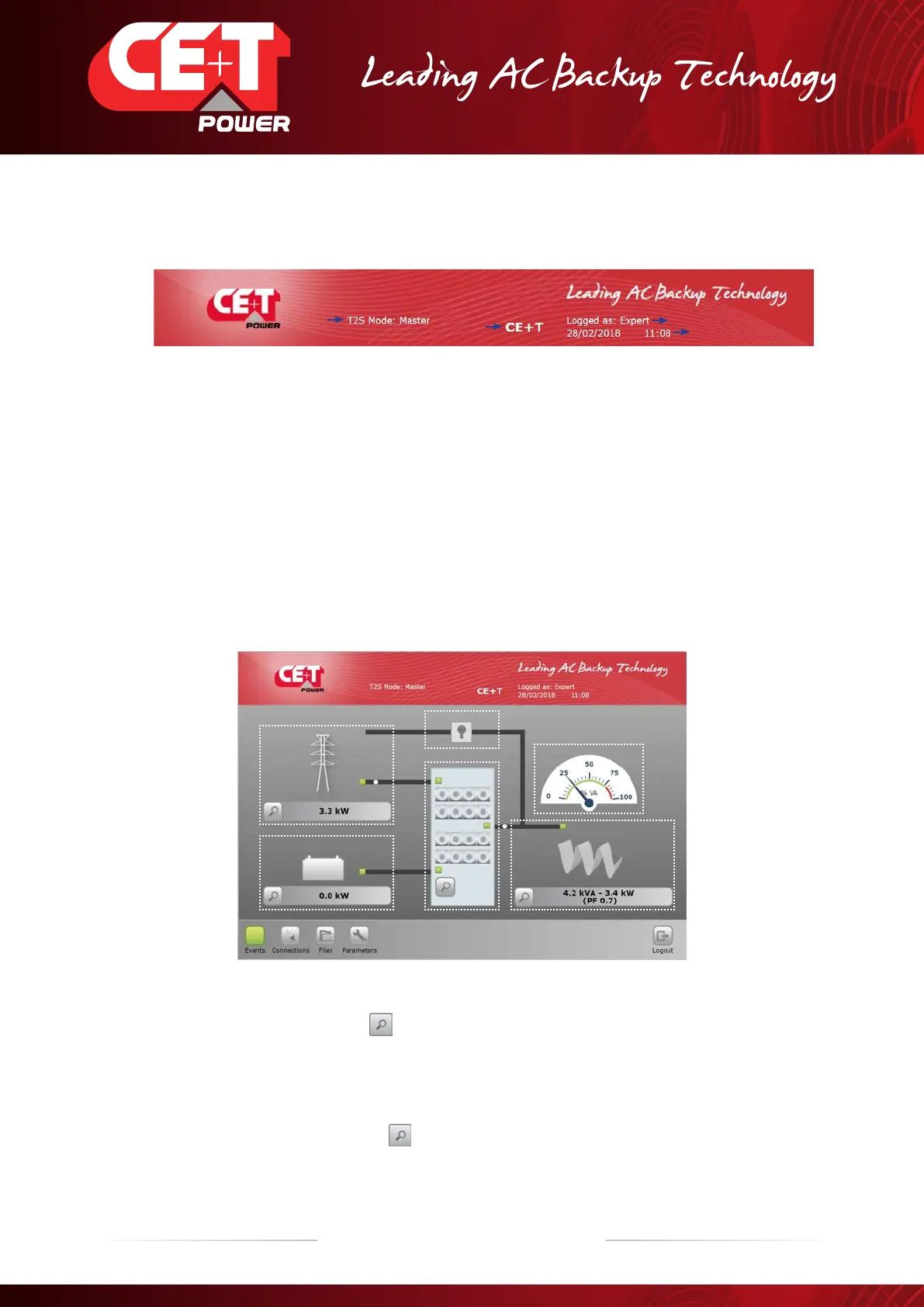

7.3.1 Banner
1
2
3
4
1 T2S Mode
T2S ETH can be used redundant (2 in the same system), one being master, the second is slave.
When used alone, T2S ETH is automatically Master.
2
Site name
It’s a customizable field from configuration menu. User can set any string he wants.
3
Access level
Display the level in use to browse the interface. It can be either Expert or Basic.
4
Date and time
This is the device time and date which can be adjusted in configuration menu.
7.3.2 Main Area
1
2
3
4
5
6
1 AC IN
Clicking the magnifier
will bring the user to all measurements regarding AC input.
The LED’s shows the status of the input: if the source is absent, this LED’s becomes red.
Flow (moving white ball) from this item to the system means power is taken from the source.
Power displayed is the total power consumed, regardless system is 1P or 3P.
2 DC input
Clicking the magnifier
will bring the user to all measurements regarding DC input.
Given the system can be configured with up to 2 DC groups, power is the total power consumption.
Flow (moving white ball) from this item to the system means power is taken from the DC source.
