26 – Monitoring T2S - ETH User Manual – v1.4
Graphical User Interface

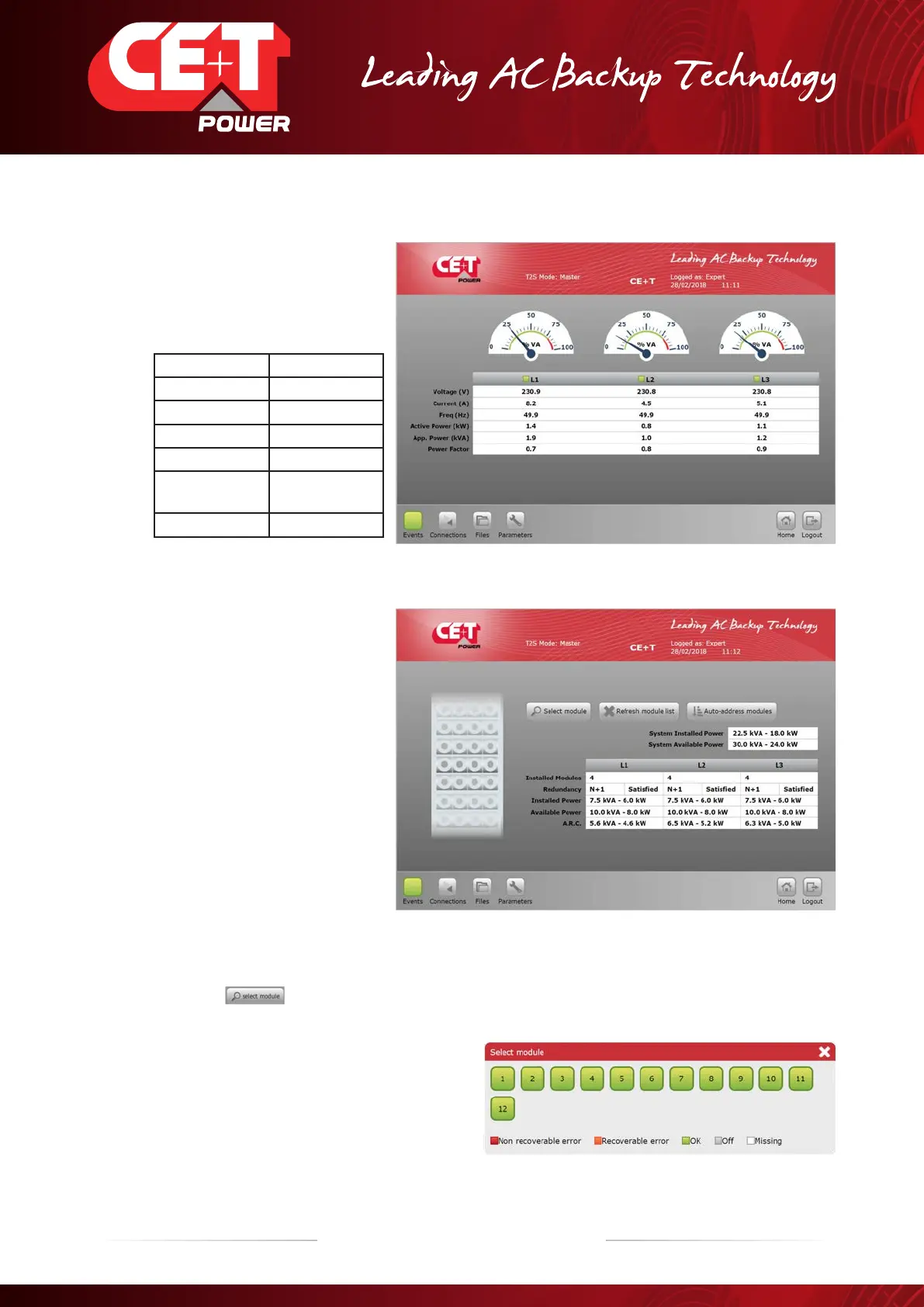

7.4.3 AC Out
This page displays the measurement
made by the modules on the AC output
Available values are:
Measure Unit
Voltage (V) Volts (V)
Current (I) Ampere (A)
Frequency(f) Hertz (Hz)
Active Power(P) Kilo Watt (KW)
Apparent
Power(S)
Kilo Volt Ampere
(KVA)
Power factor -
7.4.4 System
Clicking the system picture on home
page brings the user to the related page
where following information can be
found:
System level:
• Installed power
• Available power
Phase level:
For each output phase, following
information is given:
• Number of installed modules
• Redundancy: defined or not,
satisfied or not
• Installed and available power
following the same logic as per system level
• A.R.C. (Available Redundant Capacity) is the remaining available power before reach the redundancy level.
Clicking the
button will launch the module selection popup. Each module information can be accessed
by clicking the corresponding button. A legend is always present to recall the colour scheme:
• White: no module in slot
• Grey: module manually off
• Green: module OK
• Orange: module in recoverable error
• Red: module with unrecoverable error
For last two, refer to module manual for troubleshooting.
