19 – Monitoring T2S - ETH User Manual – v1.4
Hardware

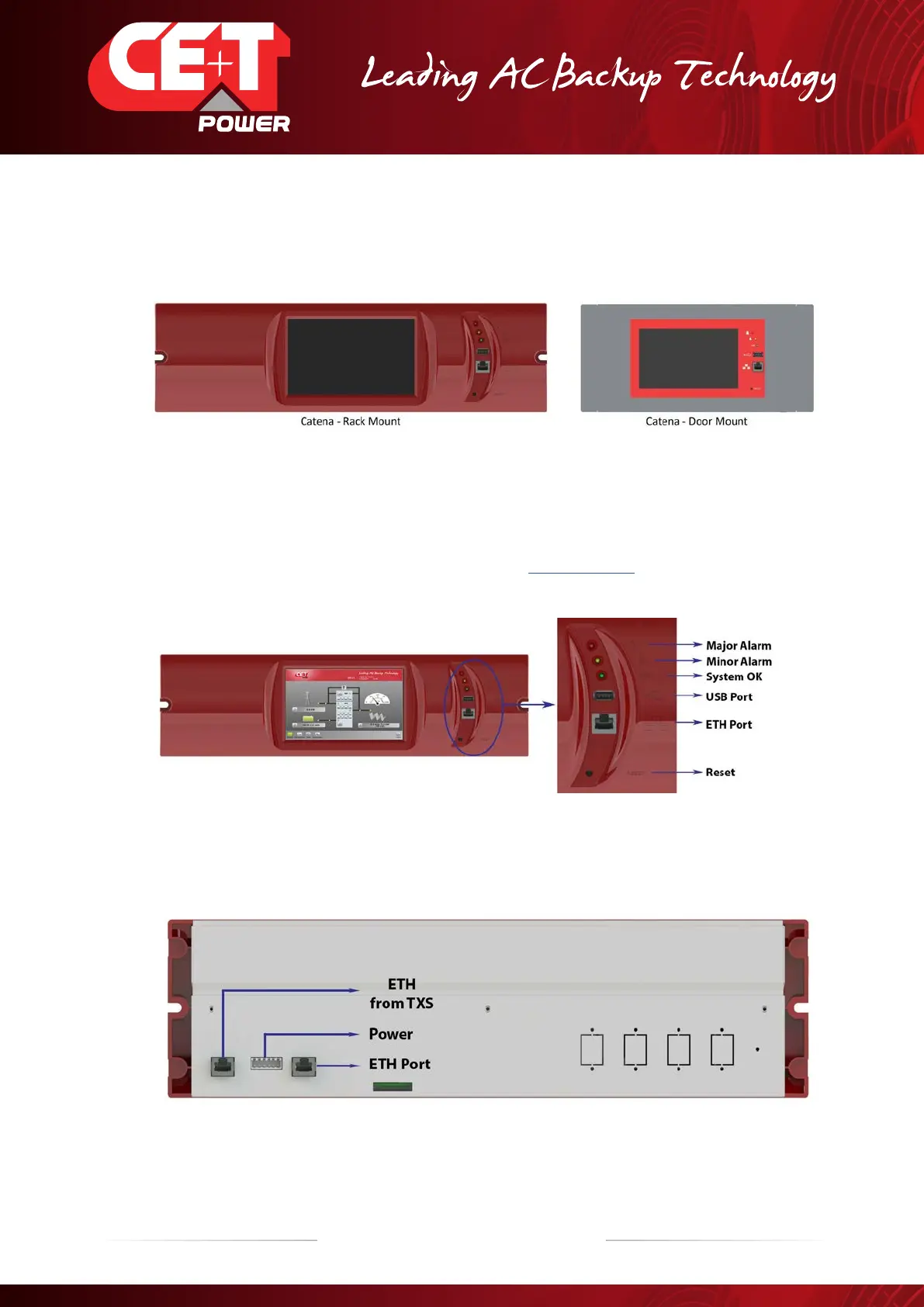

6.4 Graphical User Interface - Catena
The Catena display can be used with the T2S ETH. Catena is either available in rack mount or door mount version.
6.4.1 Description
On front access, Catena has a wide 7’’ capacitive touch screen alongside 3 led following the same scheme as in T2S
ETH and two connectors: USB type A and Ethernet (RJ45). A reset button is also provided. Catena firmware can be
upgrade using the Micro SD card. Device firmware is available in my.cet-power.com
From the rear, there are two 12 VDC inputs that help Catena to be powered by two different sources, usually AC and
DC. The PE is also available on power supply connector. Two Ethernet (RJ45) ports are available, one for connection to
T2S ETH (see section 6.4.2, page 20) and one for permanent network connection.
Important remark: this is the latest version released of Catena. If you have different version of
Catena, refer to the system user manual.
