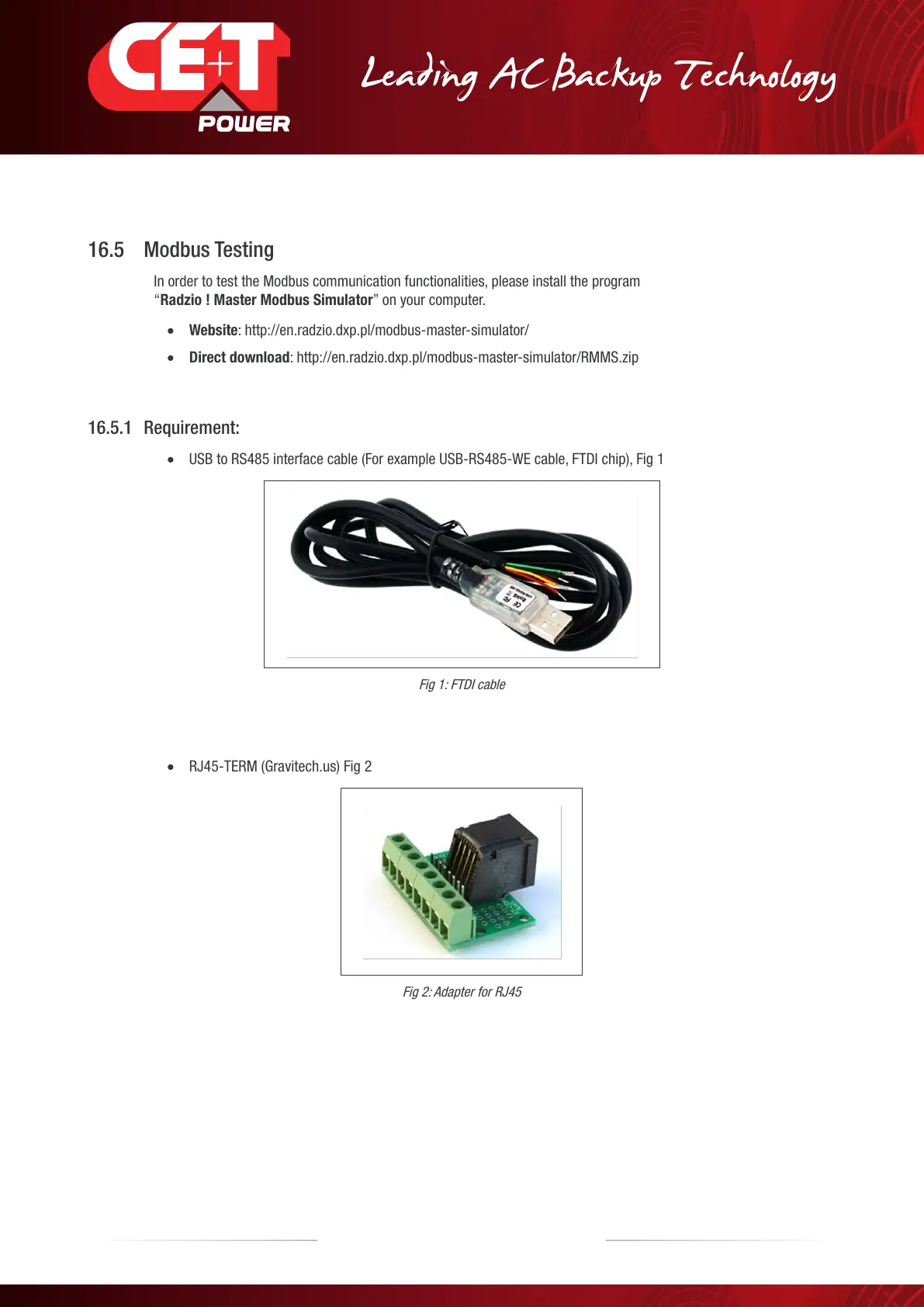

16.5 Modbus Testing
In order to test the Modbus communication functionalities, please install the program
“Radzio ! Master Modbus Simulator” on your computer.
• Website: http://en.radzio.dxp.pl/modbus-master-simulator/
• Direct download: http://en.radzio.dxp.pl/modbus-master-simulator/RMMS.zip
16.5.1 Requirement:
• USB to RS485 interface cable (For example USB-RS485-WE cable, FTDI chip), Fig 1
Fig 1: FTDI cable
• RJ45-TERM (Gravitech.us) Fig 2
Fig 2: Adapter for RJ45
90 – Monitoring T2S - ETH User Manual – v1.4
Annex 3: Modbus
