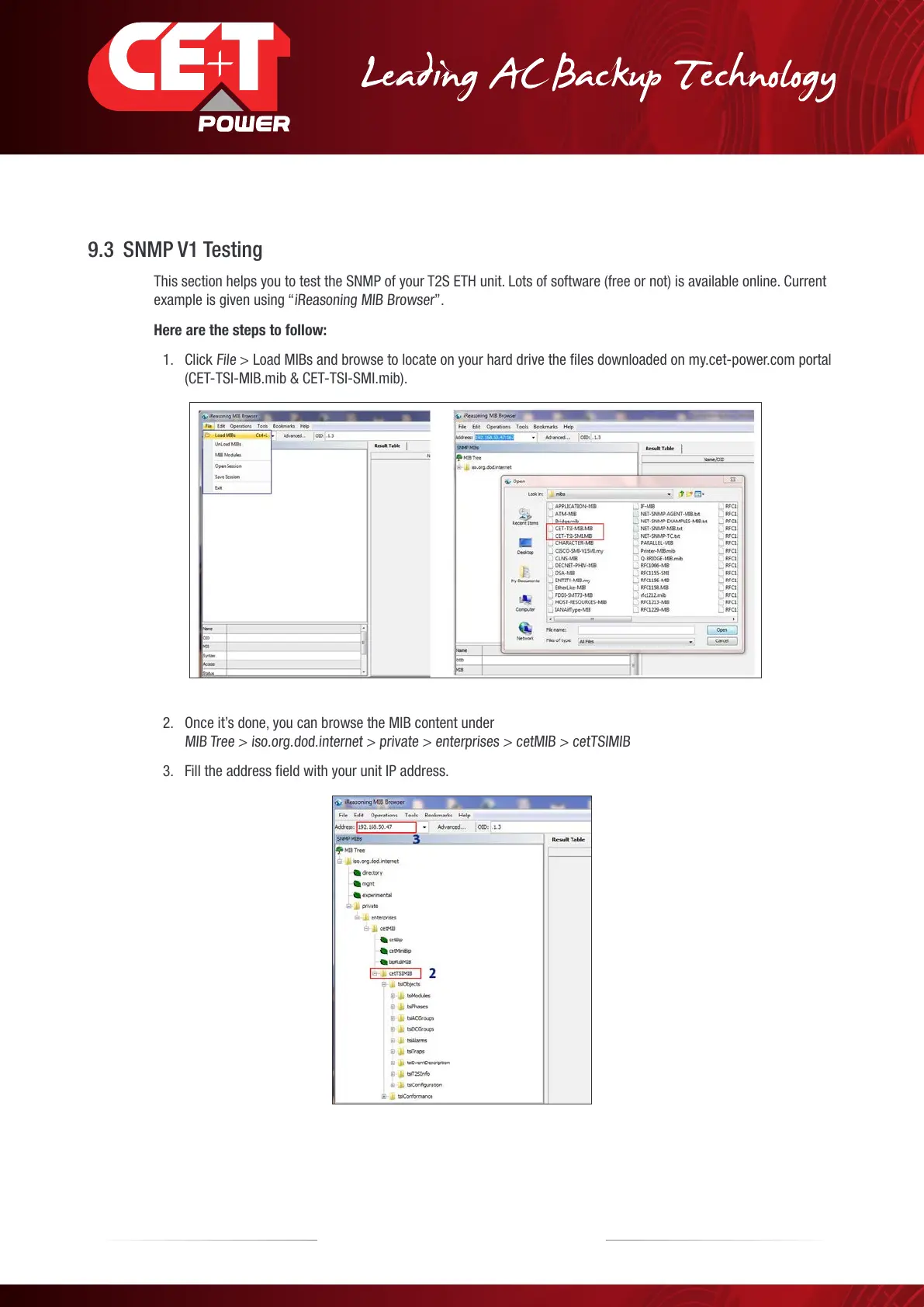

9.3 SNMP V1 Testing
This section helps you to test the SNMP of your T2S ETH unit. Lots of software (free or not) is available online. Current
example is given using “
iReasoning MIB Browser
”.
Here are the steps to follow:
1. Click
File
> Load MIBs and browse to locate on your hard drive the files downloaded on my.cet-power.com portal
(CET-TSI-MIB.mib & CET-TSI-SMI.mib).
2. Once it’s done, you can browse the MIB content under
MIB Tree > iso.org.dod.internet > private > enterprises > cetMIB > cetTSIMIB
3. Fill the address field with your unit IP address.
58 – Monitoring T2S - ETH User Manual – v1.4
