23
4.3 The Autopilot Control
In the interest of safety there must be an autopilot control within
reach of the helmsman AT ALL TIMES.
This should be installed in a convenient position for operation by
the Helmsman.
4.4 Mounting the ProPilot 700
Use the template to cut out the aperture and make four pilot holes
for the screws. Connect the 930529 cable to the rear of the
ProPilot 700. Place the pilot into the aperture, then secure with the
four self tapper screws supplied.
Not to Scale

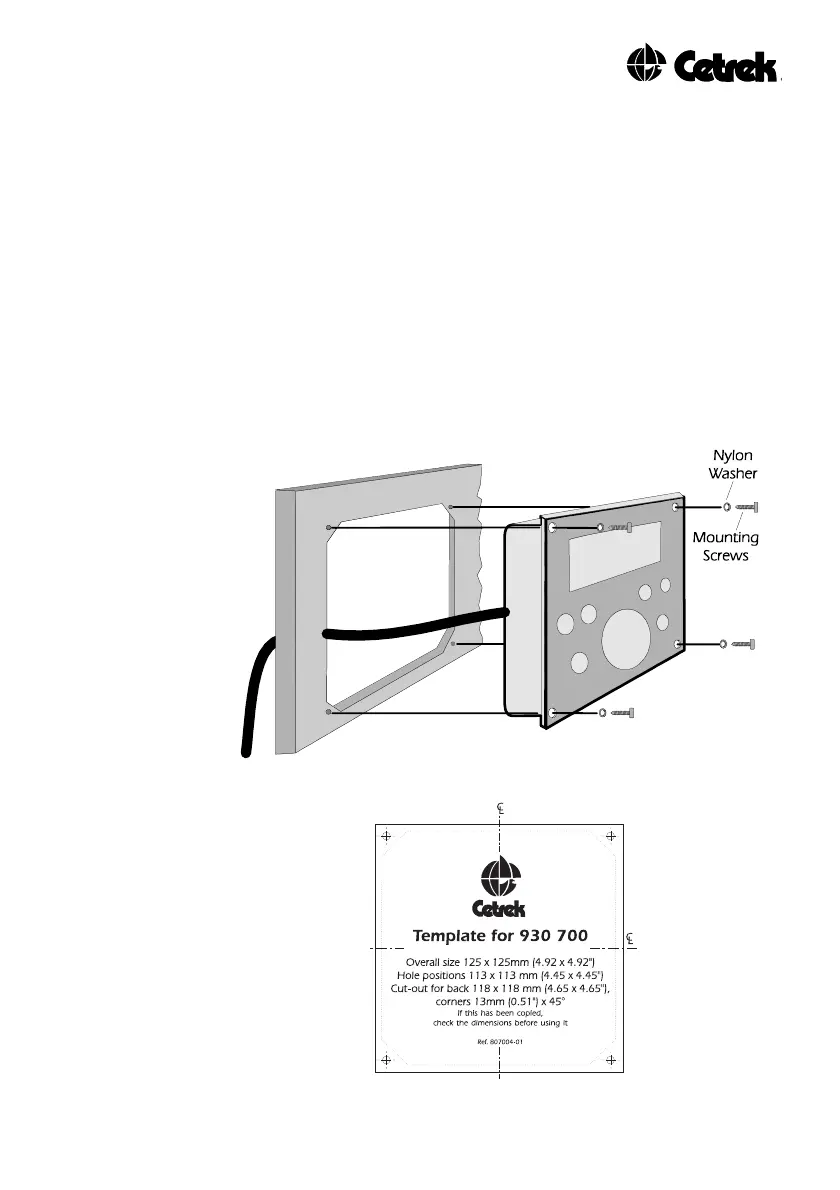

Figure 7 - Flush Mounting and Template
