INSTALLATION
1/2" (1.8 cm)
24" (61 cm)

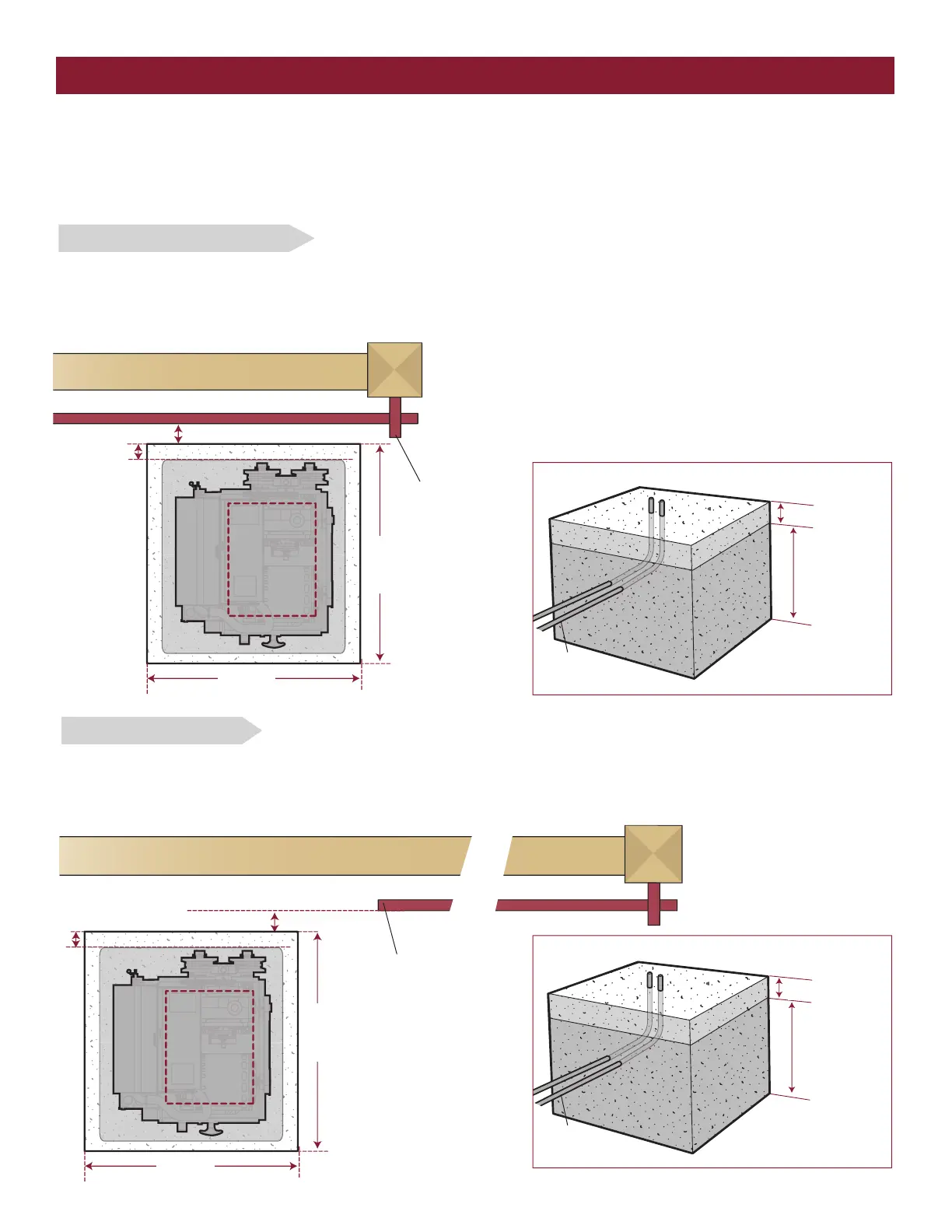

STEP 1
DETERMINE LOCATION FOR CONCRETE PAD AND OPERATOR
Check the national and local building codes before installation.
1" - 2" (2.5 - 5.1 cm)
(conduit location)
Front gate roller
REAR INSTALLATION
1. The gate operator should be installed near the back of the gate in the OPEN position. Lay out the concrete pad.
2. Install the electrical conduit.
3. Pour a concrete pad (reinforced concrete is recommended).
(Gate)
(Gate in open position)
Back of gate
1/2" (1.8 cm)
24" (61 cm)
1"-2" (2.5-5.1 cm)
(conduit location)
(Pad)
(Pad)
Below the frost
line. Check all
national and local
codes.
6" Above Ground
(conduit)
Below the frost
line. Check all
national and local
codes.
6" Above Ground
(conduit)
STANDARD INSTALLATION
1. The gate operator should be installed near the front roller of the gate. Lay out the concrete pad.
2. Install the electrical conduit.
3. Pour a concrete pad (reinforced concrete is recommended).
24" (61 cm)
24" (61 cm)
