26
MAGLOCK WIRING
TERMINALS FUNCTION WIRING EXAMPLE
NC and COM Normally Closed (N.C.) output for maglocks. Relay
activates prior to motor activation and during
motor run. Relay is off when motor is off.
SOLENOID LOCK WIRING
NO and COM Normally Open (N.O.) output for solenoid locks.
Relay activates prior to motor activation and
during motor run. Relay is off when motor is off.

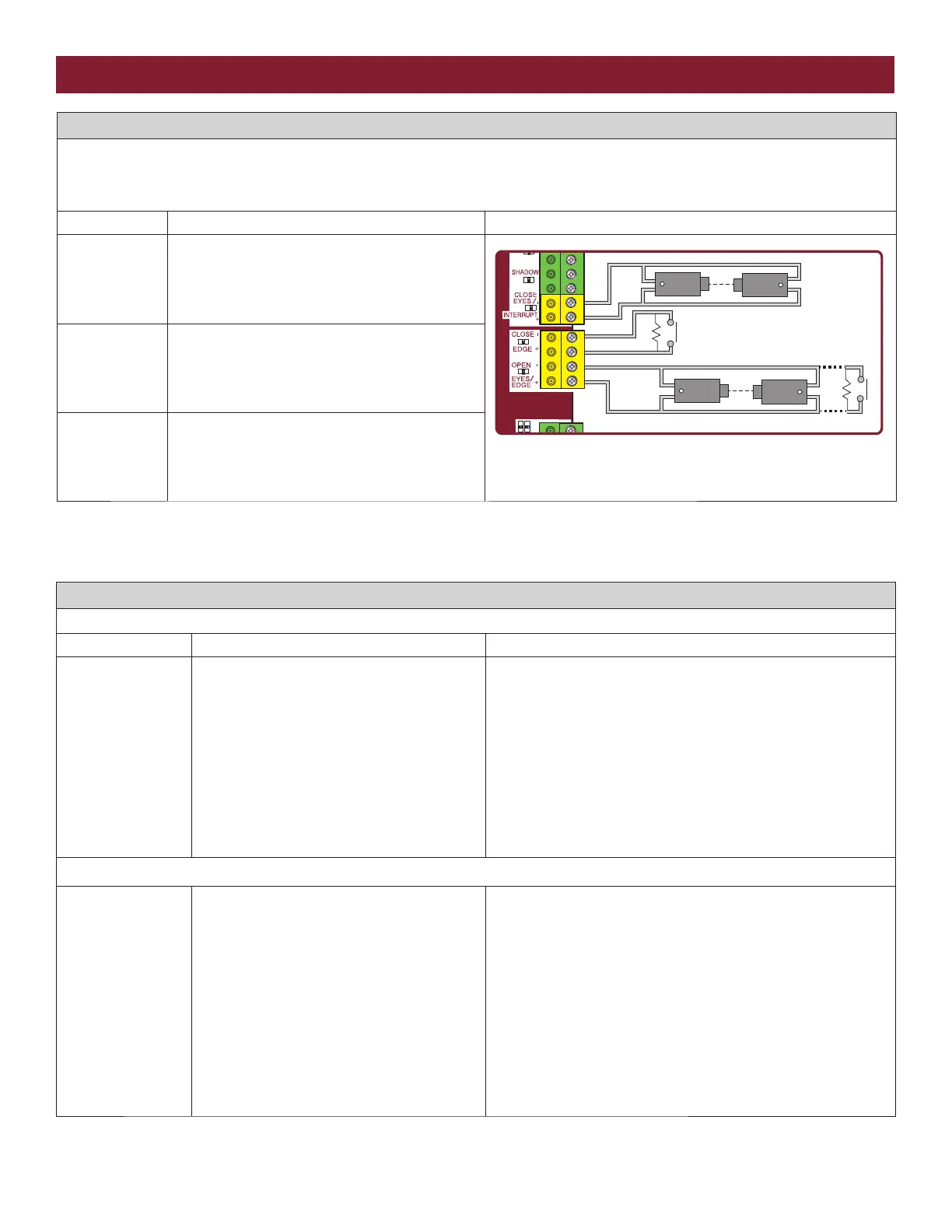

The EYES/EDGE terminals are used for connecting entrapment protection devices. At least one external monitored entrapment protection device is
required prior to gate movement. Monitored entrapment protection devices should have been installed with the operator at the time of installation.
Only ONE monitored device may be connected to each input. A monitored device sends a pulsed signal to the operator so the operator is aware of
the device. If the operator does not receive the signal from the device indicating it is working properly, it will not run in that direction.
TERMINALS FUNCTION WIRING EXAMPLE
CLOSE EYES/
INTERRUPT
The CLOSE EYES/INTERRUPT input is for close
direction photoelectric sensors. When an obstruction
is sensed during gate closing the gate will open to the
full open position. This input will be disregarded
during gate opening and resets the Timer-to-Close.
CLOSE EDGE The CLOSE EDGE input is for the close direction edge
sensors. When an obstruction is sensed during gate
closing the gate will reverse to the full open position,
disengaging the Timer-to-Close. This input will be
disregarded during gate opening.
OPEN EYES/
EDGE
The OPEN EYES/EDGE input is for open direction
photoelectric sensors or edge sensors. When an
obstruction is sensed during gate opening the gate will
reverse for 4 seconds then stop. This input will be
disregarded during gate closing.
LOCKS
PHOTOELECTRIC SENSORS AND EDGE SENSORS
WIRE ACCESSORIES TO CONTROL BOARD
