27
SHADOW INTERUPT EXIT
SBC
OPN
CLS
STP
COM
EYE
ONLY
EYE/
EDGE
EYE/
EDGE
COM
1
2
3
OPEN
CLOSE
TO MAIN
BOARD
POWER

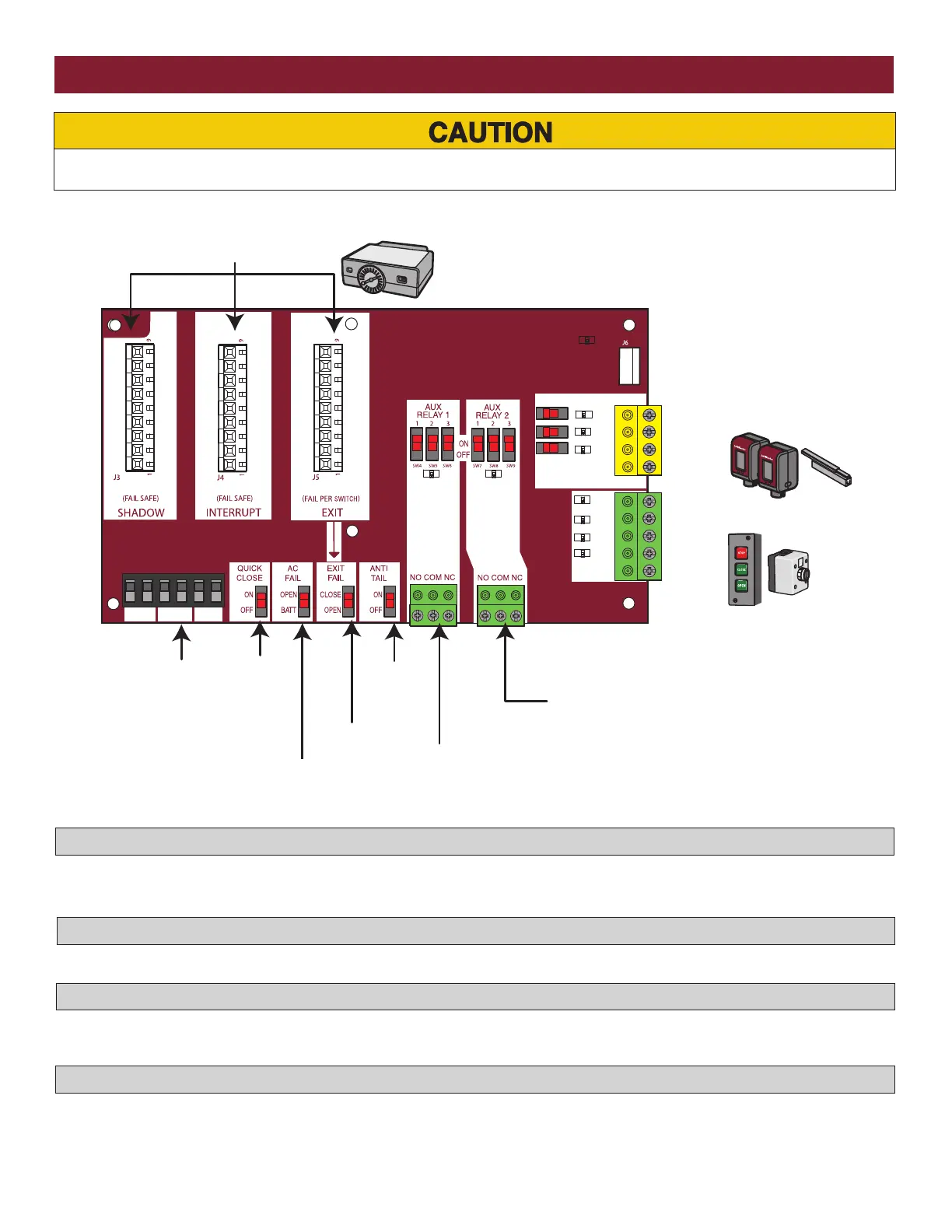

EXPANSION BOARD OVERVIEW
To AVOID damaging the circuit board, relays or accessories, DO NOT connect more than 42 Vdc (32 Vac) to the AUX relay contact terminal blocks.
PLUG-IN LOOP DETECTOR INPUTS
For Plug-In Loop Detectors (Model LOOPDETLM)
MAIN CONTROL BOARD CONNECTION
Connected at the factory.
LOOP INPUTS
Page 30
QUICK CLOSE SWITCH
AC FAIL SWITCH
EXIT FAIL SWITCH
ANTI TAIL SWITCH
QUICK
CLOSE
SWITCH
See below.
AC FAIL SWITCH
Not used.
EXIT FAIL SWITCH
See below.
ANTI TAIL
SWITCH
See below.
RELAY 1 WITH CORRESPONDING SWITCHES
Page 28
RELAY 2 WITH CORRESPONDING SWITCHES
Page 28
EYES/EDGE TERMINALS
Page 29
CONTROL STATION TERMINALS
Page 29
NOT USED
OPEN If the EXIT plug-in loop detector (model LOOPDETLM) detects a fault, then the gate will open and remain open until fault is cleared.
CLOSE If the EXIT plug-in loop detector (model LOOPDETLM) detects a fault, faults are ignored (EXIT loop is faulted and inoperative).
OFF When CLOSE EYES/Interrupt loop is activated it causes a closing gate to stop and reverse.
ON When CLOSE EYES/Interrupt loop is activated it causes a closing gate to pause. Once the vehicle is clear the gate will continue to close.
OFF No change to the gate’s normal operation.
ON When CLOSE EYES/Interrupt loop is deactivated it causes an opening or a stopped gate to close (ignores the Timer-to-Close).
