Chamberlain Elite SL3000 User Manual

44
Cover
K77-37708
Junction Box with On/Off
Switch and Receptacle
K77-37709
Main Control Board
K1D6761-1CC
Gear Reducer and Brake
K32-37349
Alarm
K94-37461
Antenna and
Coaxial Cable
K77-37638
Dust Guard
K13-34729
Power Board,1 Phase
K1D8402-1CC
Expansion Board
K1D8387-1CC
Motor
K20-1050B-1RSX
Brake Assembly
K77-37710
Drive Belt
K16-4L230
Electrical Box
Assembly
K75-37300-1
Chassis
K73-37199
Motor Pulley
K17-50098
Limit Switch Chain
K19-35056
Drive Sprocket
K15-41B25LGH
Transformer
K21-14182
Limit Switch
K23-50099
Limit Switch Sprocket
K15-35B13AXR
Limit Switch Assembly
K76-37306
RPM CUP
K13-32087
RPM Encoder
Board
K2A0878
Limit Switch
Drive Sprocket
K15-35B17LGF

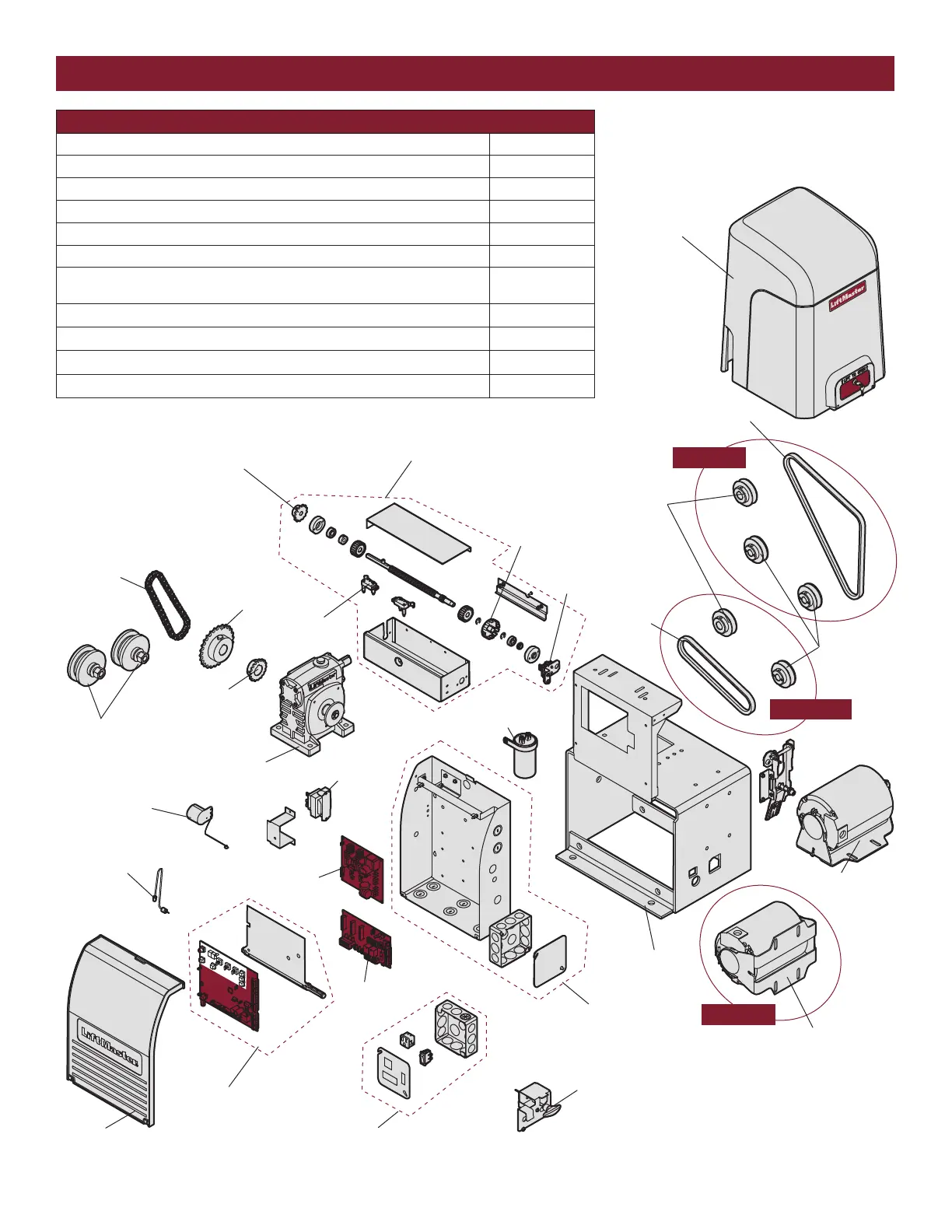

REPAIR PARTS
NOT SHOWN
#41 Chain (10 feet) 19-41240D
#40 Chain (10 feet) 19-40240D
#41 Chain (Nickel Plated) 19-41240D-NP
#41 Master Link 19-50307
#40 Master Link 19-50310
Plastic Standoffs for main control board (10 per bag) K77-37683
Wire Harnesses (main board to power board, main board to ground, main board to
transformer, and power board to transformer)
K77-37693
Wire Harness (main board to expansion board) K94-34778
Reset Switch with ID K94-37468
Hardware Kit (chain bolt and chain bracket) K77-36764
Chain Bolt K07-50637
Idler Pulley
Assembly
K75-50090
Capacitor
K29C-65AU2415
Motor
K20-1050B-1RSX
Drive Belt
K16-4L360
1 HP ONLY
1/2 HP ONLY
1 HP ONLY
Gear Pulley
K17-50095
