20
INSTALLATION
STEP 10

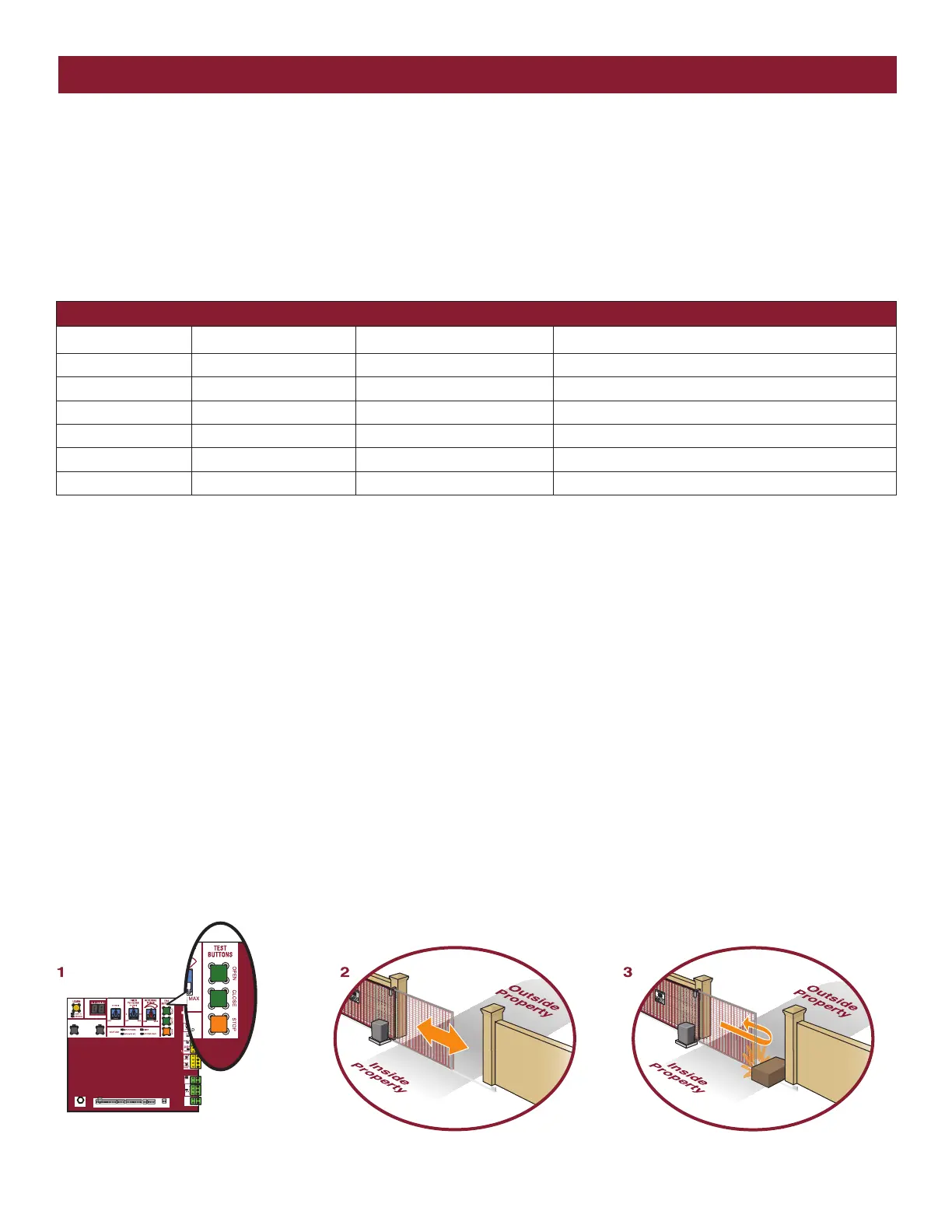

OBSTRUCTION TEST
STEP 9 (continued)
ADJUST THE HANDING AND LIMITS
The operator is equipped with an automatic obstruction sensing feature. If the gate encounters an obstruction during motion, the operator will
automatically reverse direction of the gate for a short time and then stop the gate. After any adjustments are made, test the operator:
1. Open and close the gate with the TEST BUTTONS, ensuring that the gate is stopping at the proper open and close limit positions.
2. Place a solid object between the open gate and a rigid structure. Ensure that the gate, the solid object, and the rigid structure can withstand the
forces generated during this obstruction test.
3. Run the gate in the close direction. The gate should stop and reverse upon contact with the solid object. If the gate does not reverse off the solid
object, reduce the force setting by turning the force control slightly counter-clockwise. The gate should have enough force to reach both the open
and close limits, but MUST reverse after contact with a solid object.
4. Repeat the test for the open direction.
ERASE THE HANDING
1. To erase the handing, press and hold the OPEN LEFT and OPEN RIGHT buttons simultaneously (5 seconds) until both the OPEN LEFT and OPEN
RIGHT LEDs blink rapidly and the operator beeps.
2. Release the buttons and the OPEN LEFT and OPEN RIGHT LEDs will blink slowly indicating the handing will need to be set.
HANDING LEDS
OPEN LEFT LED OPEN RIGHT LED OPERATOR MODE EXPLANATION
OFF OFF NORMAL MODE Control board not powered.
BLINKING BLINKING HANDING SETUP MODE Handing not set.
BLINKING ON HANDING SETUP MODE Handing set to the direction of the solid LED
ON BLINKING HANDING SETUP MODE Handing set to the direction of the solid LED
ON OFF NORMAL MODE Open left handing is set.
OFF ON NORMAL MODE Open right handing is set.
COMM
LINK
BA
ANTENNA
CURRENT
SENSOR
MOTOR DRIVE
RPM & LIMITS
ALARM
EXP.
BOARD
24 VAC IN
CLASS 2 SUPPLY
24 VAC
500 mA MAX
ID RESET
GND
BIPART
DELAY
2
4
6
8
OPEN
LEFT
OPEN
RIGHT
HANDING
