LED STATE DEFINITION
INPUT POWER OFF OFF state
ON AC power available
TIMER OFF The timer is disabled
ON The timer is enabled
1 blink/second The timer is running
2 blinks/second The timer is paused
8 blinks/second The timer is cancelled
GATE MOVING OFF The gate is stopped
ON The gate is opening or closing
1 blink/second E1 (single entrapment)
8 blinks/second E2 (double entrapment)
ACC PWR OVLD OFF OFF state
ON Accessory overload protector opened
STATUS LEDS
TEST BUTTONS

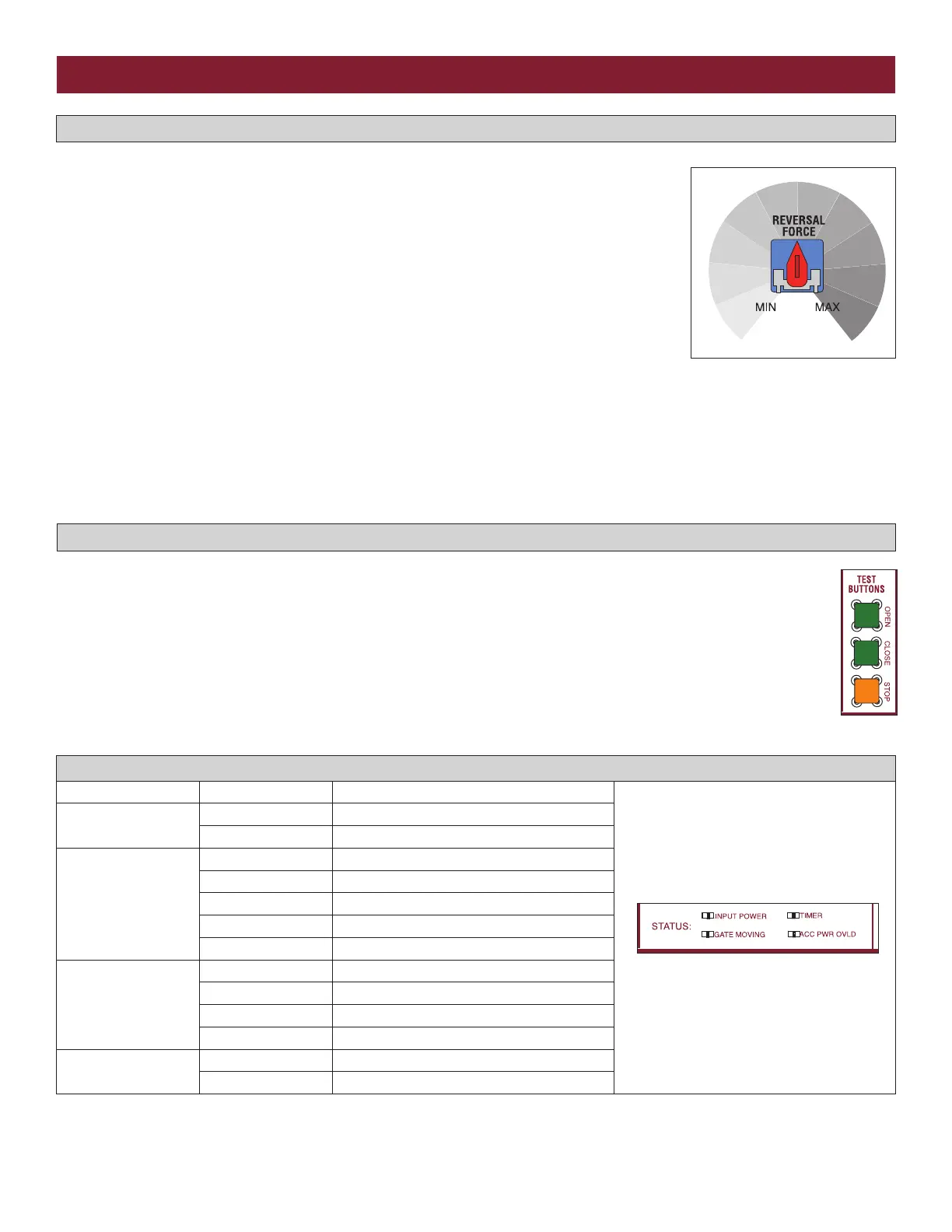

CONTROL BOARD OVERVIEW
FORCE DIAL
1
2
3
4
5
6
7
8
9
10
The force setting should be high enough that the gate will not reverse by itself nor cause nuisance
interruptions, but low enough to prevent serious injury to a person. The force setting is the same for both the
open and close gate directions.
Settings 1-3: Fixed force settings (the force will not adjust due to gate wear or temperature changes)
Settings 4-10: Automatically increase the force due to gate wear or temperature changes
ADJUST THE FORCE
1. Open and close the gate with the TEST BUTTONS, ensuring that the gate is stopping at the proper open and
close limit positions. If the gate is not stopping at the proper limits, adjust the force dial accordingly.
2. Place a solid object between the open gate and a rigid structure. Ensure that the gate, the solid object, and
the rigid structure can withstand the forces generated during this obstruction test.
3. Run the gate in the close direction. The gate should stop and reverse upon contact with the solid object. If
the gate does not reverse off the solid object, reduce the force setting by turning the force control slightly
counter-clockwise. The gate should have enough force to reach both the open and close limits, but MUST
reverse after contact with a solid object.
4. Repeat the test for the open direction.
Used to operate the gate (OPEN, STOP and CLOSE). Also used to view the code history (refer to the Troubleshooting section).
