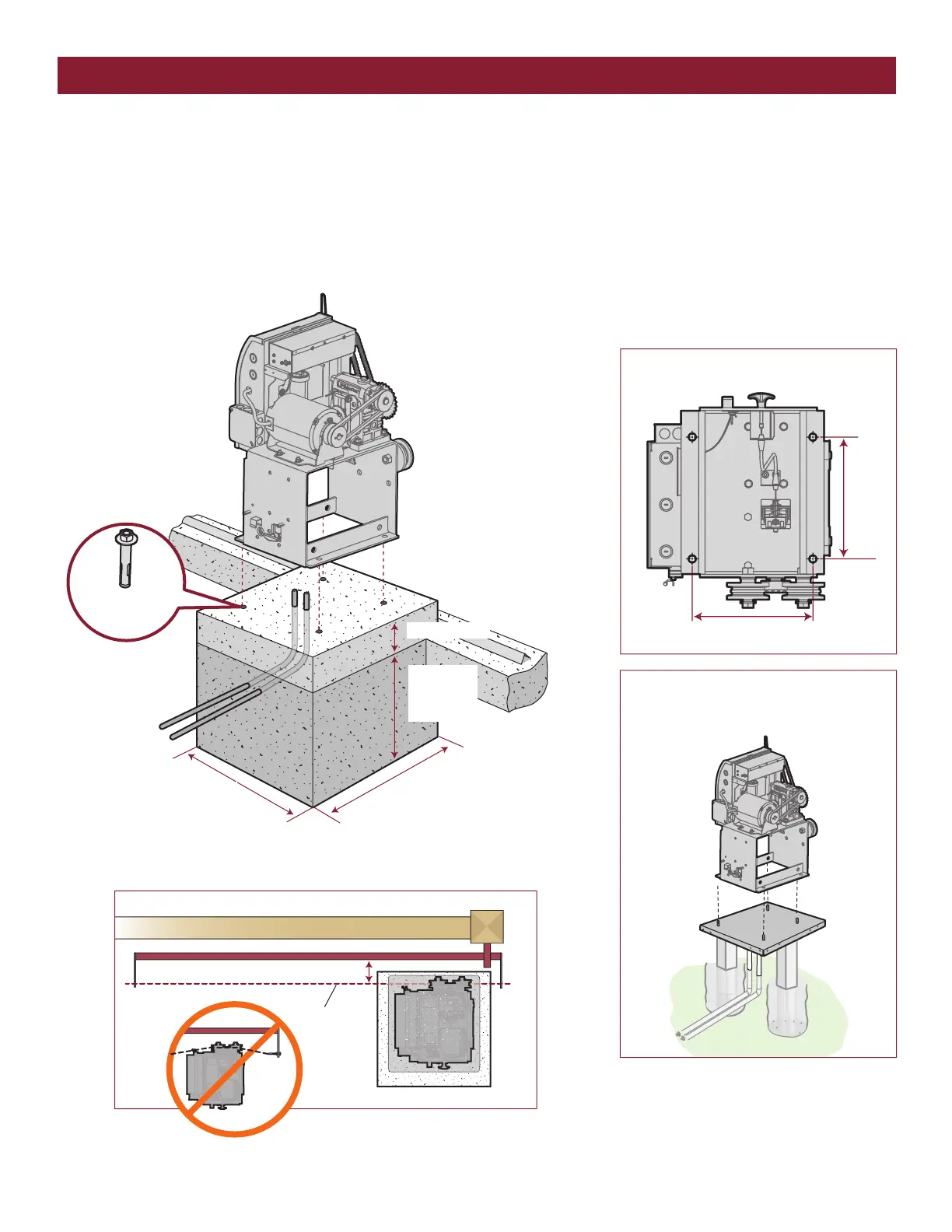

STEP 2
INSTALL THE OPERATOR
Attach the operator to the concrete pad with appropriate fasteners. The gate operator should be installed near the front roller of the gate or near the
back of the gate (in the OPEN position). The space between the gate and the output sprocket must be a minimum of 4 inches.
4 Concrete Anchors
1/2" x 3 1/2"
Below the frost
line. Check all
national and
local codes.
6" Above Ground
24" (61 cm)
24" (61 cm)
INSTALLATION
MOUNTING FOOTPRINT
10.4"
(26.4 cm)
10.3" (26.2 cm)
POST MOUNT
An alternative to a concrete pad is to post mount the
operator.
4" (10 cm)
(chain location)
(operator)
