11
TDC Trolley Assembly

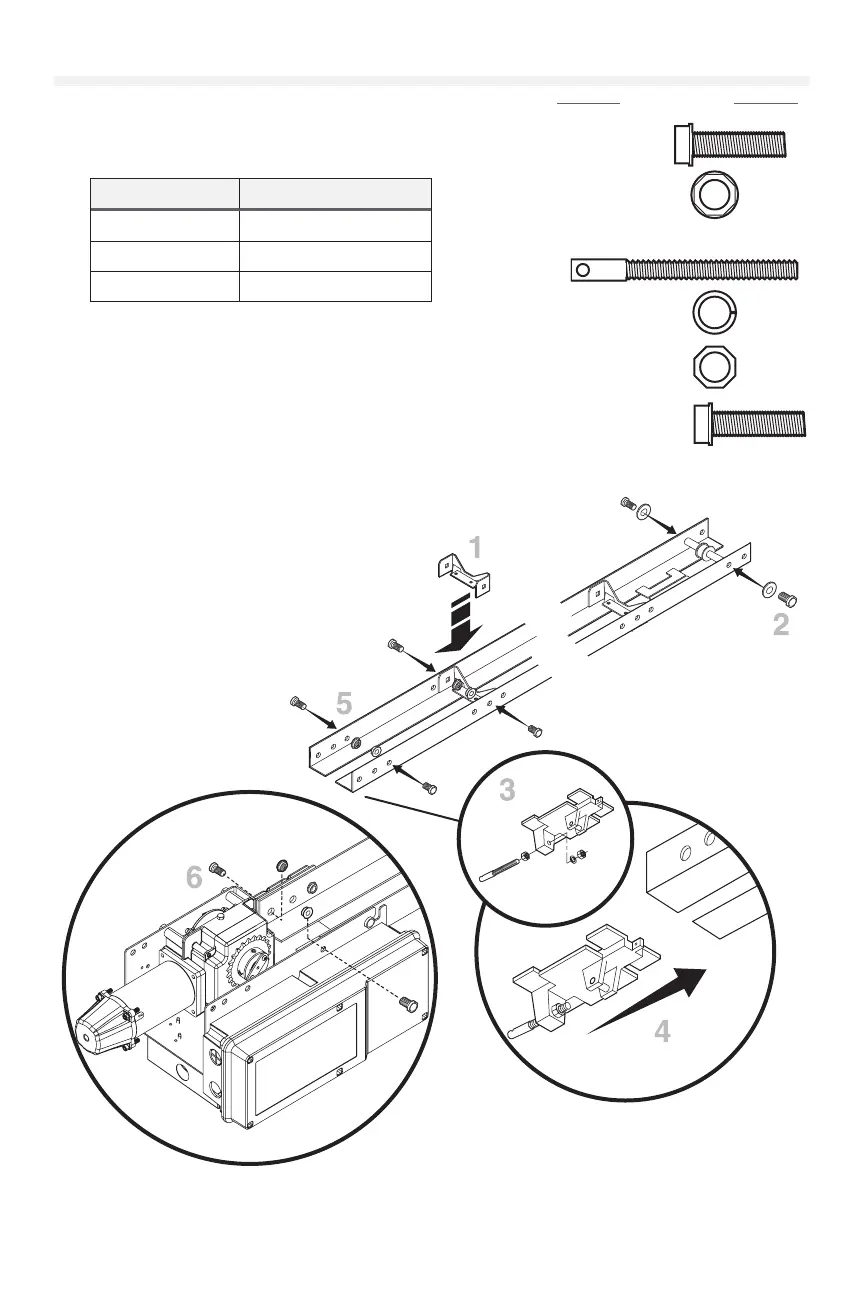

Assemble the Operator
1. Install the track spacers evenly over the length of the track. Fasten
the spacers to the track with bolt (A) and ange hex nuts (B).
Spacers Provided Track Length
2 8-14 foot
3 16-20 foot
4 22-24 foot
2. Install the front idler to the track with bolts (F) and washers (D).
3. Assemble the trolley with the take up bolt (C), hex nuts (E), and
lock washer (D).
4. Slide the trolley onto the track.
5. Insert bolts (A) into the end of the track and loosely thread the
nuts (B) onto the ends of the bolts.
6. Slide bolts (A) on the end of the track assembly into the “L” slot in the operator and tighten nuts (B). Insert bolts (A)
into the holes on the end of the track and the operator. Secure the track with nuts (B).
A
B
C
D
E
F
D
A
B
A
B
Take Up Bolt
HARDWARE
Bolt 3/8"-16
x 3/4"
Flange Hex Nut
3/8"-16
Lock Washer
3/8"
Hex Nut
3/8"-16
Bolt
3/8"-16 x 1"
A
B
C
D
E
F
