Chamberlain JDC - TDC Trolley

8

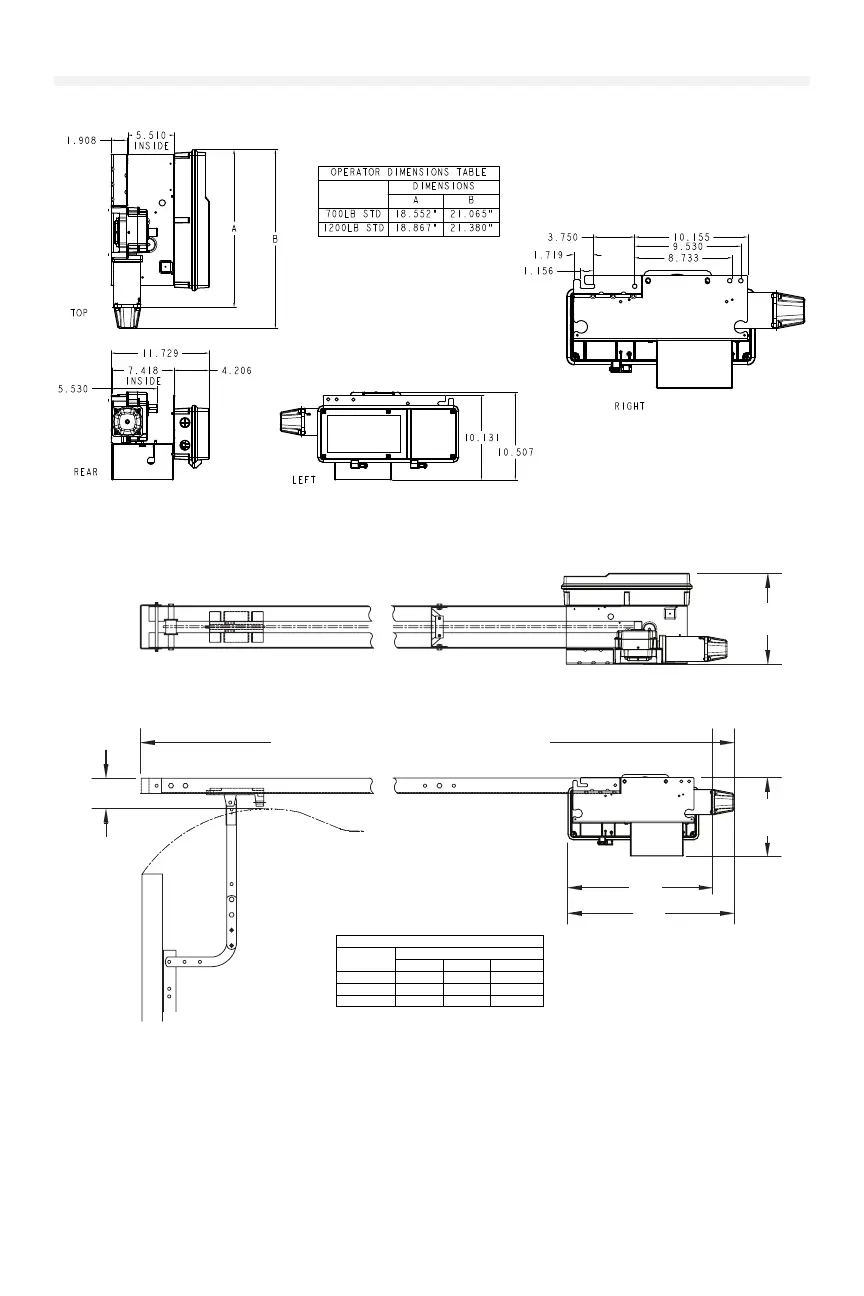

Operator Dimensions (continued)
TDC Trolley
10.5"
(26.67 cm)
*Door Height Plus C (minimum)
A
B
11.73"
(29.8 cm)
Highest Point of Door Travel
4"
(10.16 cm)
OPERATOR DIMENSIONS TABLE
DIMENSIONS
700LB STD
1200LB STD
1200LB EXT
18.552"
18.867"
18.867"
21.065"
21.380"
21.380"
4 ft (1.2 m)
4.3 ft (1.3 m)
4.3 ft (1.3 m)
A B C
