Chamberlain JDC - Operator

14

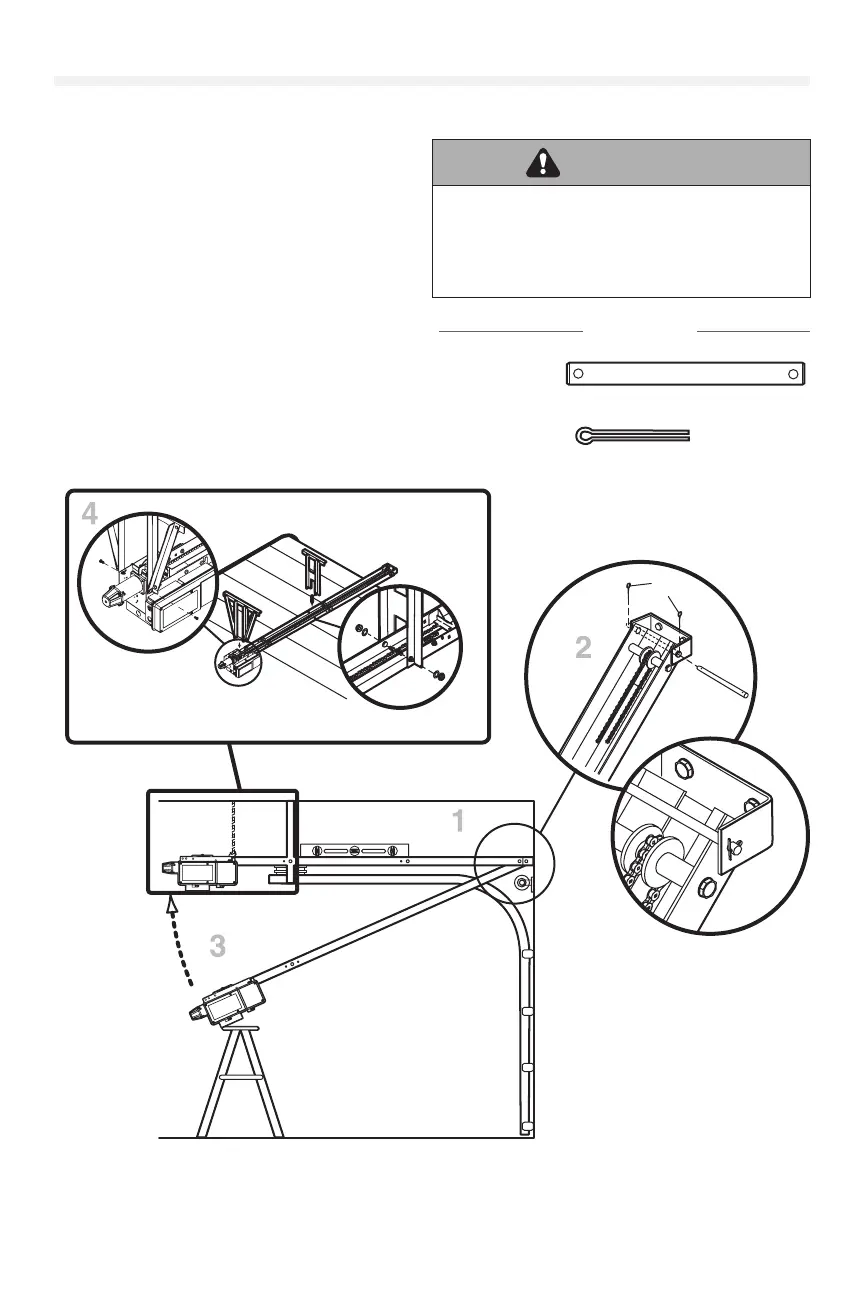

TDC Trolley Installation (continued)
Attach the Track to the Header Bracket and Hang the Operator
1. Align the track with the header bracket.
2. Insert the clevis pin through the track and
header bracket holes. Secure with the fasteners.
3. Swing the operator up and ensure the operator
is level.
4. Secure the operator using the appropriate
fasteners and locking hardware to support the
weight of the operator.
CAUTION
To avoid possible SERIOUS INJURY from a falling
operator:
• Fasten the operator SECURELY to structural
supports of the building.
• Concrete anchors MUST be used if installing ANY
brackets into masonry.
A
B
12 Typical Installation - Trolley
ATTACH THE TRACK TO THE HEADER BRACKET AND HANG THE OPERATOR
1
4
3
2
A
B
4
Secure the operator using the appropriate fasteners and
locking hardware to support the weight of the operator.
To avoid possible SERIOUS INJURY from a falling operator:
• Fasten the operator SECURELY to structural supports of the
building.
• Concrete anchors MUST be used if installing ANY brackets
into masonry.
1
Align the track with the header bracket.
2
3
Insert the clevis pin through the track and header bracket
holes. Secure with the fasteners.
Swing the operator up and ensure the operator is level.
HARDWARE
Clevis Pin (1)
Cotter pins (2)
A
B
Need new image
of the operator head to trolley
12 Typical Installation - Trolley
ATTACH THE TRACK TO THE HEADER BRACKET AND HANG THE OPERATOR
1
4
3
2
A
B
4
Secure the operator using the appropriate fasteners and
locking hardware to support the weight of the operator.
To avoid possible SERIOUS INJURY from a falling operator:
• Fasten the operator SECURELY to structural supports of the
building.
• Concrete anchors MUST be used if installing ANY brackets
into masonry.
1
Align the track with the header bracket.
2
3
Insert the clevis pin through the track and header bracket
holes. Secure with the fasteners.
Swing the operator up and ensure the operator is level.
HARDWARE
Clevis Pin (1)
Cotter pins (2)
A
B
Need new image
of the operator head to trolley
HARDWARE
Clevis Pin (1)
Cotter pins (2)
A
B
