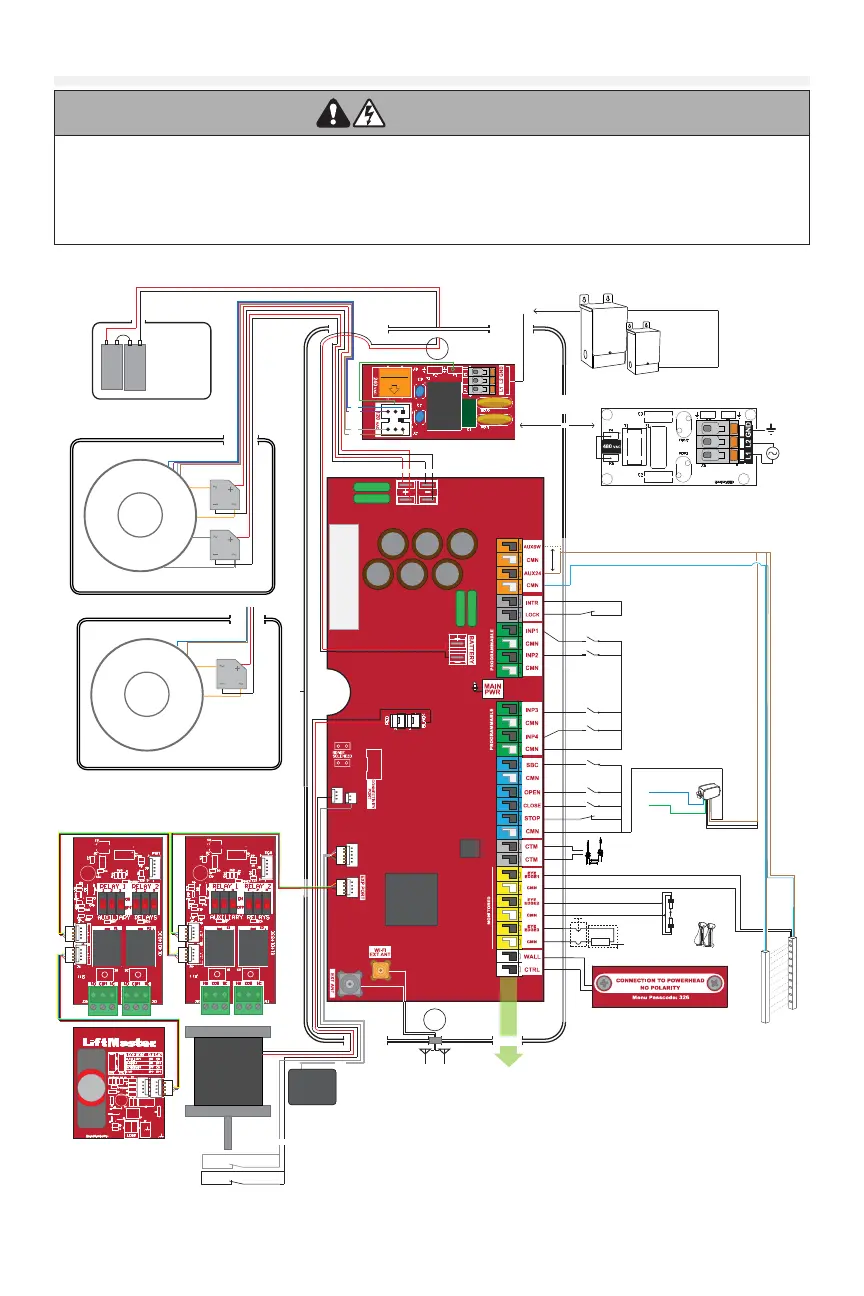

Wiring Diagram
WARNING
To prevent possible SERIOUS INJURY or DEATH:
• Disconnect electric power and/or battery BEFORE
installing, performing ANY adjustments, or
maintenaince. Installation and ALL maintainance
MUST be performed by a trained door systems
technician.
For continued protection against re:
• Replace ONLY with fuse of same type and rating.
Motor
Motor Power
Ancillary (non-monitored) devices
and dry contact inputs NO/NC.
DRY CONTACT NOTE:
INTR LOCK jumper MUST
be removed if switch is added.
CLASS 2 SUPPLY +24V
CABLE TENSION
MONITORS
OPEN
SBC
CLOSE
STOP
Open - Output 1 (Green)
Close - Output 2 (Blue)
50-HERK2
Black
NOTE: STOP - CMN jumper MUST be
removed if a 3-Button Station is added.
ACCESSORY POWER 24VDC, 1A
Blue
Brown
CPS-U, CPS-UN4,
CPS-OPEN4, OES-RD16
LC36M
Tx
Rx
LC36M
White/Black
To EYE/EDGE
To CMN
White
White
White/Black
Blue
Brown
Accessories may connect to the regular or switched port.
Switched is turned off at loss of AC to preserve battery life.
Optional Accessories
Resistive Edge
Photo Eyes
Light Curtain
Field Wiring
30
30
30 30
ENCODER
HOIST
BRAKE
FUSE
Conduit
Jumpers must be
placed if cables
are not connected
Brake
(Phase 2)
Hoist Switch
Gray
Factory
Conduit
Wired
Factory
Conduit
Wired
Field Wiring
Conduit
BlackGray
Plug transformer connector into
the appropriate voltage that
matches the applied AC voltage
120V AC or 240V AC EMI FILTER
WARNING
Observe Voltage
AC Input
DC Input from
Transformer/Rectifier
Replaceable 30A
Automotive Fuses
(One pair for 700, two pairs for 1200)
Battery Power Conduit
Black Black
Red Red
Black
Red
BATTERY BOX
Optional Stepdown Transformer
To use 3-Phase Power, tap any
two phase legs. Use proper
phase balancing.
Battery Accessory SKUs:
DC45AH- 4.5Ah Batteries
DC7AH- 7.0Ah Batteries
24Vdc
Battery Power Conduit
Blue
Purple
Gray
Brown
+
+
-
-
1200 Model: Two Rectifiers
Rectifier
Rectifier
Transformer
E-BOX
TRANSFORMER BOX, 1200
Orange
Orange
White
White
Encoder
Module
480V AC on 480V EMI FILTER
480V comes factory wired
OR
600VAC to 120VAC
OR
208VAC to 120VAC
XF208VDC and XF600VDC
No polarity
700 Model: One Rectifier
Rectifier
Transformer
TRANSFORMER BOX, 700
Orange
Orange
WARNING
To prevent possible SERIOUS INJURY or DEATH:
Disconnect electric power and/or battery BEFORE installing, performing ANY adjustments, or maintenance.
Installation and ALL maintenance MUST be performed by a trained door systems technician.
For continued protection against fire:
Replace ONLY with fuse of same type and rating
