Champion Eseries - Hot Water Coil for C3, EUCCW

216
DESCRIPTION
REV.
DATE BY
The Dishwashing Machine Specialists
CHAMPION INDUSTRIES
UNLESS OTHERWISE NOTED
X.XXX ` 0.005"
FRAC. ` 1/64"
ANGULAR ` 0.30'
ALL DIM. ARE IN INCHES
THIS DRAWING IS THE
PROPERTY OF AND SHALL
NOT BE REPRODUCED
FOR ANY PURPOSE
WITHOUT THE CONSENT OF
SHOP TOLERANCES
TITLE
B
SHEET OF
REV.
X.XX ` 0.01"
X.X ` 0.1"
ECN
PART NO.
REV.
THIS IS A PRO/ENGINEER DRAWING,
DO NOT ALTER WITH PENCIL OR AUTOCAD
1 1
SCALE: 3/16
-
453494
EUCCW

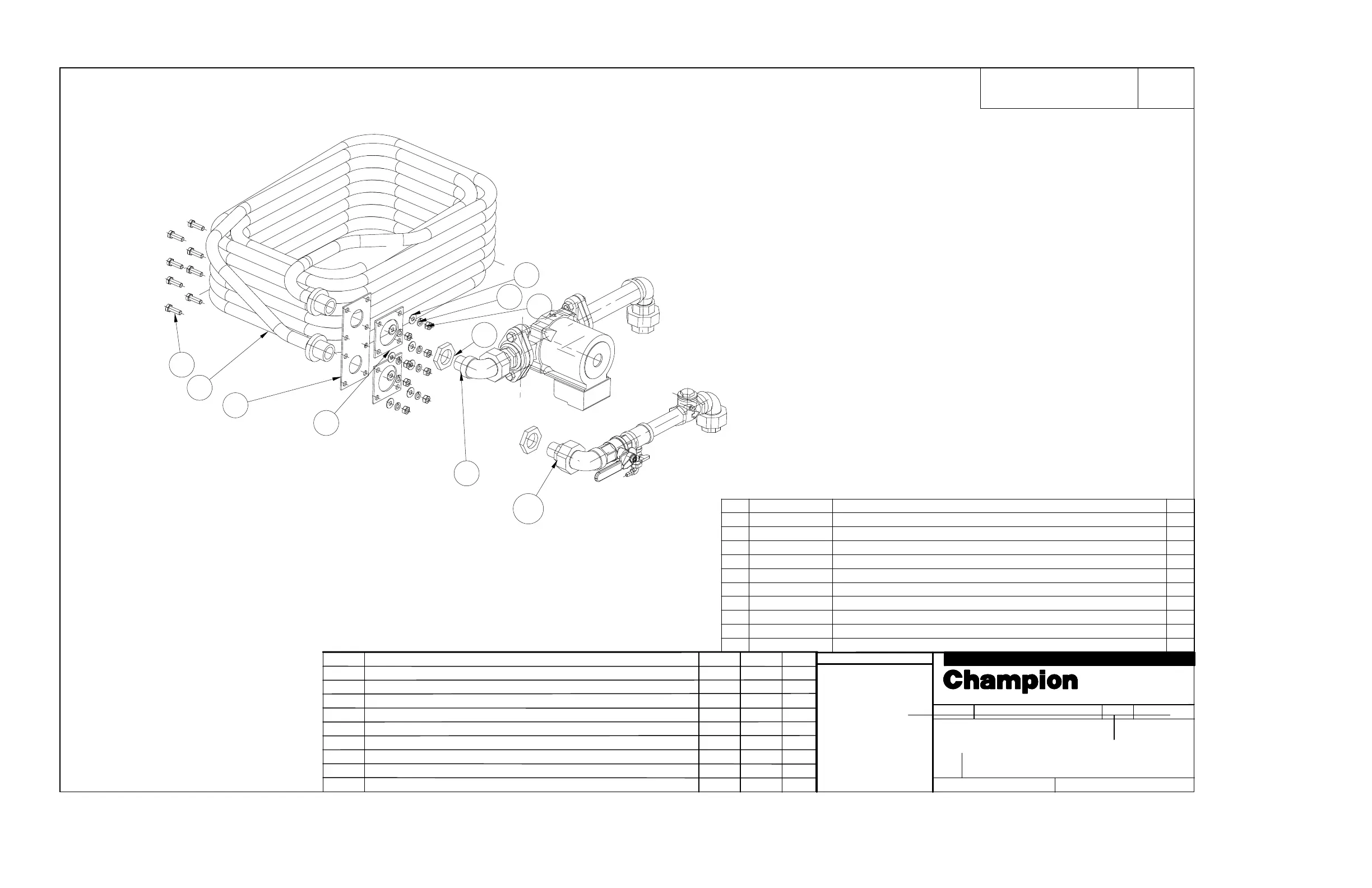

HEAT SYSTEM,C3 HWCOIL
21-Sep-10
DATE:
M.LEFTWICH
DR.BY:
. .
.
. .
453494 -
ITEM
PART #
DESCRIPTION QTY
1 100154
HEX PLAIN NUT,5/16-18 SST
8
2 100585 LOCKNUT,1" NPT,BRASS 2
3 100740
CAP SCREW,HEX HEAD,5/16-18 X 1 SST
8
4 102376
WASHER,FLAT,5/16x3/4x.05 SST
8
5 106013
WASHER,LOCK,5/16 SPLIT,SST
8
6 108345
GASKET,HEATER/STANDPIPE
2
7 331799 PLATE,HOT WATER COIL MOUNTING 1
8 333939 COIL WELDMENT,HOT WATER,C3,EUCCW 1
9 601772 PIPING ASSY,WATER-IN,C4 HWC,NUCCW 1
10 601876 PIPING ASSY,OUTLET,HWC,C4 EUCCW 1
1
2
3
4
5
6
7
8
10
9
