Champion Eseries - Electric Booster Element Configurations

87

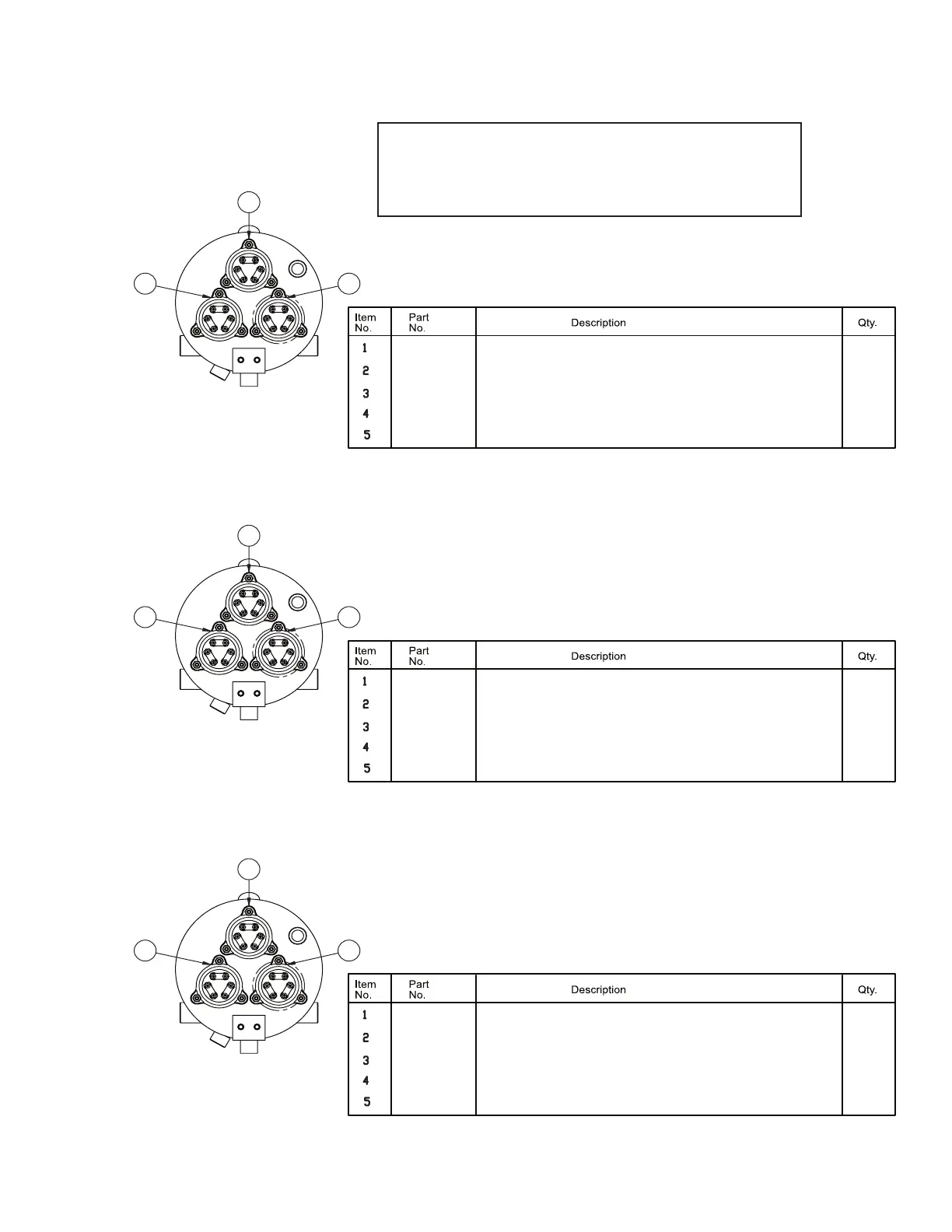

Electric Booster Element Conguration
BOOSTER ASSY,ELEC,R-L,28kW@480V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
108579 HEATER 9KW, 480V,3PH BOOSTER 2
111234 HEATER 10KW, 480V,3PH BOOSTER 1
414331 TANK, BOOSTER 1
70°F / 39° Rise
EUCC-4 / EUCC-3
BOOSTER ASSY,ELEC,R-L,28kW@240V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
111305 HEATER 9KW, 240V,3PH BOOSTER 2
111233 HEATER 7.5KW10KW, 208V-240V,3PH BOOSTER 1
414331 TANK, BOOSTER 1
70°F / 39° Rise
EUCC-4 / EUCC-3
BOOSTER ASSY,ELEC,R-L,28kW@208V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
111334 HEATER 9KW/12KW, 208/240V,3PH BOOSTER 2
111232 HEATER 10KW, 208V,3PH BOOSTER 1
414331 TANK, BOOSTER 1
70°F / 39° Rise
EUCC-4 / EUCC-3
111383 HEATER 10 KW, 575/60/3
112061 HEATER 12 KW, 575/60/3
111383 HEATER 10 KW, 575/60/3
112061 HEATER 12 KW, 575/60/3
111383 HEATER 10 KW, 575/60/3
112061 HEATER 12 KW, 575/60/3
NOTE:
The location of a booster heater element is
critical for the proper repair of the booster.
VERIFY THE LOCATION OF ITEM NO. 3 & 4
