Champion Eseries - Page 94

86

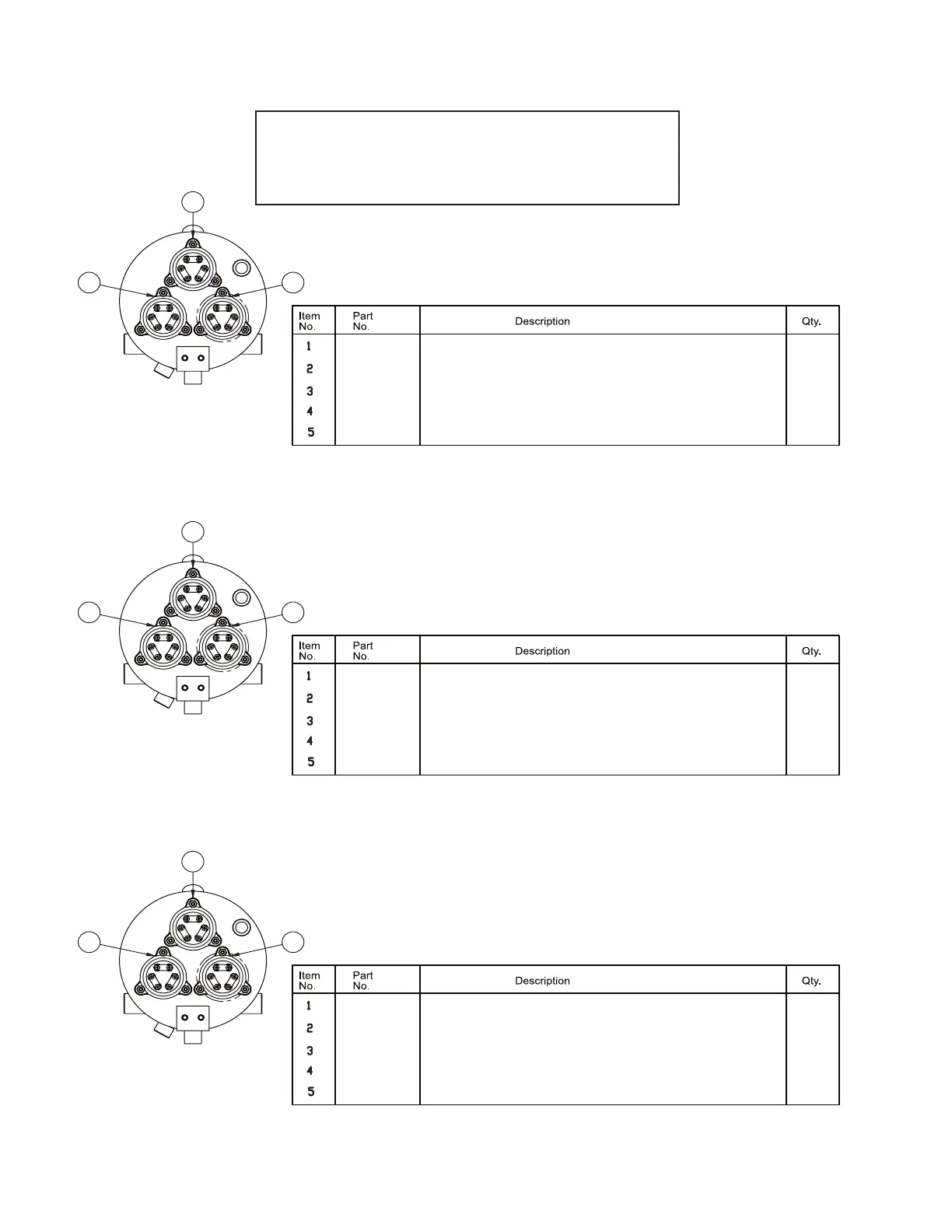

Electric Booster Element Conguration
BOOSTER ASSY,ELEC,R-L,16kW@480V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
114031 HEATER 6KW, 480V,3PH BOOSTER 1
111237 HEATER 5KW, 480V,3PH BOOSTER 2
414331 TANK, BOOSTER 1
40°F / 22° Rise
EUCC-4 / EUCC-3
BOOSTER ASSY,ELEC,R-L,16kW@240V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
114030 HEATER 6KW, 240V,3PH BOOSTER 1
111236 HEATER 5KW, 240V,3PH BOOSTER 2
111383 HEATER 5KW, 575/60/3
114032 HEATER 6KW, 575/60/3
111383 HEATER 5KW, 575/60/3
114032 HEATER 6KW, 575/60/3
111383 HEATER 5KW, 575/60/3
114032 HEATER 6KW, 575/60/3
414331 TANK, BOOSTER 1
40°F / 22° Rise
EUCC-4 / EUCC-3
BOOSTER ASSY,ELEC,R-L,16kW@208V
3
3
4
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
107909 HEATER 6KW/8KW, 208/240V,3PH BOOSTER 1
111235 HEATER 5KW/6.6KW, 208/240V,3PH BOOSTER 2
414331 TANK, BOOSTER 1
40°F / 22° Rise
EUCC-4 / EUCC-3
NOTE:
The location of a booster heater element is
critical for the proper repair of the booster.
VERIFY THE LOCATION OF ITEM NO. 3 & 4
