Champion Eseries - Electric Booster Element Configurations

82
BOOSTER ASSY,ELEC,R-L,15kW@208V
BOOSTER ASSY,ELEC,R-L,15kW@240V
BOOSTER ASSY,ELEC,R-L,15kW@480V
3
3
3
3
3
3
3
3
3
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
111235 HEATER 5KW_6.5KW, 208-240V, 1PH BOOSTER 3
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
111236 HEATER 5KW, 240V,3PH BOOSTER 3
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
111237 HEATER 5KW, 480V,3PH BOOSTER 3
414331 TANK, BOOSTER 1
40°F / 22° Rise
EUCCW-4 / EUCC-4
EUCCW-6 / EUCC-6
40°F / 22° Rise
EUCCW-4 / EUCC-4
EUCCW-6 / EUCC-6
40°F / 22° Rise
EUCCW-4 / EUCC-4
EUCCW-6 / EUCC-6
111384 HEATER 5 KW, 575/60/3
111384 HEATER 5 KW, 575/60/3
111384 HEATER 5 KW, 575/60/3

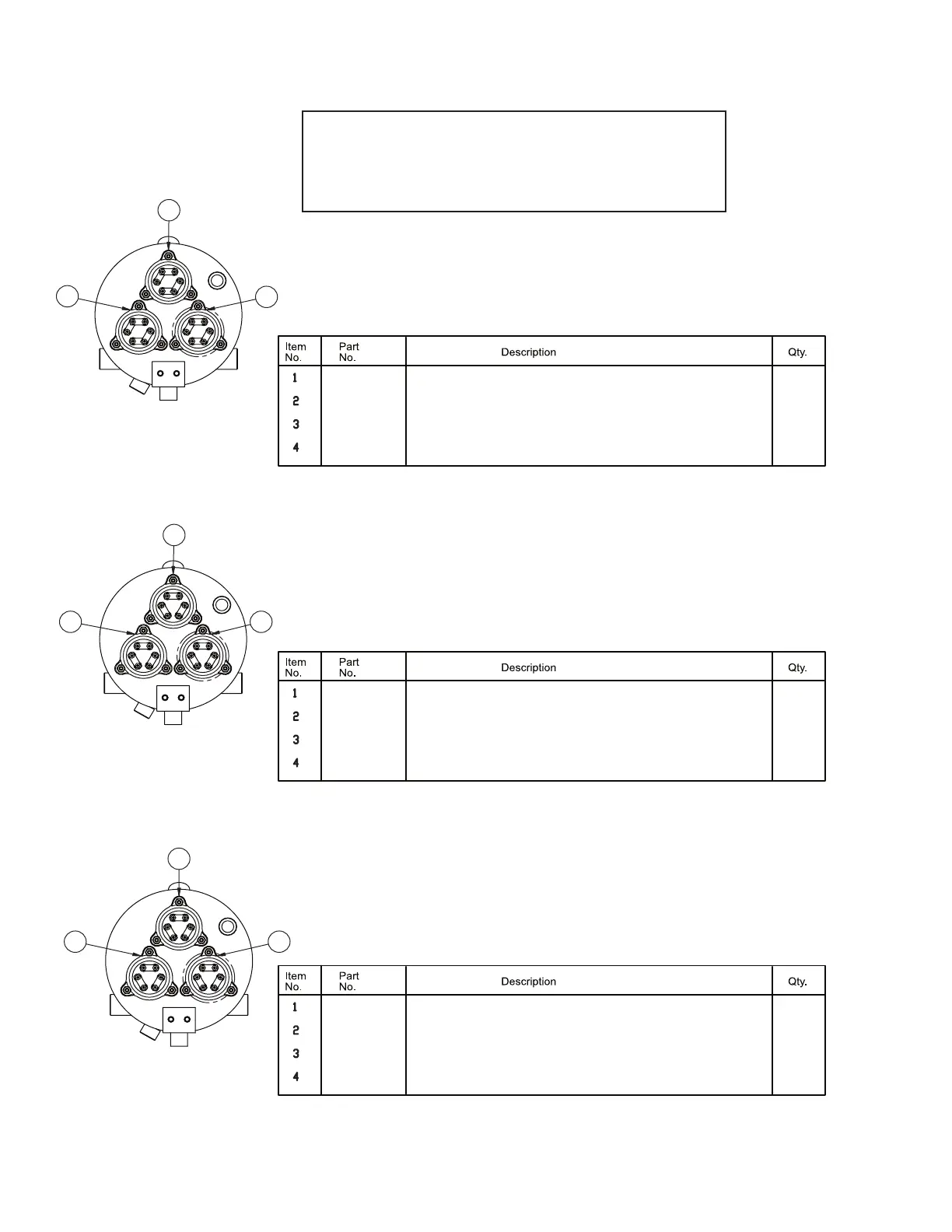

Electric Booster Element Conguration
NOTE:
The location of a booster heater element is
critical for the proper repair of the booster.
VERIFY THE LOCATION OF ITEM NO. 3
