Champion Eseries - Section Assembly

28

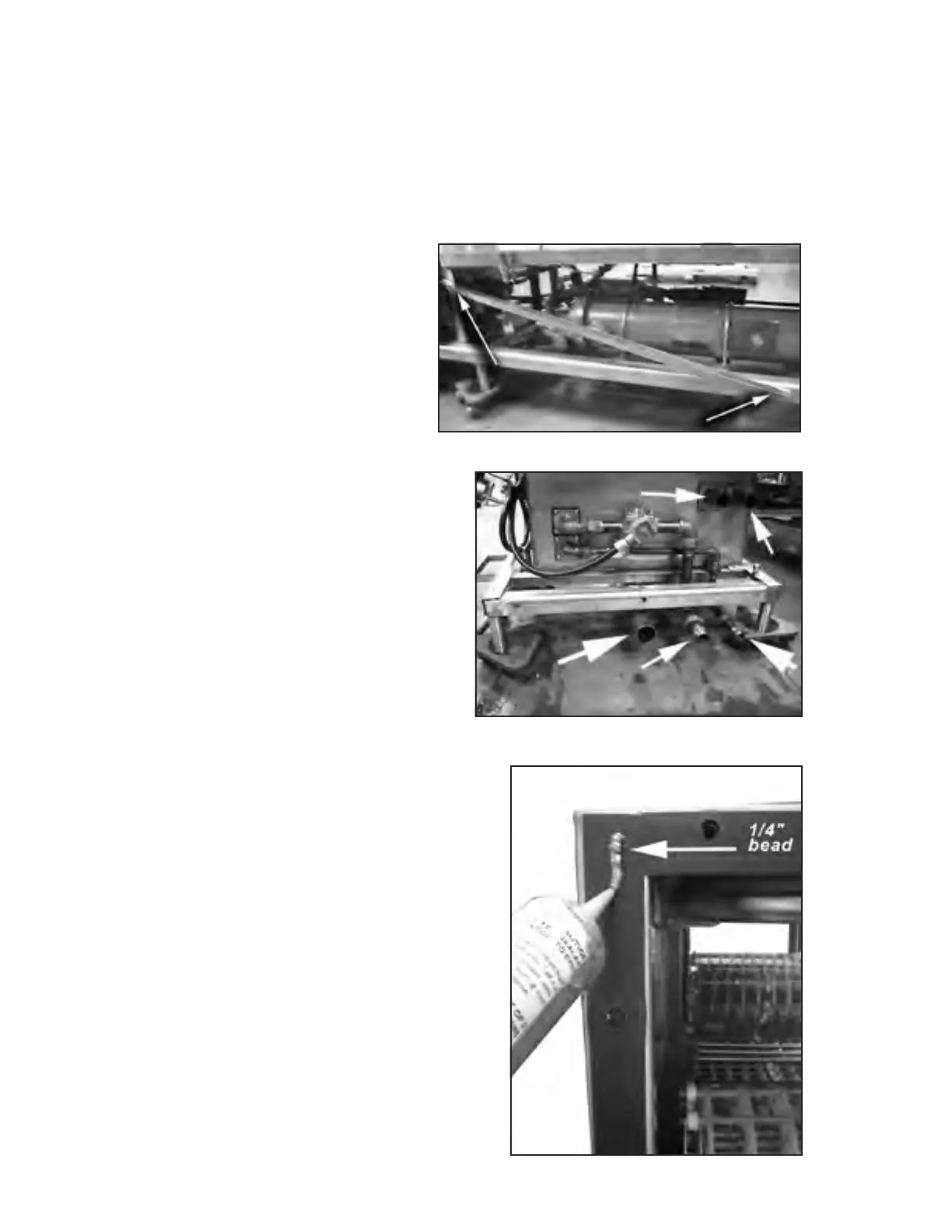

19. Remove the shipping braces from
the sections.
20. Identify the location of piping
between the sections.
21. Check the height of each section
and determine which section is the
highestduetooorvariations.
22. Set the "C" section and adjust to its
minimum height.
23. Level the "C" section side to side
and front to back in several places
with a bubble level.
24. The remaining sections are leveled
in relation to "C" section.
Do not adjust the "C" section
too high.
25. Apply a 1/4" bead of FOOD
GRADE sealant to the foam
gaskets on each section.
26. Move the next section close to
the "C". Adjust the feet of this
section to align the 20 bolt holes
around the hood.
27. Slide the connecting hoses and
clamps on drain pipes and cross-
owpipes.Donottighten
at this time.
28. Level each section side to side
and front to back making sure
the section connecting bolt holes
align.
Section Assembly
APPROVED SEALANT WAS SUPPLIED IN
THE HARDWARE KIT.
DO NOT SUBSTITUTE ANOTHER
TYPE OF SEALANT.
Installation Instructions
Section Assembly
