Champion Eseries - Section Assembly

35

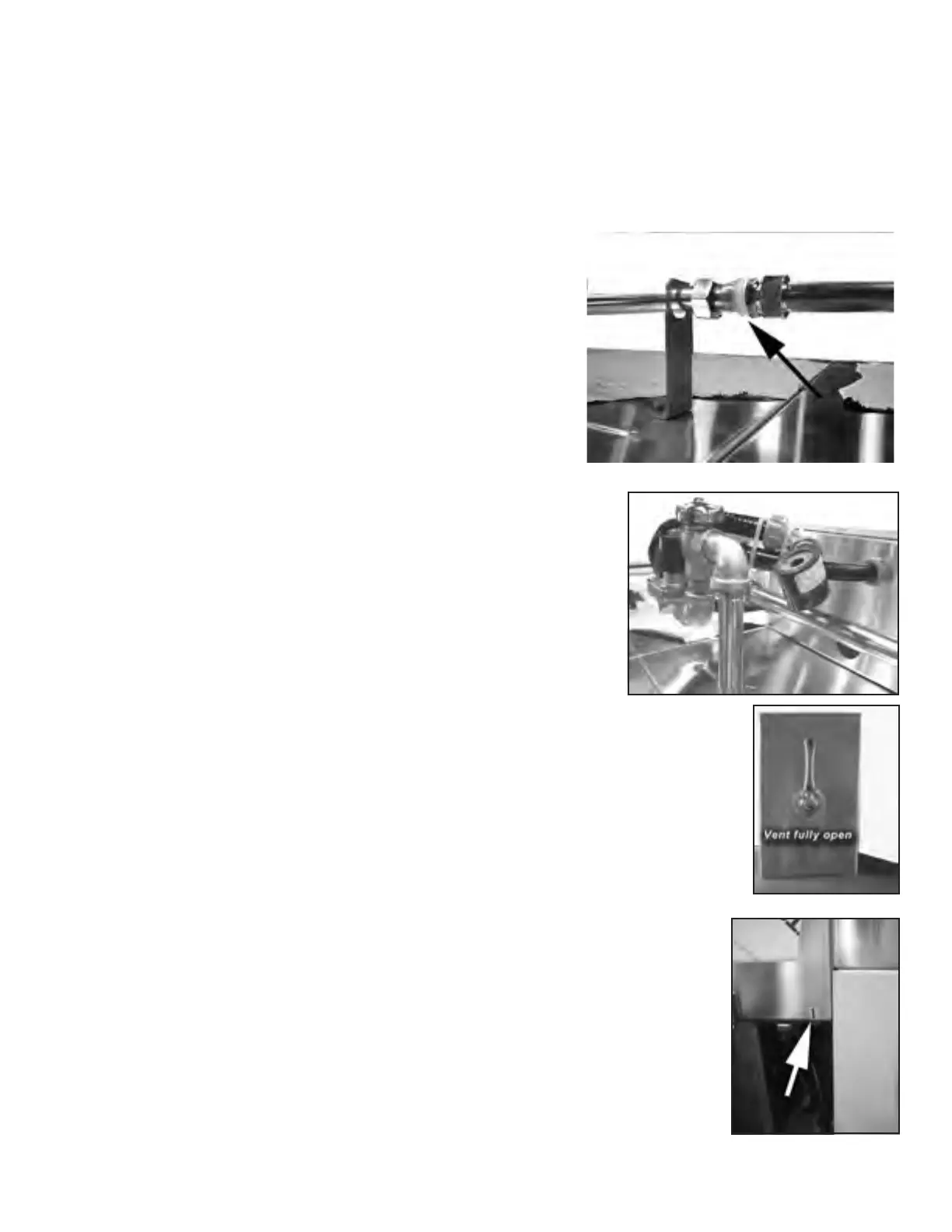

26. Checkandtightenthellpiping
compressionttings.
27. Make sure solenoid coils are positioned
correctly on the valve assemblies.
28. Vent stacks must be placed on the hood
with vent handles facing the front
of the dishwasher.
29. Panels must be rechecked for missing
parts, and the location numbers checked
with the numbers located on the
dishwasher.
30. Tanks must be checked for debris and
metal tailings must be vacuumed out of
the machine.
31. Curtains must be installed. Install
thecurtains. Long curtains hang in hooks
on each end of the machine. Short
curtains hang in hooks on the inside of
the machine.
32. Scrap screens, scrap baskets must be
checked and installed in the dishwasher.
Installation Instructions
Section Assembly
Section Assemby
