Order of Assembly

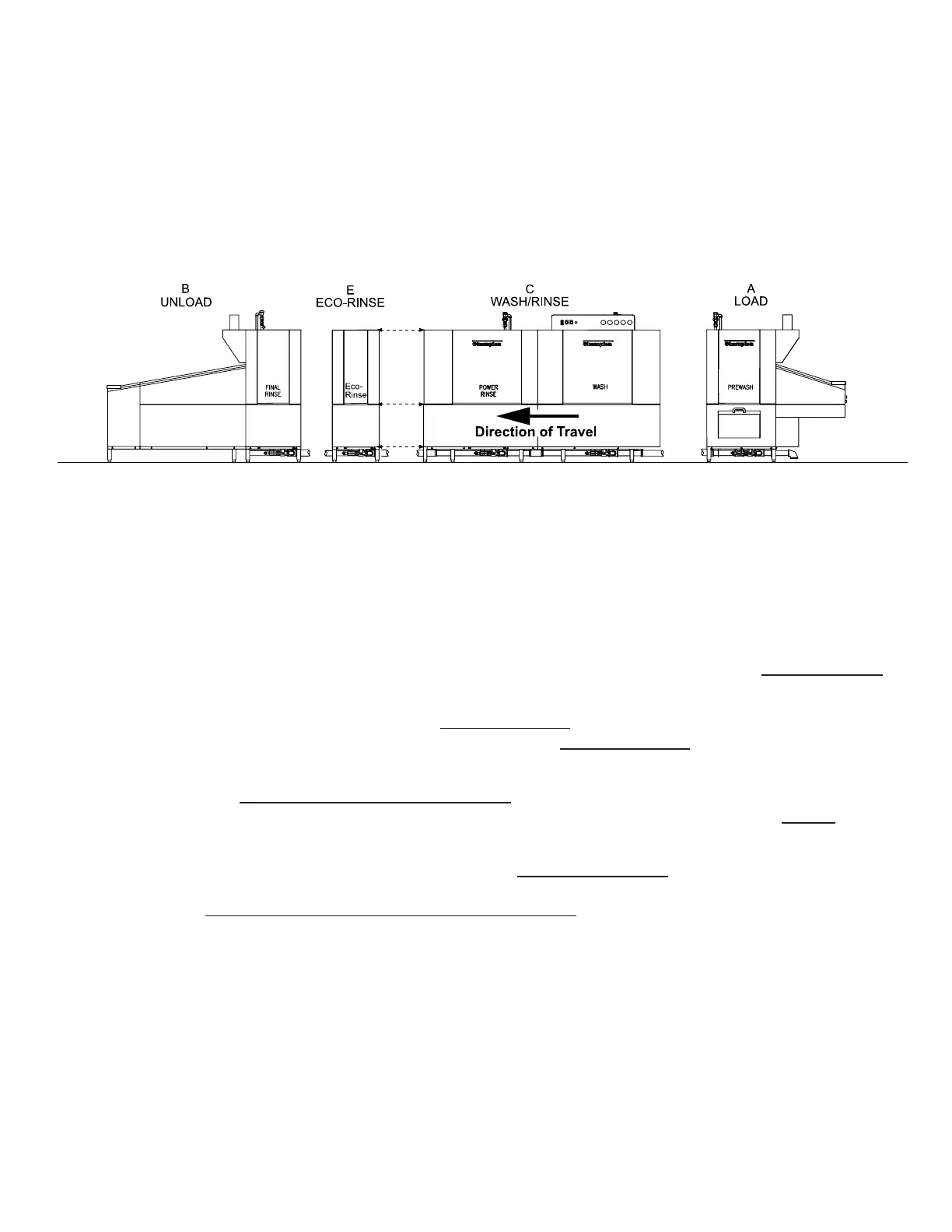

12. The illustration above shows the correct placement of the sections.
13. The recommended spacing between sections is 2 feet. Of course, the size of your dishroom
dictates the actual section spacing.
14. Study the illustration above. Note that each section name also contains a designated letter,
(A, B, C, E).
15. The illustrated dishwasher is a right-to-left, (R-L)congurationwhichindicatesthatsoiled
wares enter on the right and exit on the left. A left-to-right, (L-R), dishwasher is the reverse
of a R-L dishwasher.
16. The "E" or Eco-rinse section is an option and may not be a part of your installation.The
dashed lines between the "C" and "E" sections indicate that the "E" section usually ships
as part of "C" section.
17. The "C" section ships as a single assy in 4, 6, or 8 ft. lengths.
18. The Order of Assembly should start with the "C" section; however, it is okay to start with
the "B" section if the plumber is ready to make the hot water and steam connections.
Installation Instructions
Order of Assembly
