Champion Eseries - Section Assembly

37
Connect the dishwasher internal electric wiring
1. Wires,ex-tite,andsomecomponentswere
disconnected and pulled back to
each section, then junction boxes were
closed.

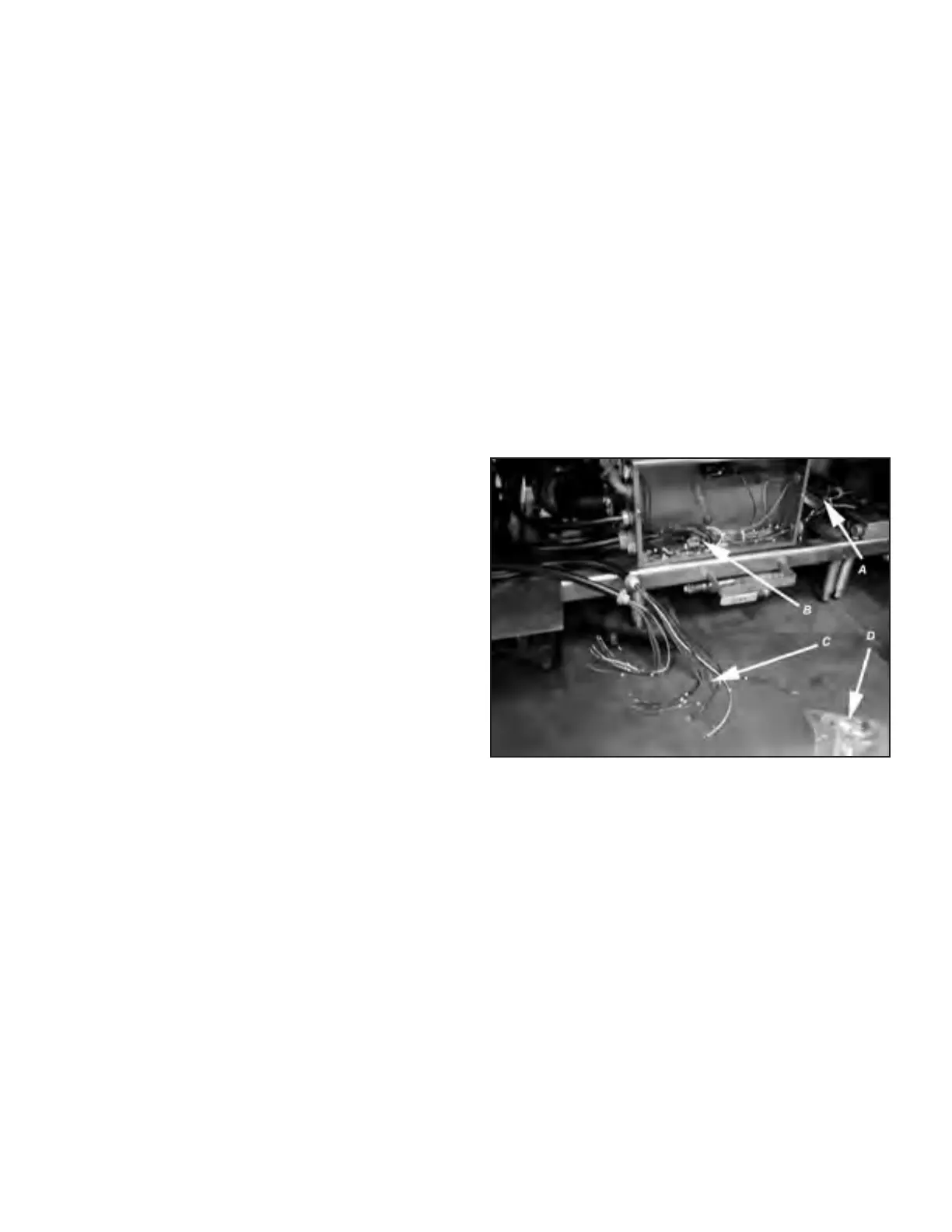

2. Openalljunctionboxes,identifytheex-tite
conduit connections, (A)
roll-out wire bundles, (B), and match
wire numbers attached on wires, (C).
3. Connecttheex-titeconduittotheir
associated junction boxes.
4. Connect matching wires using the
supplied wire nut connectors, (D)
included in the hardware kit.
5. Connect #2 and any white wires
together. All of these wires are
neutral returns.
6. Close all junction boxes.
Section Assemby
Installation Instructions
Section Assembly
