BOOSTER ASSY, ELEC,R-L,18kW@208V
BOOSTER ASSY,ELEC,R-L,18kW@240V
BOOSTER ASSY,ELEC,R-L,18kW@480V
3
3
3
3
3
3
3
3
3
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
107909 HEATER 6KW_8KW, 208-240V, 3PH BOOSTER 3
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
114030 HEATER 6KW, 240V, 3PH BOOSTER 3
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST 9
106482 WASHER, LOCK, 1/4 SPLIT SST 9
114031 HEATER 5KW, 480V,3PH BOOSTER 3
414331 TANK, BOOSTER 1
40°F / 22° Rise
EUCCW-8 / EUCC-8
40°F / 22° Rise
EUCCW-8 / EUCC-8
40°F / 22° Rise
EUCCW-6 / EUCC-8
111384 HEATER 5 KW, 575/60/3
111384 HEATER 5 KW, 575/60/3
111383 HEATER 10 KW, 575/60/3
NOTE:
The location of a booster heater element is
critical for the proper repair of the booster.
VERIFY THE LOCATION OF ITEM NO. 3

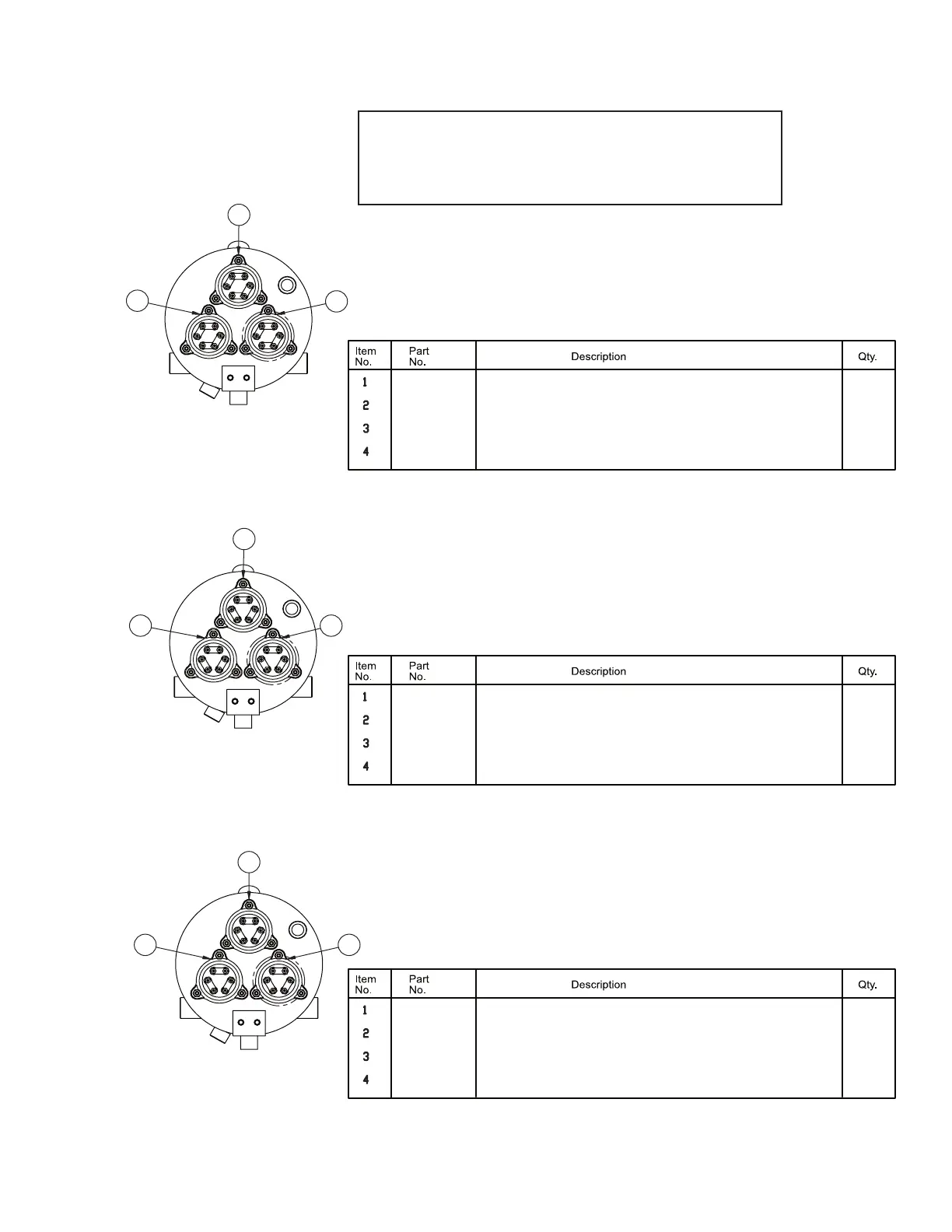

Electric Booster Element Conguration
