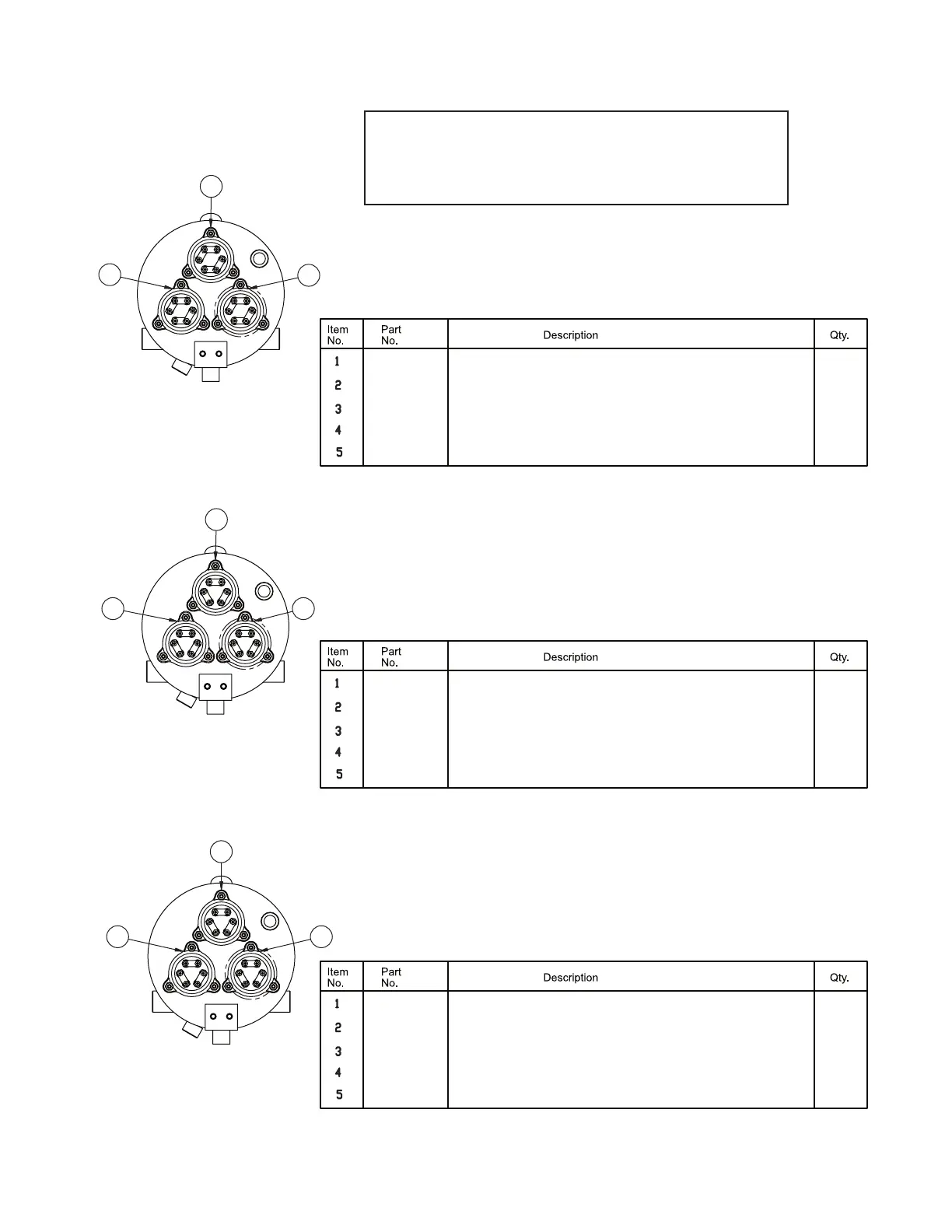

Electric Booster Element Conguration
NOTE:
The location of a booster heater element is
critical for the proper repair of the booster.
VERIFY THE LOCATION OF ITEM NO. 3 & 4
BOOSTER ASSY, ELEC,R-L,32kW@208V
BOOSTER ASSY,ELEC,R-L,32kW@240V
BOOSTER ASSY,ELEC,R-L,32kW@480V
3
3
4
3
4
3
3
4
3
100003 HEX PLAIN NUT, 1/4-20 SST
9
106482 WASHER, LOCK, 1/4 SPLIT SST
9
111234 HEATER 10KW, 480V,3PH BOOSTER 2
112060 HEATER 12KW, 480V, 3PH BOOSTER 1
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST
9
106482 WASHER, LOCK, 1/4 SPLIT SST
9
111233 HEATER 7.5KW_10KW 208/240V,3PH BOOSTER 2
111334 HEATER 9KW_12KW, 208/240V,3PH BOOSTER 1
414331 TANK, BOOSTER 1
100003 HEX PLAIN NUT, 1/4-20 SST
9
106482 WASHER, LOCK, 1/4 SPLIT SST
9
111232 HEATER 10KW 208V,3PH BOOSTER 2
112059 HEATER 12KW, 208V, 3PH BOOSTER 1
414331 TANK, BOOSTER 1
70°F / 39° Rise
EUCCW-8 / EUCC-8
70°F / 39° Rise
EUCCW-8 / EUCC-8
70°F / 39° Rise
EUCCW-8 / EUCC-8
111383 HEATER 10 KW, 575/60/3
112061 HEATER 12 KW, 575/60/3
111383 HEATER 10 KW, 575/60/3
112061 HEATER 12 KW, 575/60/3
