15
34. An important safety feature
designed to stop the con-
veyor belt during operation is
the shut-off shelf.
This device is located at
the very end of the unload
section.
35. The shut-off shelf moves
backward when wares
contact it as the belt
moves forward.
36. The shut-off shelf stops
the conveyor belt.
It also turns the blower
dryer heat off (if equipped).
The wash pumps continue
to operate when the shut-off
moves backward to stop
the conveyor belt.
37. The unload person may
now remove the wares
from their end of the
dishwasher.
38. The conveyor belt begins
moving again when the
person moves the shut-off
shelf back to its original
position.

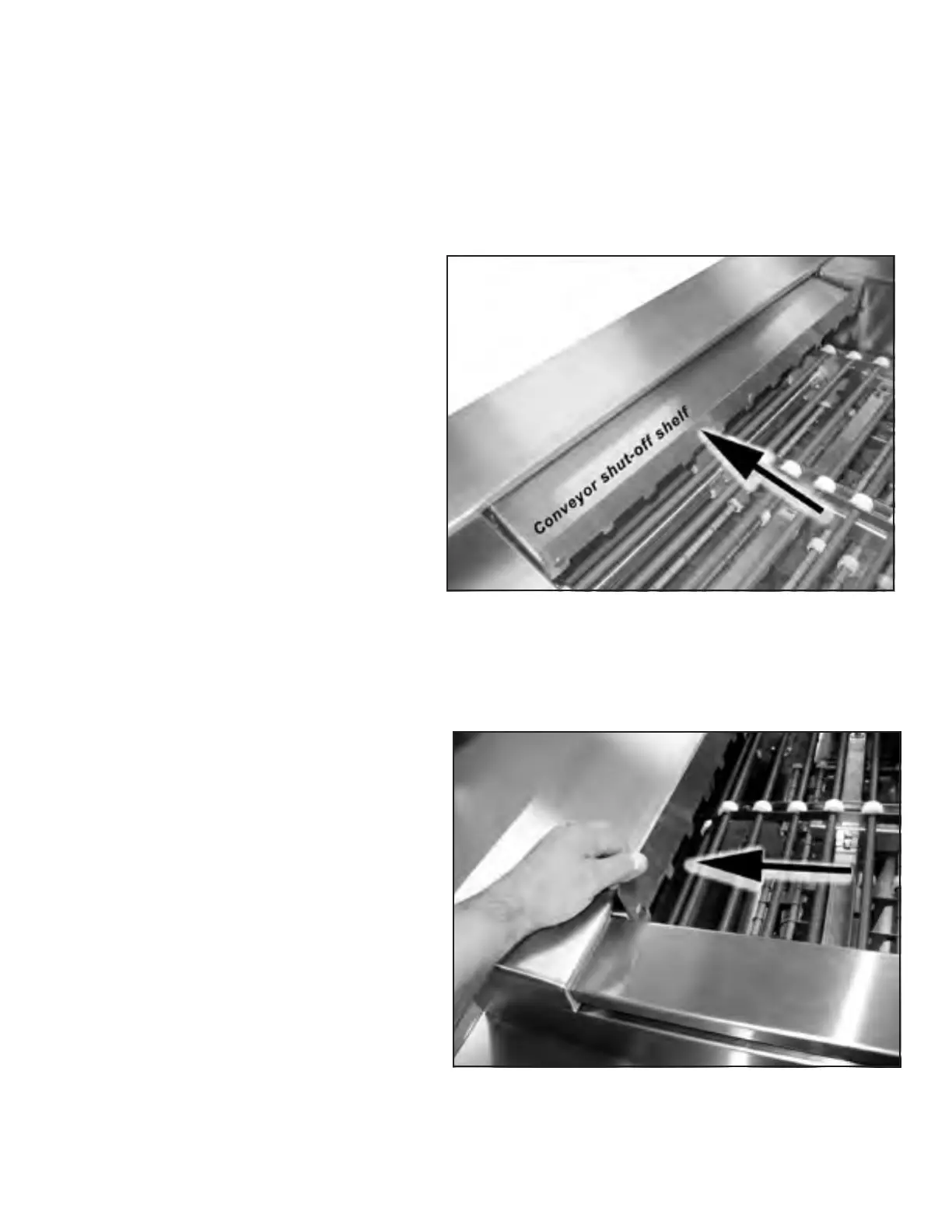

Shut-off shelf in the RUN position
Shut-off shelf in the STOP position
Operating Instructions
Operation
